MSA Chillgard LS - Figure 2-1. Diffusion Style Mounting Dimensions

1. Open the unit by removing the plastic screws securing the lid to the
enclosure.
2. Using #10 mounting screws or bolts (FIGURES 2-1 and 2-2),
securely mount the Chillgard LS Refrigerant Monitor to a wall or
flat mounting surface via the four holes that run through the
enclosure base.
3. When applying an external sample line to the pumped unit, use the
fittings provided at the bottom of the enclosure. Do not place any
restriction on the exhaust port located on the right side of the
enclosure. Do not place greater than 30 feet of tubing on the
exhaust port located on the bottom right of the enclosure.
4. Reinstall the cover to the unit.

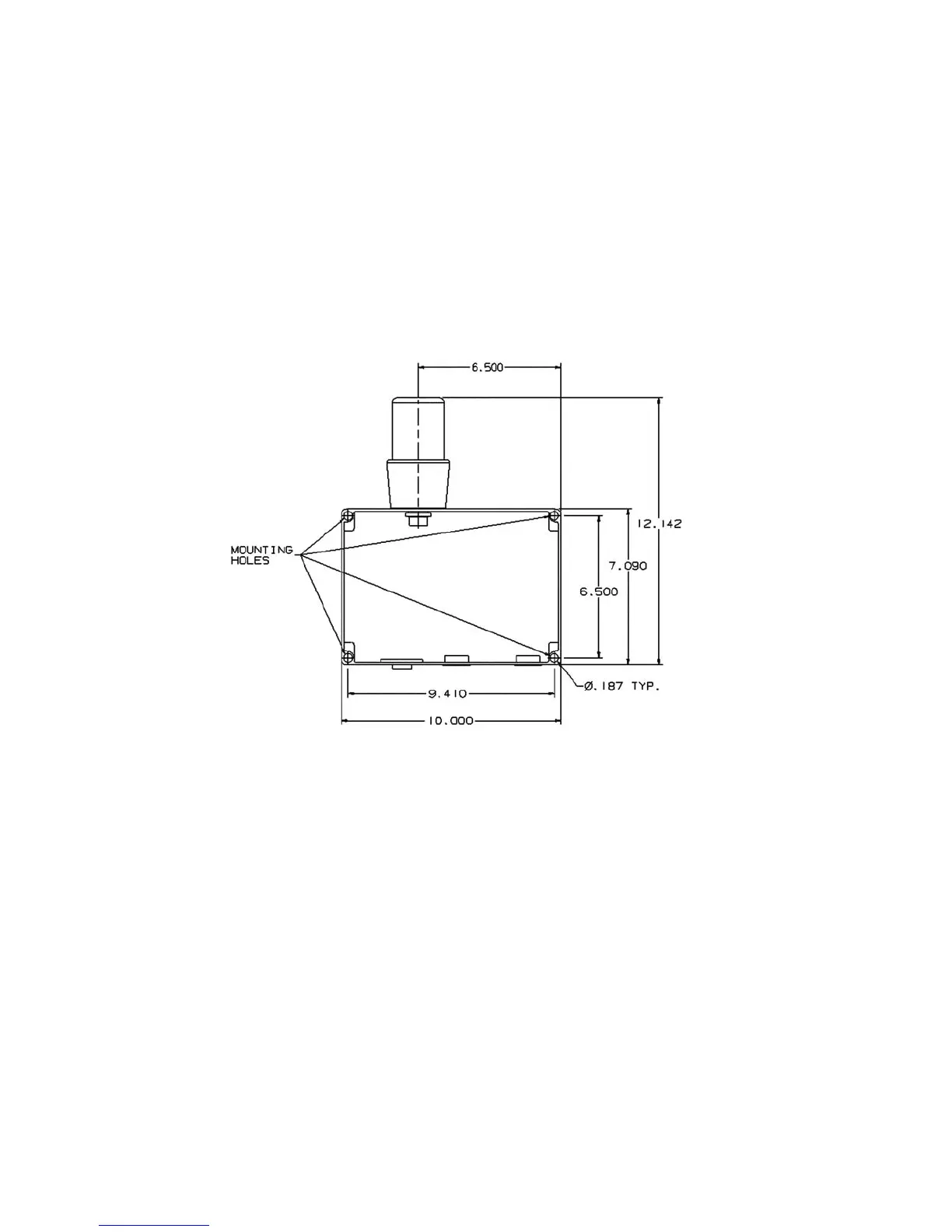

Figure 2-1. Diffusion Style Mounting Dimensions
2-4
