MSA Chillgard LS - For 24 V DC or AC Wiring; For 110;220 VAC Wiring

For 24 V DC or AC Wiring
NOTE: The 24-volt power source used with this equipment must be
separated from mains by double or reinforced insulation.
All power wiring is connected to the terminal block for 24 V DC/AC input
shown in FIGURE 2-5.
For 110/220 VAC Wiring
All power wiring is connected to the two-position terminal block shown
in FIGURES 2-3 or 2-4.
2. Connect the "HOT" AC wire to the terminal with the black wire (or
brown wire for instruments with a line filter).
3. Connect the "NEUTRAL" AC wire to the terminal with the white
wire (or blue wire for instruments with a line filter).

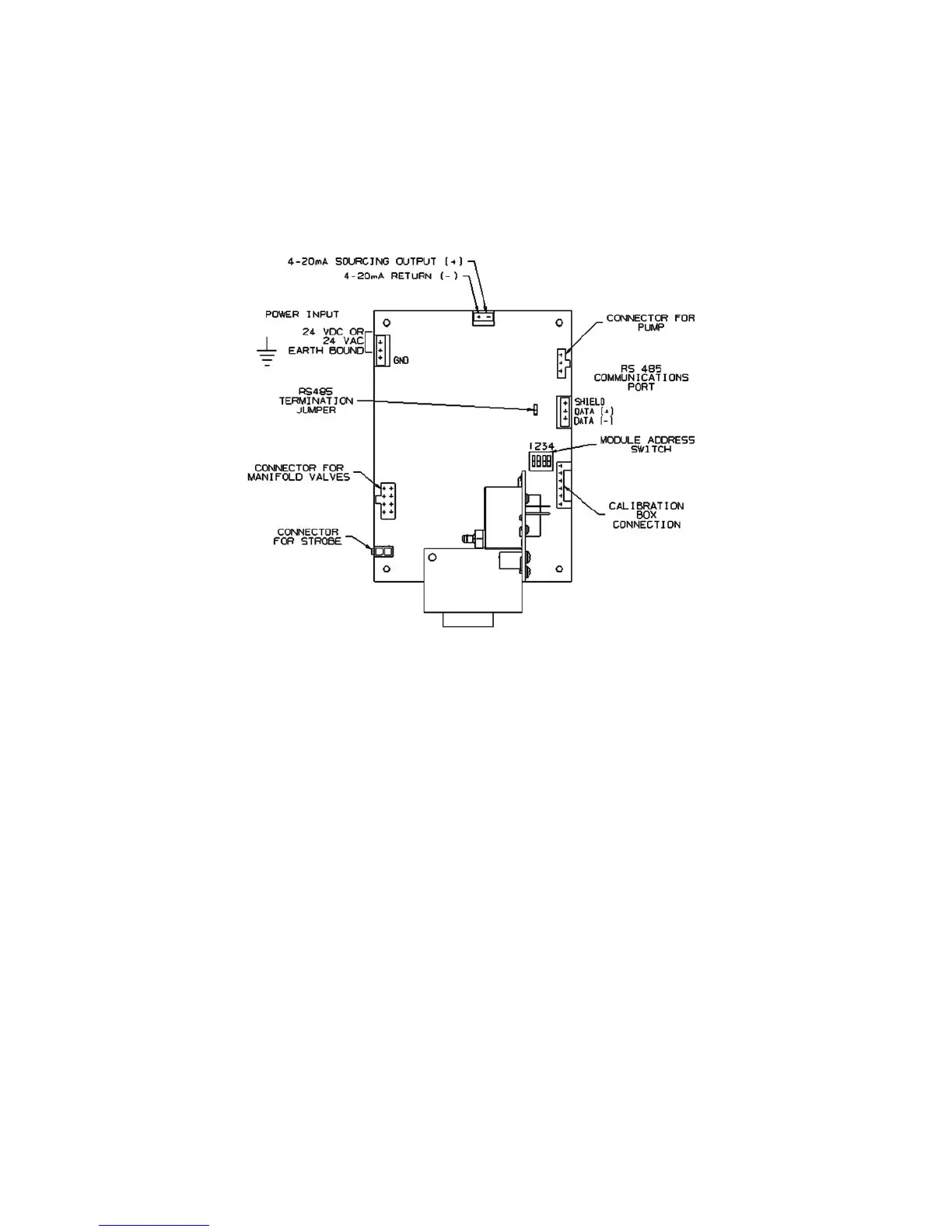

Figure 2-5. Sensor Board Connections
2-8
