3 Installation
The device should be installed where gas leaks are expected. The installation
position depends on the gas density, either in the upper area of the room under the
ceiling for gases lighter than air or closer to the ground for gases heavier than air.
Also co
nsider how air movement may affect the ability of the device to detect as. The
display on the front of the instrument must always be clearly visible, and he view
must not be obstructed.
When preparing the assembly, make sure that the mounting arrangement
is correct for the particular device.
3.1 Mechanical Installation

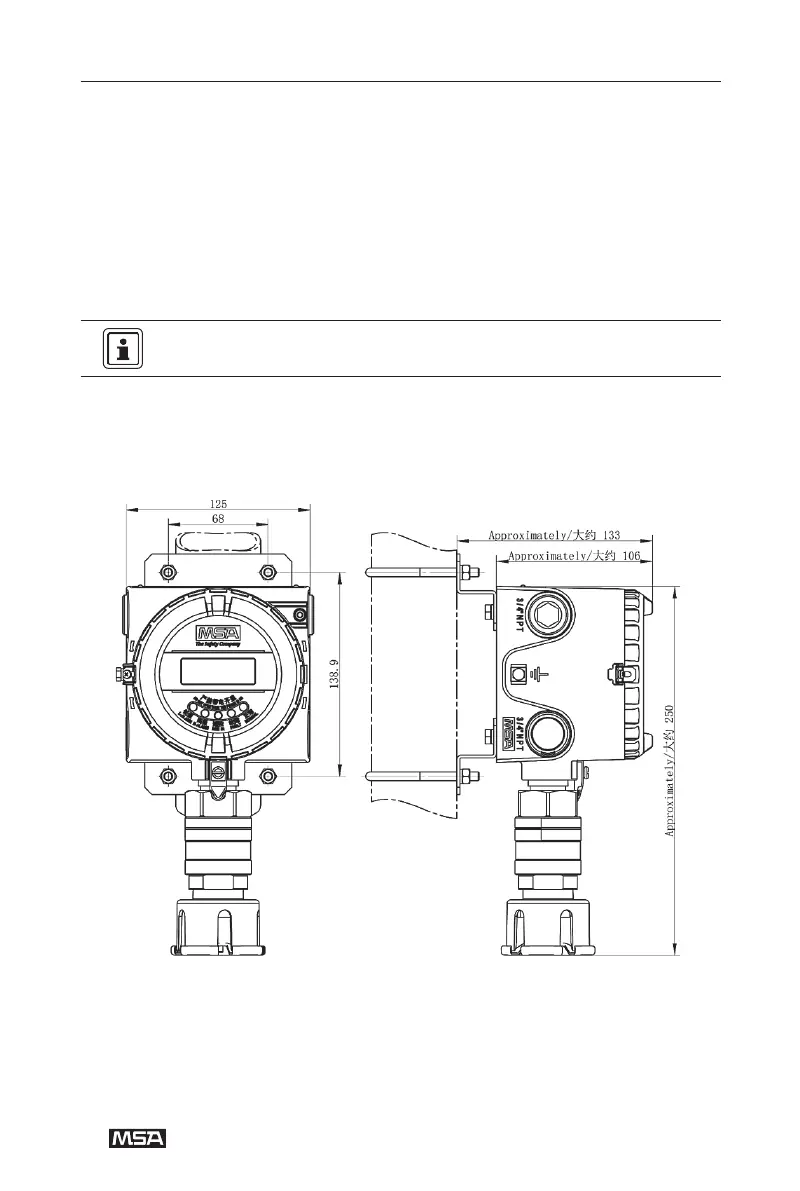

3.1.1 Dimensions Diagram(Unit: mm)
Figure.3 DF-8500 Dimension Diagram
