9.2 Mechanical Drawings – ProtoCessor

NOTE:The diameter of the circular holes in the board are 125.984 mil (3.2 mm).

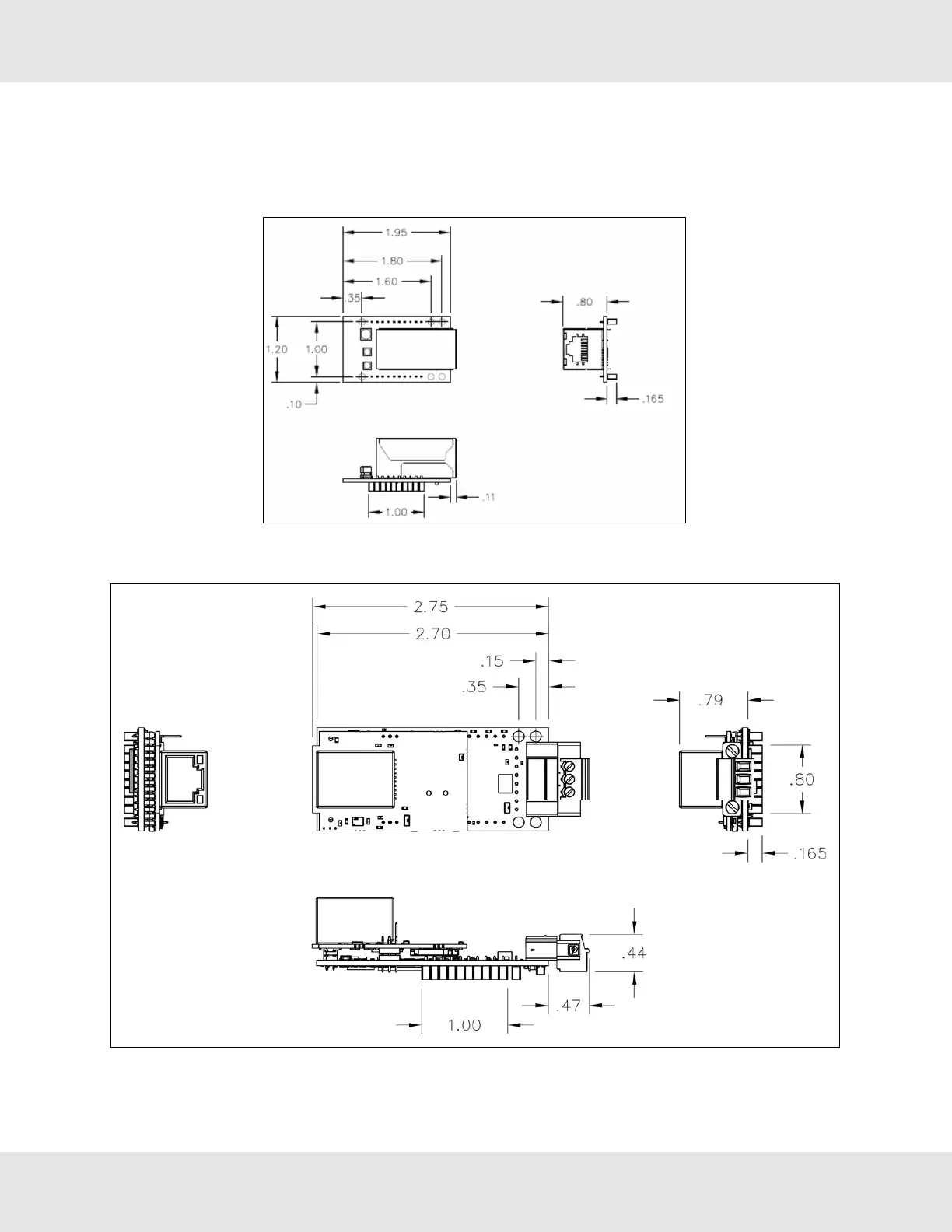

9.2.1 Mechanical Dimension Drawing FPC-E03

9.2.2 Mechanical Dimension Drawing FPC-ED2
