MSA ProtoCessor FPC-ED2 - Protocessor Family of Modules; Protocessor (FPC-ED2); Protocessor (FPC-ED4); Protocessor (FPC-E03)

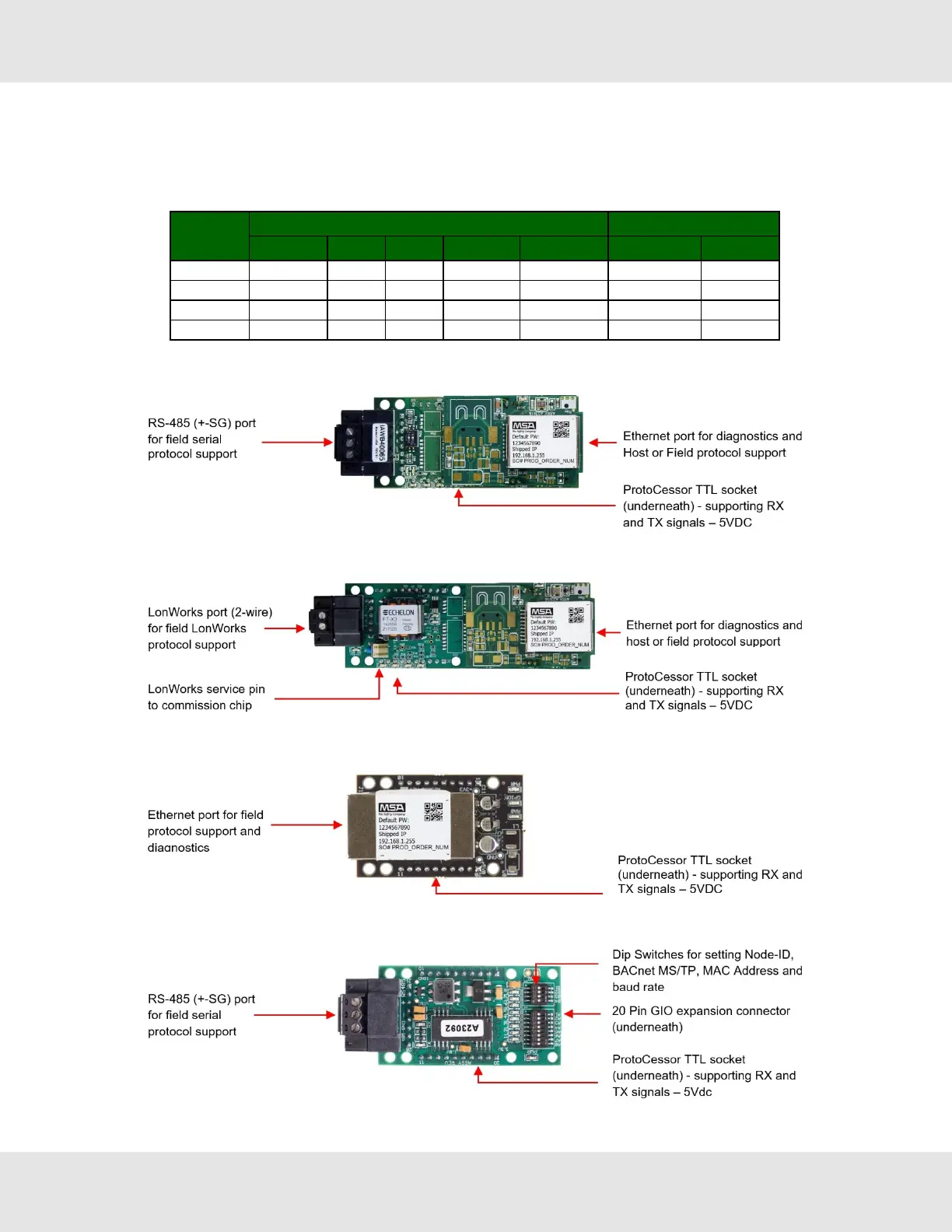

1.2 ProtoCessor Family of Modules
Full Function ProtoCessor and Application Specific ProtoCessor (ASP): These modules are designed on the OEM’s
controller by implementing a ProtoCessor serial TTL socket (3.3VDC to 5VDC). See voltage ranges in Section 3.1.2
ProtoCessor Pin Voltage Levels.
Ordering
Name
Interface Connections Certifications
Serial TTL RS-485 RS-422 Ethernet LonWorks BACnet BTL LonMark
FPC-ED2 1 1 1 Yes
FPC-ED4 1 1 1 Yes Yes
FPC-E03 1 1 Yes
FPC-AD2 1 1
1.2.1 ProtoCessor (FPC-ED2)
1.2.2 ProtoCessor (FPC-ED4)
1.2.3 ProtoCessor (FPC-E03)
1.2.4 ProtoCessor (FPC-AD2)
ProtoCessor Design Guide 6
