2. Description
2.1. Apparatus Overview

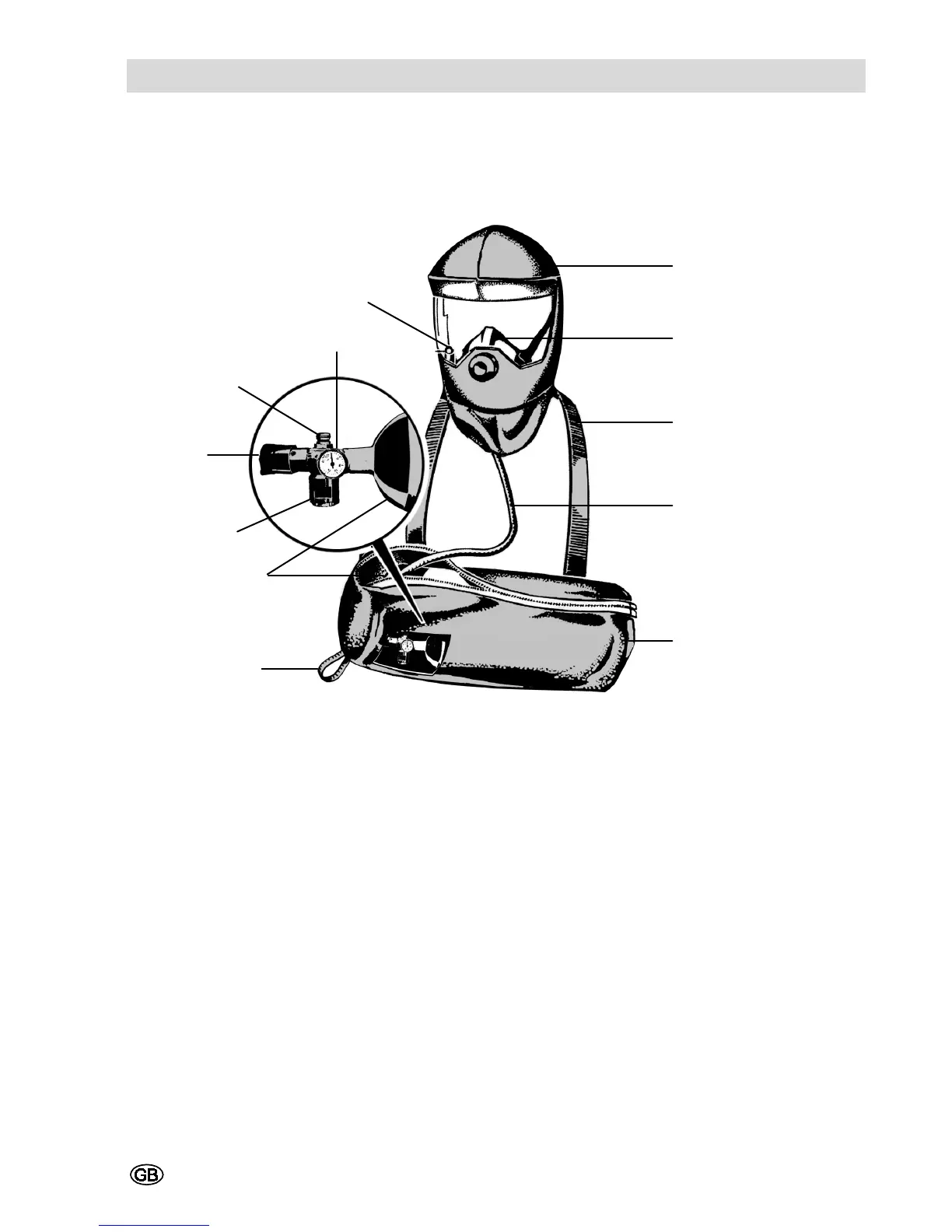

Fig. 1 Apparatus Overview S-Cap-Air
1 Hood (signal yellow) 7 Compressed air cylinder
2 Inner mask with exhalation valve 8 Filling connection with red protection cap
3 Neck strap (black) 9 Valve with valve cap and start-up pin
4 Medium pressure line 10 Breathing tube connector
5 Carry bag with inspection window 11 Air pressure indicator
6 Thumb loop (yellow) 12 Warning indicator in the hood
The S-Cap-Air consists of a hood which is connected to a compressed air
cylinder via a medium pressure line. It is stored ready for operation in its carry
bag and is started automatically when the bag is opened.
Compressed air cylinder and bag
The unit is supplied either with a full or an empty compressed air cylinder, as
requested by the customer, and it may be necessary for the customer to fill the
cylinder before first deployment (see enclosed leaflet 10019536). The group of
components, with compressed air cylinder and valve / pressure reducer complies
with European Directive 97/23/ EC.
The air cylinder is strapped into the carry bag and the air pressure indicator can
