Digital Sensor with Frit (Fine Threads) Digital Sensor without Frit (Coarse
Threads)
Ex tb IIIC T85°C Db
ATEX/IECEx/INMETRO Hazardous Locations
(Sira 17ATEX1048X, Sira 17ATEX4052X,
IECEx SIR 17.0016X, NCC 18.0097 X)
Ex db IIC T5 Gb
Ex db nA IIC T5 Gc
Ex tb IIIC T85°C Db
IP65
ATEX/IECEx/INMETRO Hazardous Locations
(Sira 17ATEX4052X, IECEx SIR 17.0016X,
NCC 18.0097 X)
Ex nA IIC T5 Gc
IP55
WARNING!
Some toxic gases are provided in a fritless sensor housing. The fritless sensor housing is labeled as Div 2 or Zone 2 and is
approved for Div 2 or Zone 2 installations only. The protection method is Nonincendive or Type n respectively. Ensure all
components are approved for the wiring method being used and in accordance with the National Electric Code of the country of
use, any applicable local regulations, and this manual.
Failure to follow this warning can result in serious personal injury or death.

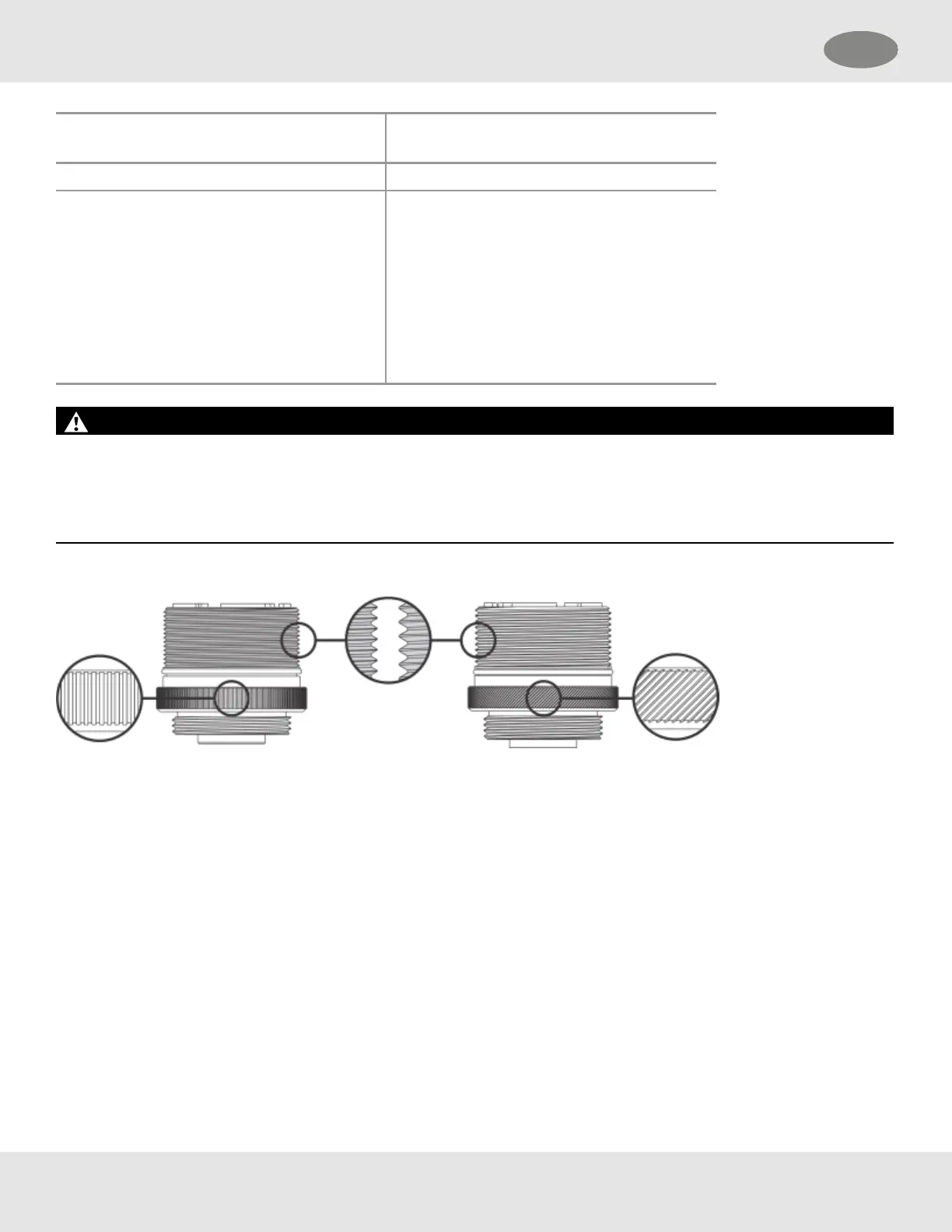

Figure 37 Digital Sensor for Div1 &2, Zone1 &2 (Left) vs Digital Sensor for Div2, Zone2 only (right)
IR Sensor
See the applicable IRSensor Instruction Manual (IR400 Sensor: P/N MANIR400; IR700 Sensor: P/N MANIR700), or
certificates Sira 07ATEX1253 and IECEx SIR 07.0080.
Passive Sensors
See certificates Sira 00ATEX1039U and IECExSIR07.0007U.
FMApproval
This approval does not include or imply approval of apparatus to which the subject instrument may be connected. In order to
maintain an FM Approved system, the apparatus to which this instrument is connected, must also be approved by FM
Approvals. As part of this approval, it was verified that optional communication functions of this gas detection instrument while
operating at the maximum transaction rate do not adversely affect the gas detection operation and functions of the instrument.
This approval, however, does not include or imply approval of the communications protocol or functions provided by the
software of this instrument or of the communications apparatus or software connected to this instrument.
The S5000 Transmitter, S5000 Junction Box, JB5000, Digital Sensors (H2S, 500 ppm H2S, CO, O2), and Passive MOS H2S
sensors also have FM Performance Approval for use in ordinary (nonhazardous) or hazardous locations.
93
