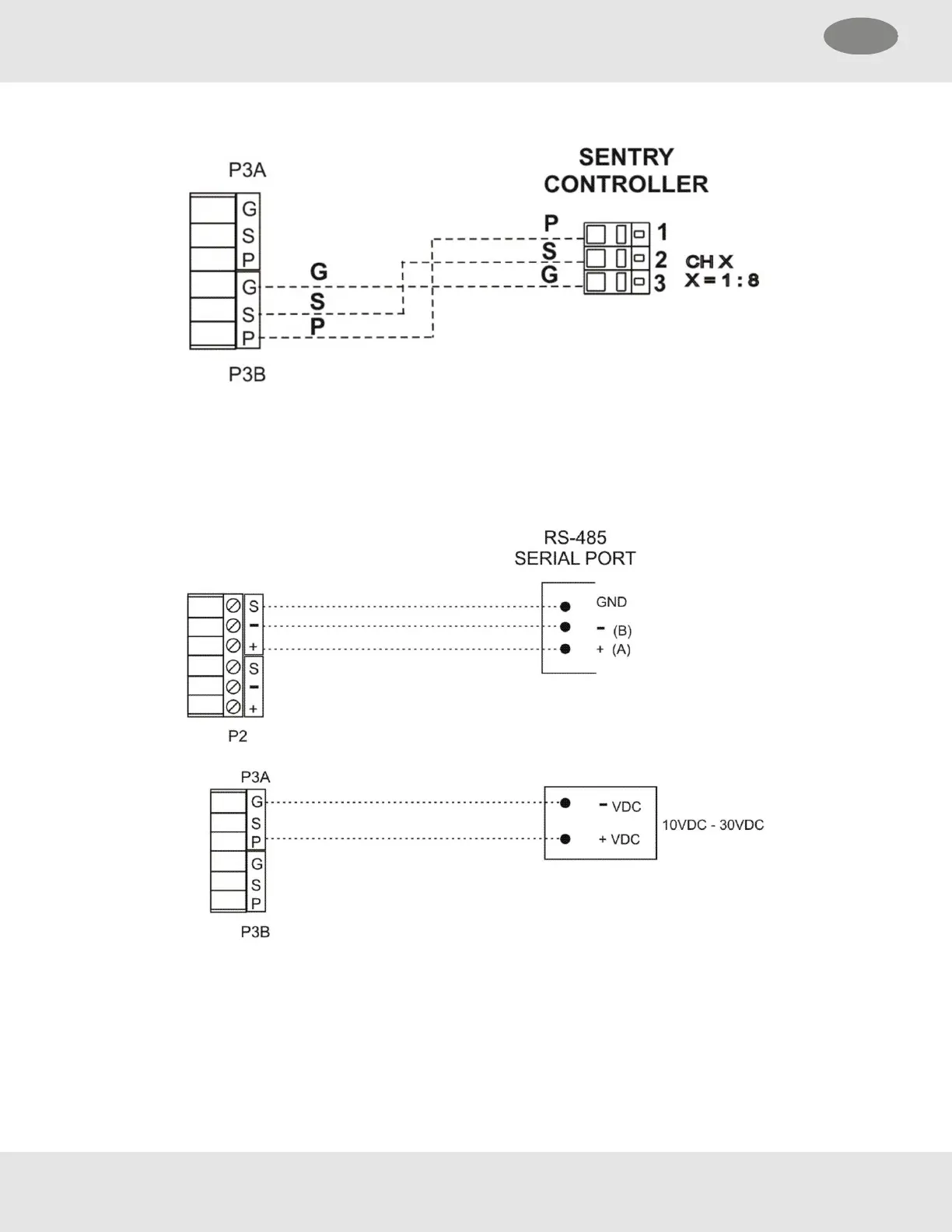

Wiring Connections for Modbus and Sentry Interface
5100-XX-IT TO SENTRY
(dry contact only unpowered)
5100-XX-IT TO MODBUS DEVICE
22 SMC 5100-XX-IT Toxic Gas Detector Module
4 Installation US
