2-16
MS-6585 ATX Mainboard
+

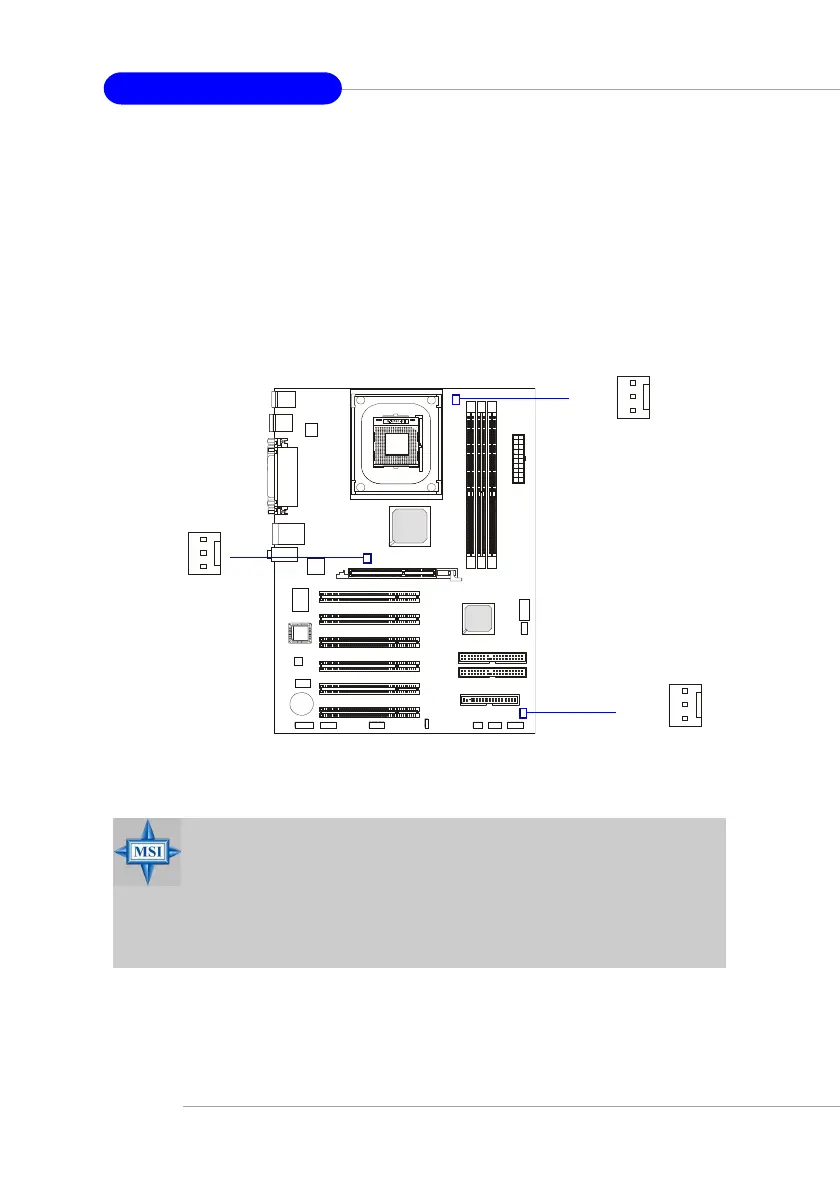

Fan Power Connectors: CPUFAN/SYSFAN/NBFAN
The CPUFAN (processor fan), NBFAN (NorthBridge fan) and SYSFAN
(system fan) support system cooling fan with +12V. It supports three-pin head
connector. When connecting the wire to the connectors, always take note that
the red wire is the positive and should be connected to the +12V, the black wire
is Ground and should be connected to GND. If the mainboard has a System
Hardware Monitor chipset on-board, you must use a specially designed fan
with speed sensor to take advantage of the CPU fan control.
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. CPUFAN supports the fan control. You can install the Core
Center utility that will automatically control the CPU fan speed
according to the actual CPU temperature.
SYSFAN
SENSOR
+12V
GND
CPUFAN
SENSOR
+12V
GND
NBFAN
SENSOR
+12V
GND
To Next Page
