1-12
MS-6585 ATX Mainboard
+
Color Management
MSI has an unified color management rule for some connectors on the
mainboards, which helps you to install the memory modules, expansion cards
and other peripherals devices more easily and conveniently.
h Memory DDR DIMMs: light green
h IDE ATA133 connector: yellow
h AGP 8X slot: red
h USB 2.0 connector shared with Bluetooth bracket: blue
h Front panel connector JFP1 : HDD LED in red, Reset Switch in blue,
Power Switch in black, Power LED in light green.
h Front panel connector JFP2: Power LED in light green.

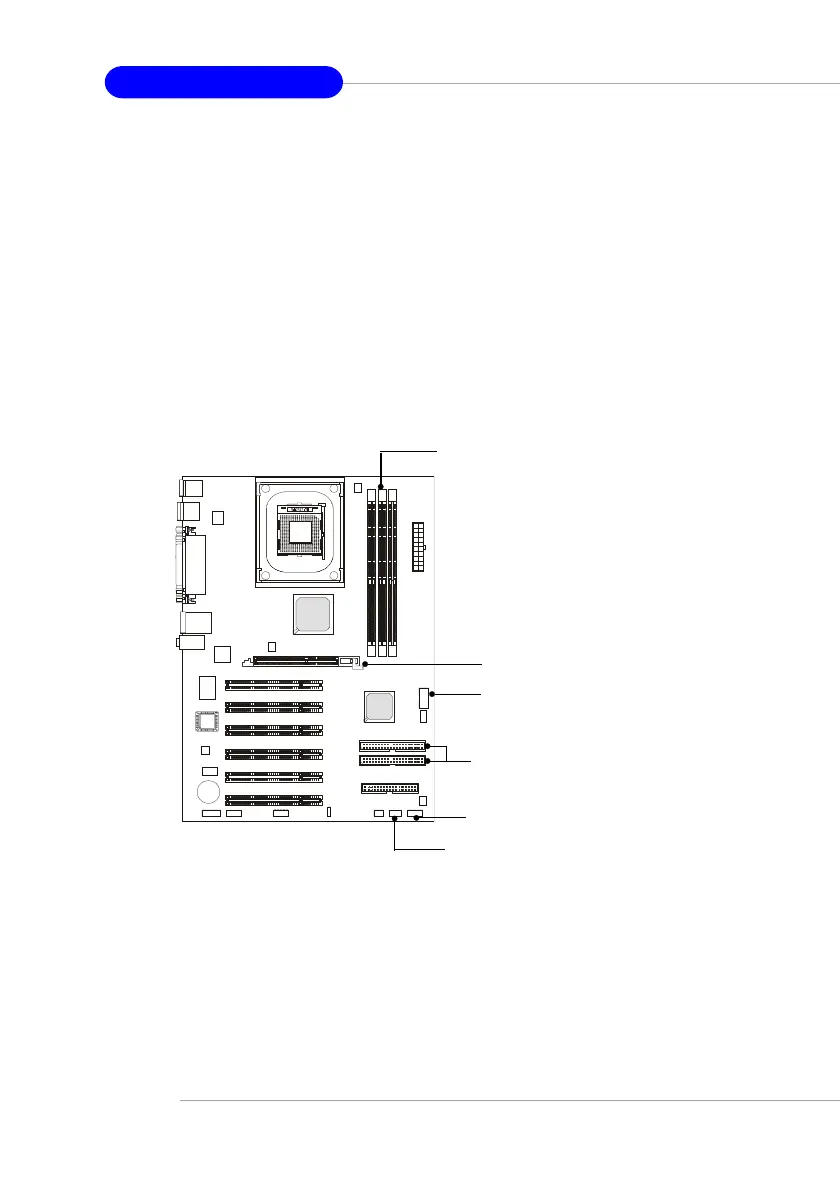

Memory DDR DIMMs
Front Panel connector JFP2
USB 2.0 connector shared with
Bluetooth bracket
AGP 8X Slot
IDE ATA133 connectors
Front Panel connector JFP1
