2-22
MS-6585 ATX Mainboard
+

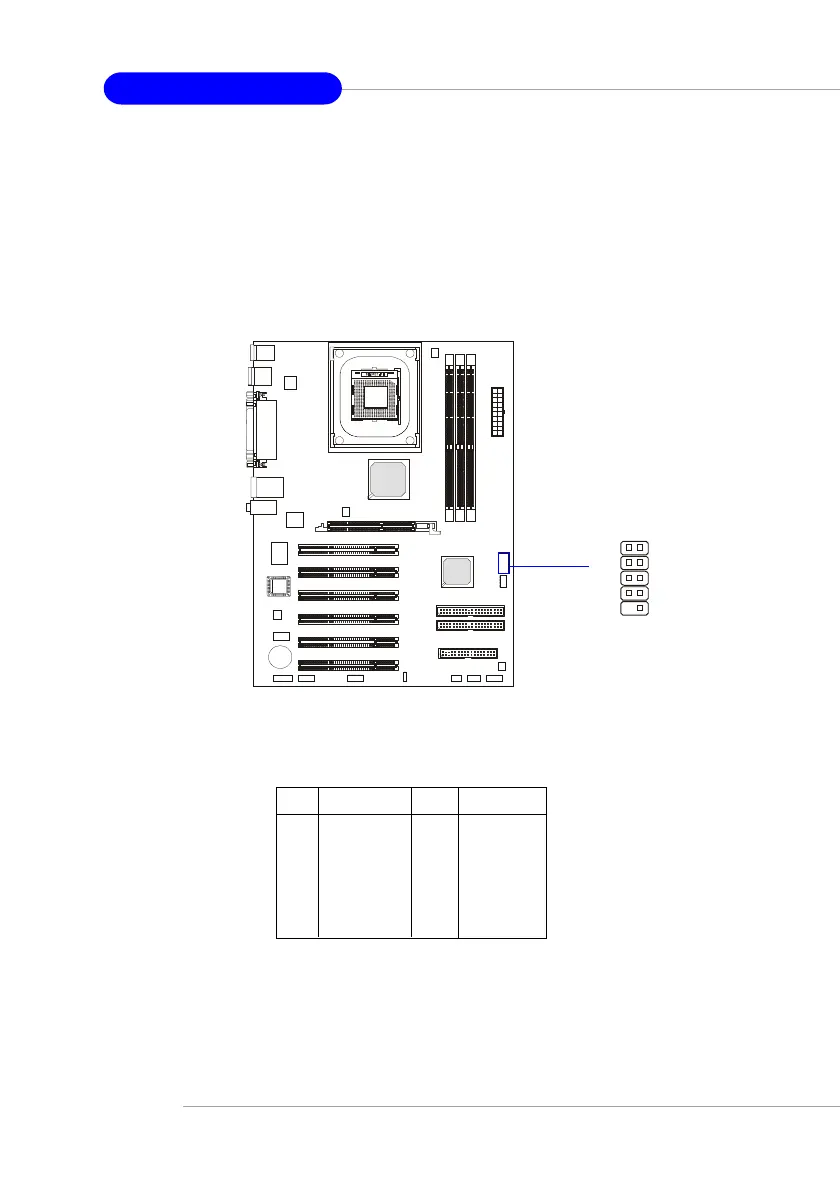

Front USB Connector: JUSB2
The mainboard provides one USB 2.0 pin headers JUSB2 that is compliant
with Intel
®
I/O Connectivity Design Guide. USB 2.0 technology increases data
transfer rate up to a maximum throughput of 480Mbps, which is 40 times faster
than USB 1.1, and is ideal for connecting high-speed USB interface peripherals
such as USB HDD, digital cameras, MP3 players, printers, modems and the
like.
JUSB2
(USB 2.0/Intel spec)
1
9
2
10
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key 10 USBOC
JUSB2 Pin Definition
