MSI MEG Z790 ACE - JDASH1: Tuning Controller Connector; W_FLOW1: Water Flow Meter Connector

44

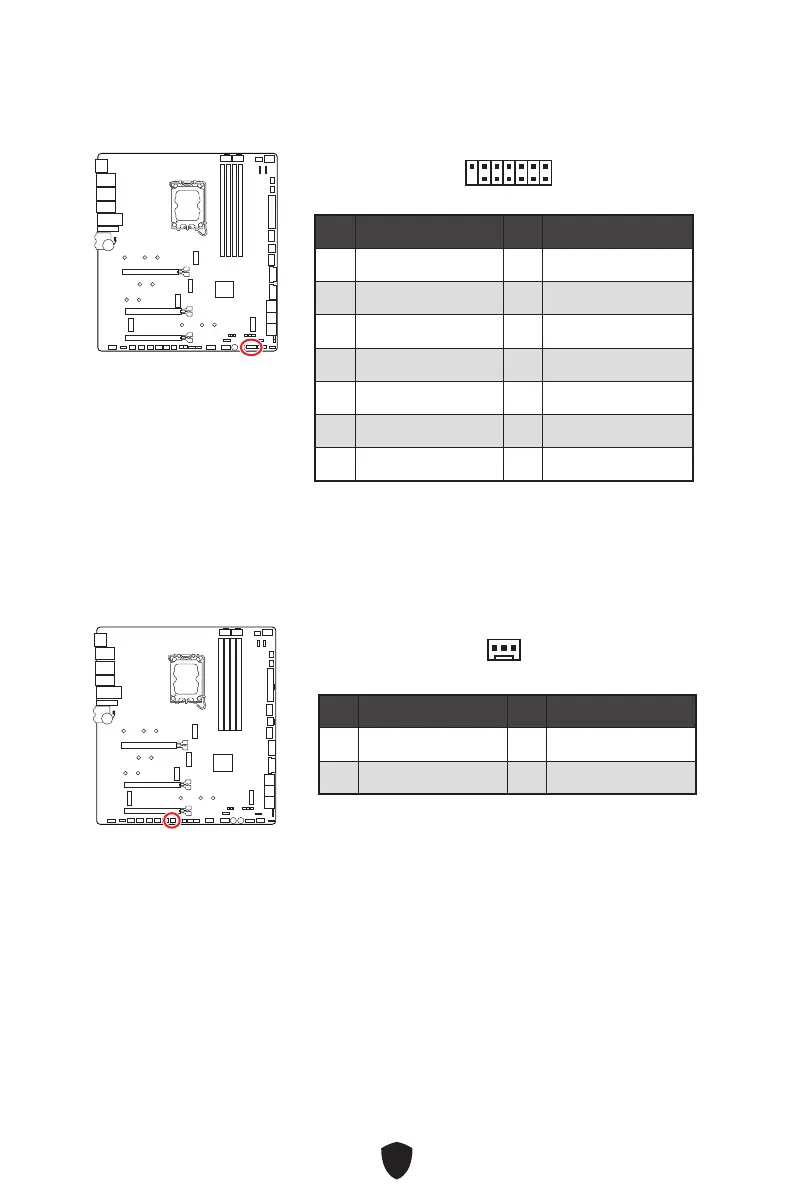

JDASH1: Tuning Controller Connector
This connector is used to connect an optional Tuning Controller module.
1
2 14
13
Pin Signal Name Pin Signal Name
1 No Pin 2 NC
3 MCU_SMB_SCL_M 4 MCU_SMB_SDA_M
5 VCC5 6 Ground
7 PSIN#_R 8 FP_RST#_R
9 OC_RETRY# 10 OC_FS
11 BLK+ 12 BLK-
13 CLRCMOS_EN 14 NC
Pin Signal Name Pin Signal Name
1 Ground 2 WFLOW PWR
3 WFLOW IN
W_FLOW1: Water Flow Meter Connector
This connector allows you to connect a water flow meter to monitor the flow rate of
your liquid cooling system.
