46
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.
To achieve USB PD 60W fast charging for JUSB6, the PD_PWR1 connector needs to
be connected to the power supply unit.

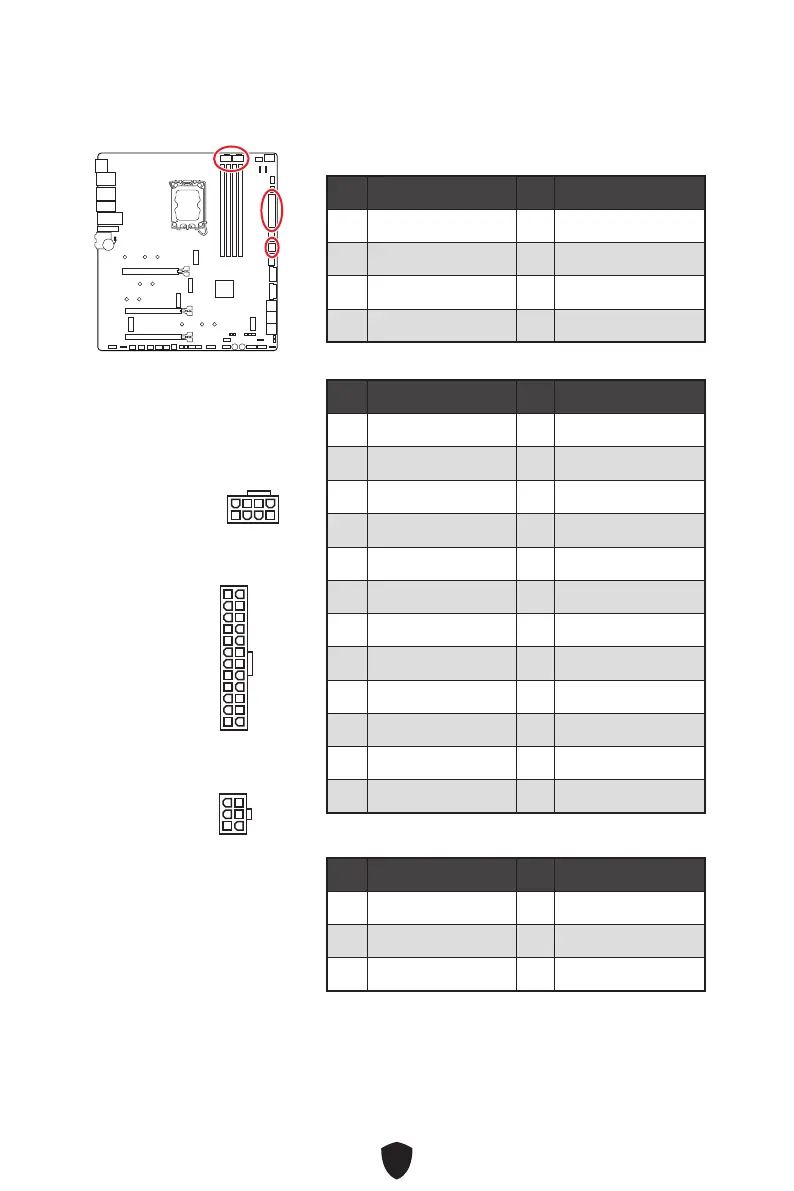

CPU_PWR1~2, ATX_PWR1, PD_PWR1: Power Connectors
These connectors allow you to connect an ATX power supply.
CPU_PWR1~2
Pin Signal Name Pin Signal Name
1 Ground 2 Ground
3 Ground 4 Ground
5 +12V 6 +12V
7 +12V 8 +12V
ATX_PWR1
Pin Signal Name Pin Signal Name
1 +3.3V 2 +3.3V
3 Ground 4 +5V
5 Ground 6 +5V
7 Ground 8 PWR OK
9 5VSB 10 +12V
11 +12V 12 +3.3V
13 +3.3V 14 -12V
15 Ground 16 PS-ON#
17 Ground 18 Ground
19 Ground 20 Res
21 +5V 22 +5V
23 +5V 24 Ground
5
4 1
8
CPU_PWR1~2
24
131
12
ATX_PWR1
PD_PWR1
Pin Signal Name Pin Signal Name
1 +12v 2 +12v
3 +12v 4 Ground
5 Ground 6 Ground
PD_PWR1
1 4
3 6
To Next Page
