7
Chapter 2. Getting Started

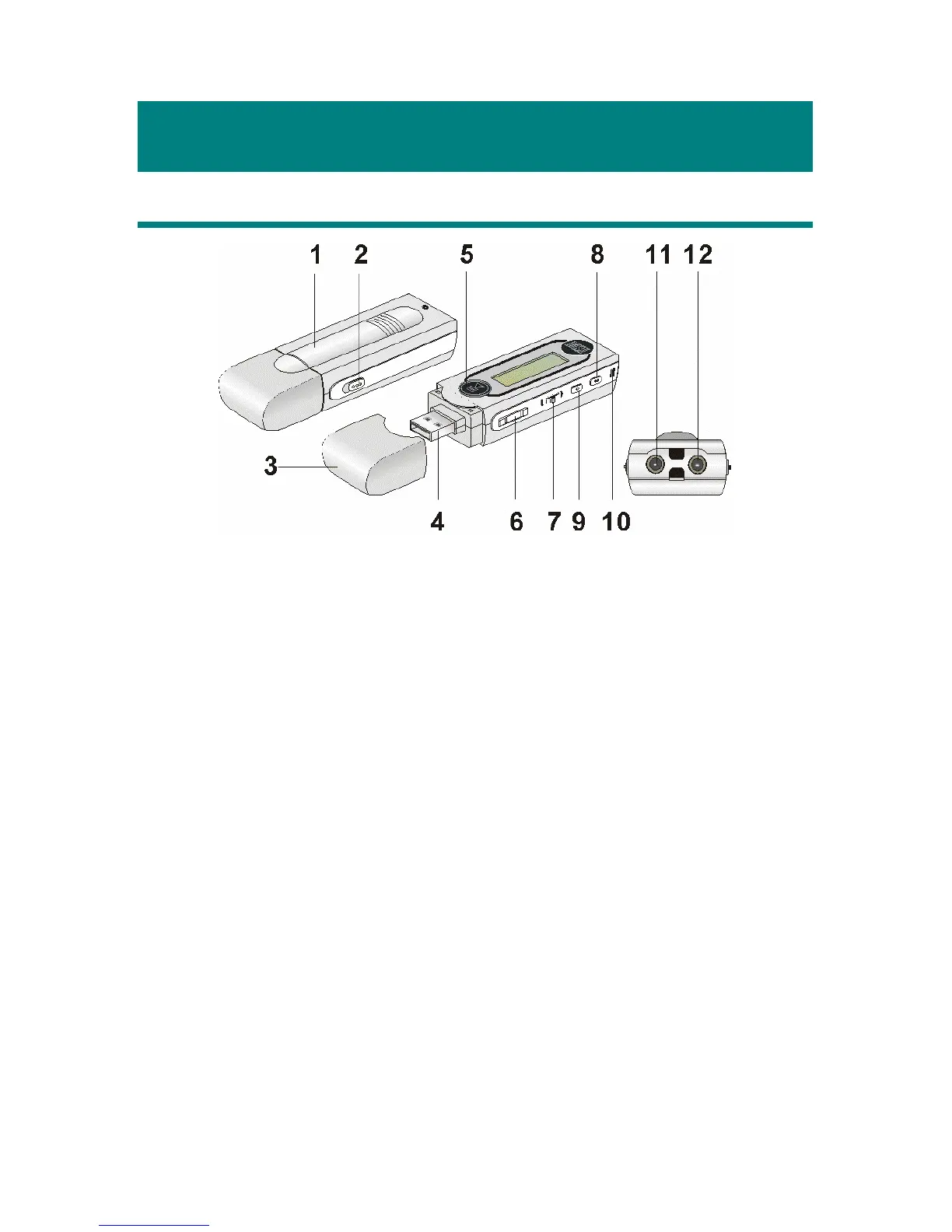

Function Keys
1. Battery Cover Slide open to insert an AAA size battery here.
2. Hold Switch Switch to hold position to prevent the button
from being pushed inadvertently while
recording or playing.
3. USB Connector Cap Remove the cap when connecting the MEGA
STICK 511 to the computer.
4. USB Connector Connect one end of the supplied USB
extension cable here.
5. Power On/Off Press and hold to power on/ off MEGA STICK
511.
Play/Pause In music playback mode, press to play or pause
the playback. In FM mode, press to select the
stored favorite stations one by one.
6. Volume+/- Press +/- button to increase / decrease volume.
7. MENU Press down the button or push it to the right or
to the left to make various adjustment.
