MSI MS-5148 - Memory Installation

CHAPTER 2 HARDWARE INSTALLATION

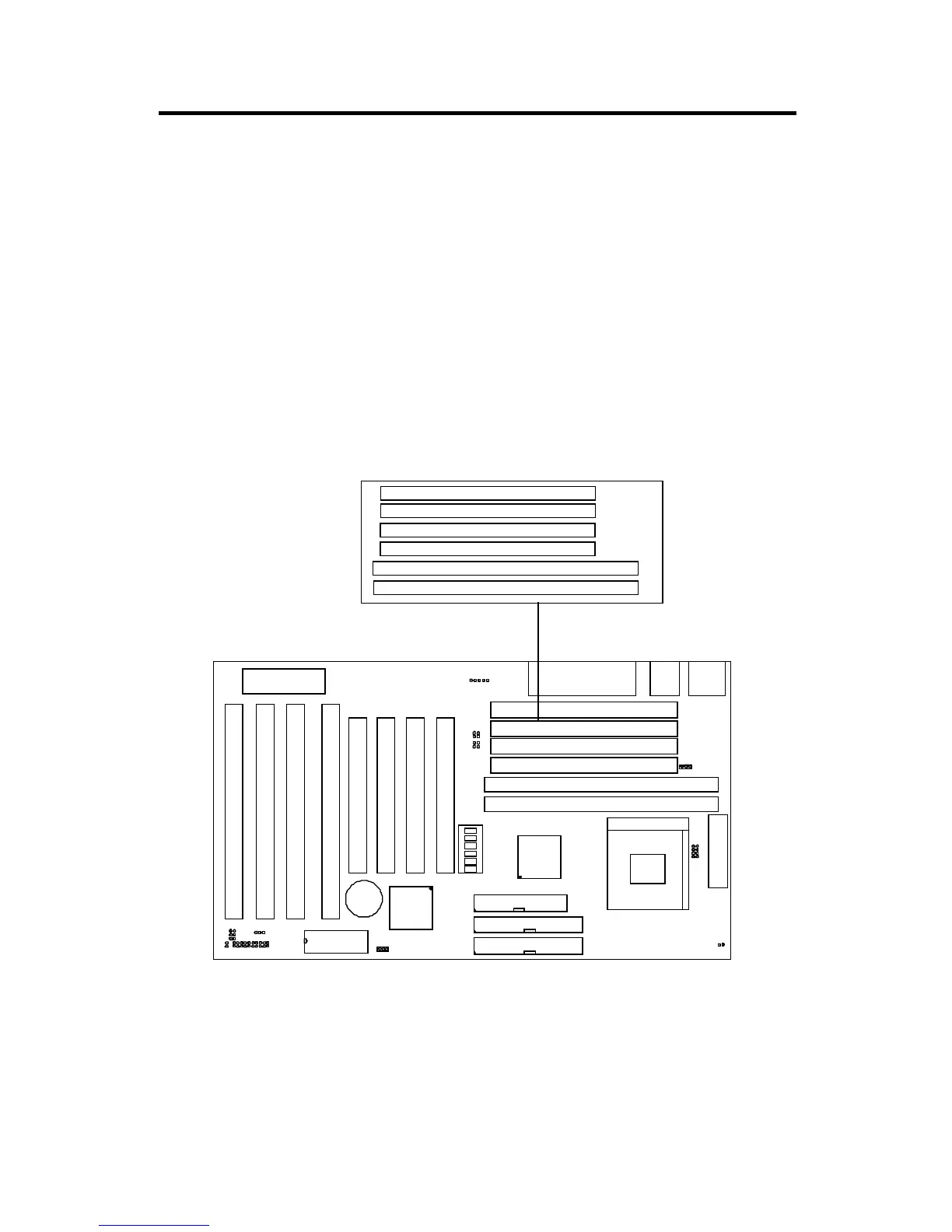

SIMM1(Bank 0)
SIMM2(Bank 0)
SIMM3(Bank 1)
SIMM4(Bank 1)
2-12
SIMM1
SIMM2
SIMM3
SIMM4
DIMM1
DIMM2
Socket 7
FDD
IDE1
IDE2
ISA SLOT 4
ISA SLOT 2
ISA SLOT 3
ISA SLOT 1
PCI SLOT 4
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
BIOS
BATT
+
2032
JPF
JGS
JGL
JP2
INTEL
FW82371AB
INTEL
FW82439TX
JBAT
JRMS2
JFAN
ATX
POWER CONNECTOR
KBC
IR
JV1
LPT
COMA & COMB
USB
PS/2
JV3
JV4
JV5
SW
ON
DIP
1
2
1
3
4
1
5
6
JV6
JRMS1
+
DIMM1(Bank 2)
DIMM2 (Bank 3)
2.5 Memory Installation
2.5-1 Memory Bank Configuration
The system board provides four 72-pin SIMMs (Single In-Line Memory Mod-
ule) and two 168-pin DIMM(Double In-Line Memory) sockets, supports a
maximum of 256MB of memory. You can use SIMM from 4MB, 8MB, 16MB,
32MB, 64MB or 128MB. And DIMM from 8MB, 16MB, 32MB, 64MB, 128MB,
or 256MB. A Bank consist of 2 SIMM socket or One DIMM socket. It also
consist of 2 RAS, each RAS supports memory up to 128MB.This board sup-
port 6 RAS.
