CHAPTER 2 HARDWARE INSTALLATION
2.5-2 Memory Installation Procedures:
1. The SIMM slot has a “Plastic Safety
Tab” and the SIMM memory module
has a “Notched End”, so the SIMM
memory module can only fit in one
direction.
2. Insert the SIMM memory modules into
the socket at 45-degree angle, then
push into a vertical position so that it
will snap into place.
3. The Mounting Holes and Metal Clips
should fit over the edge and hold the
SIMM memory modules in place.

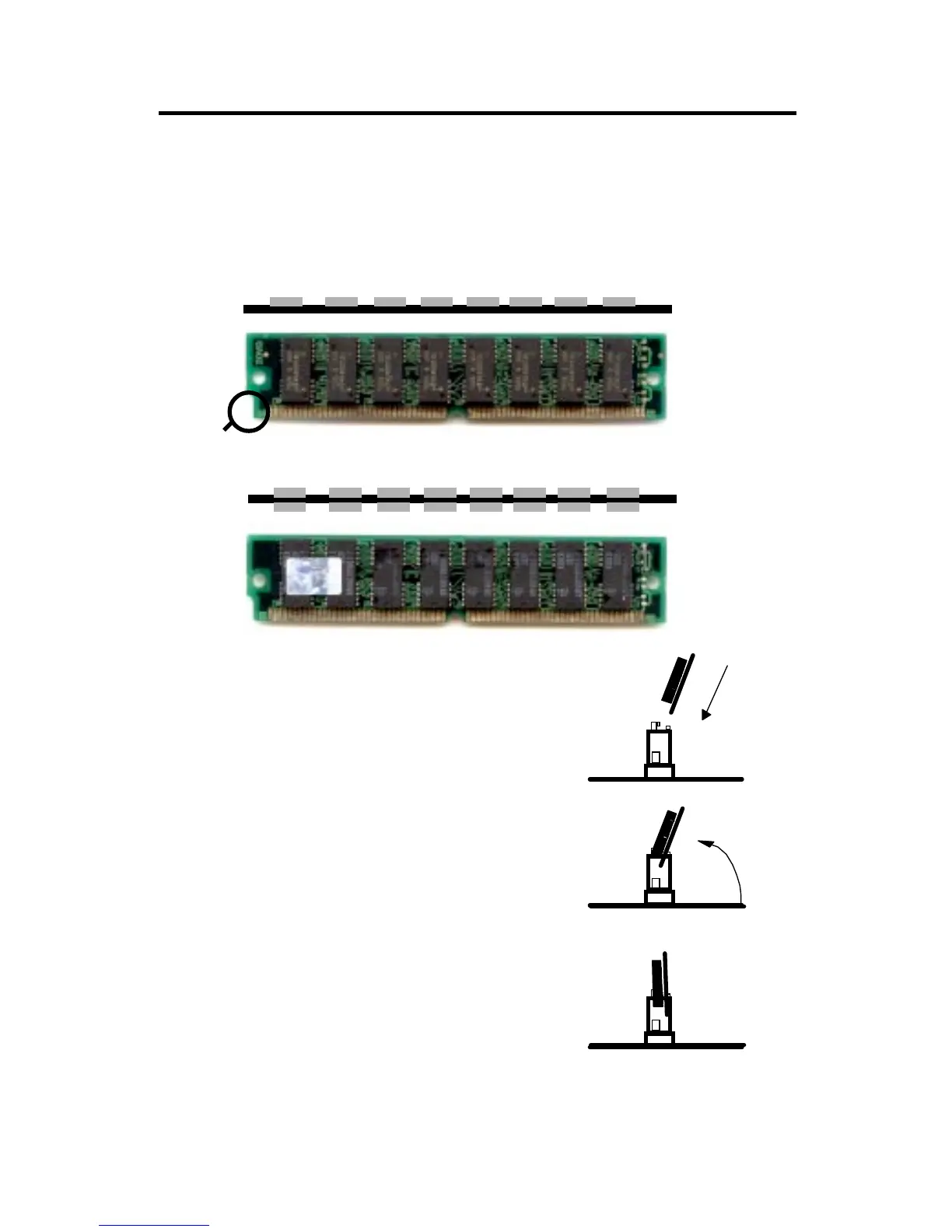

A. How to install a SIMM Module
Single Sided SIMM
Double Sided SIMM
Notched
End
2-13
