MS-7520 Mainboard

C-4

(1) Create RAID Volume

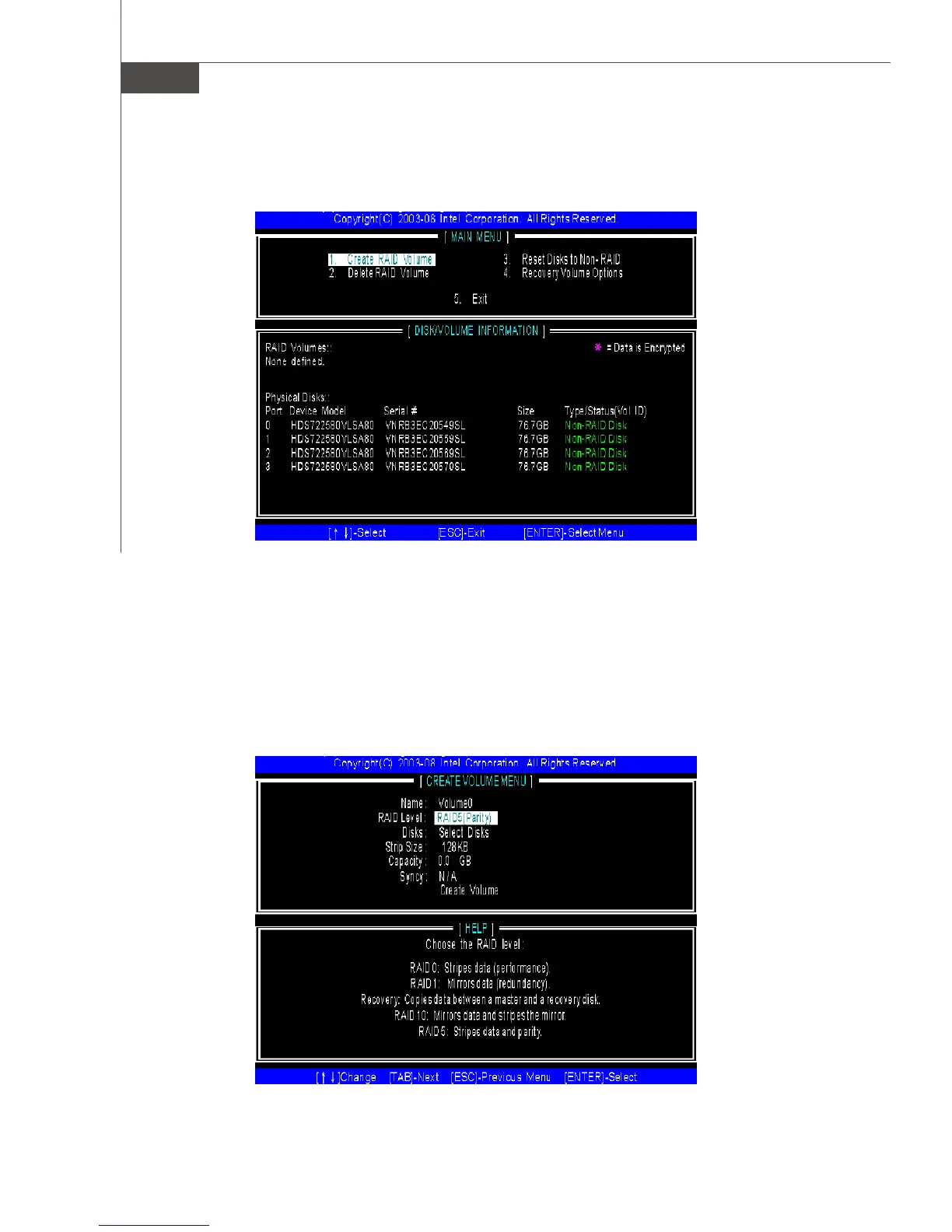

1. Select option 1 “Create RAID Volume” and press <Enter> key. The following

screen appears. Then in the Name field, specify a RAID Volume name and

then press the <TAB> or <Enter> key to go to the next field.

2. Use the arrow keys to select the RAID level best suited to your usage model

in RAID Level.

After pressing the <Ctrl> and <I> keys simultaneously, the following window will

appear:
