MSI MS-7520 ECLIPSE Series User Manual

MS-7520 Mainboard
2-26

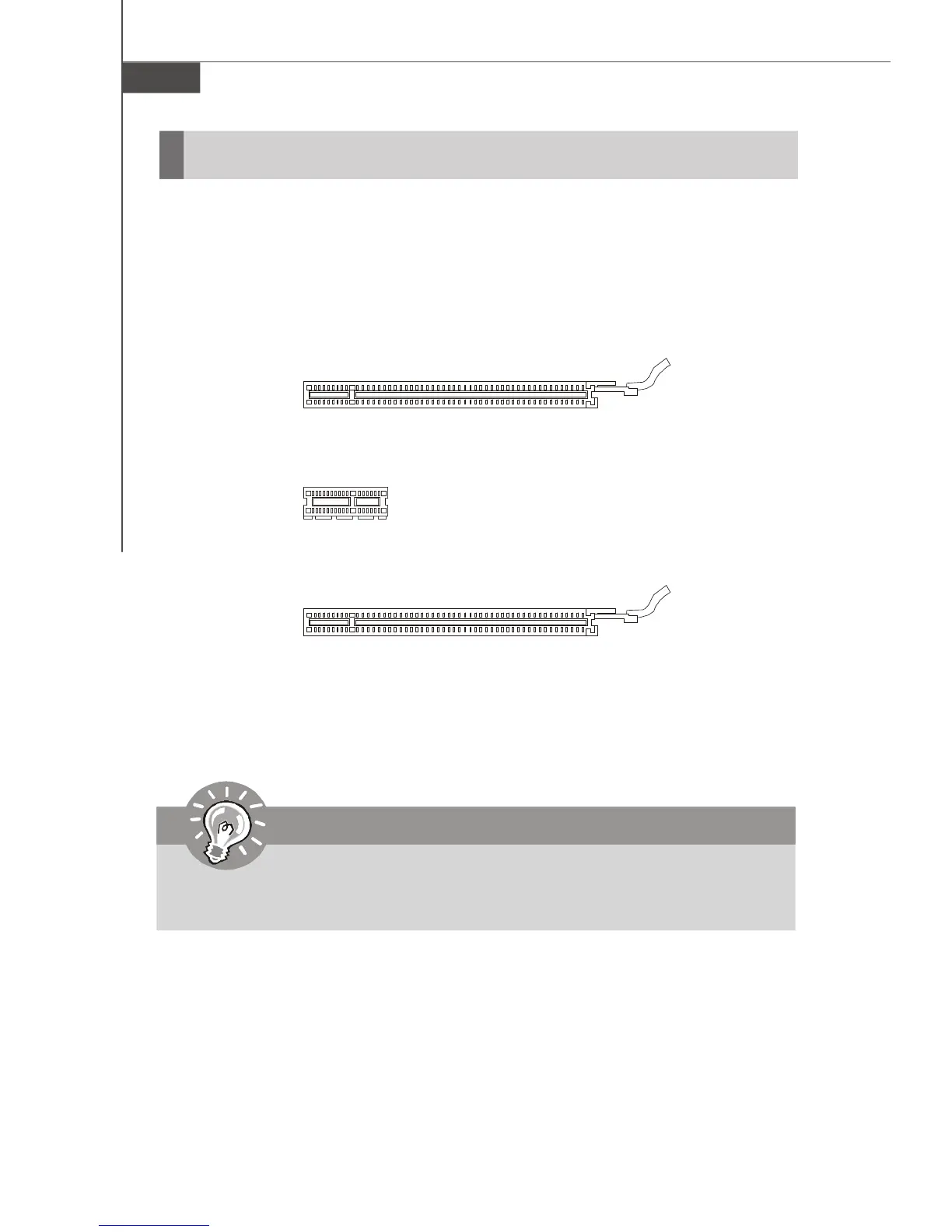

PCI (Peripheral Component Interconnect) Express Slot
The PCI Express slot supports the PCI Express interface expansion card.
The PCI Express 2.0 x16 supports up to 8.0 GB/s transfer rate.
The PCI Express 2.0 x4 supports up to 2.0 GB/s transfer rate.
The PCI Express x1 supports up to 250 MB/s transfer rate.
Slots
Black PCI Express x16 Slots support up to
PCI Express 2.0 x16 speed (PCI_E2 & PCI_E4)
PCI Express x1 Slots supports up to
PCI Express x1 speed (PCI_E1 & PCI_E3)
Blue PCI Express x 16 Slot supports up to
PCI Express 2.0 x4 speed (PCI_E5)
Important
The mainboard supports ATI CrossFireX
TM
technology with two Black PCIEx16
slots and 3-way CrossFireX
TM
with all the three PCIE x16 slots.
