MSI MS-7520 ECLIPSE Series User Manual

MS-7520 Mainboard
2-18

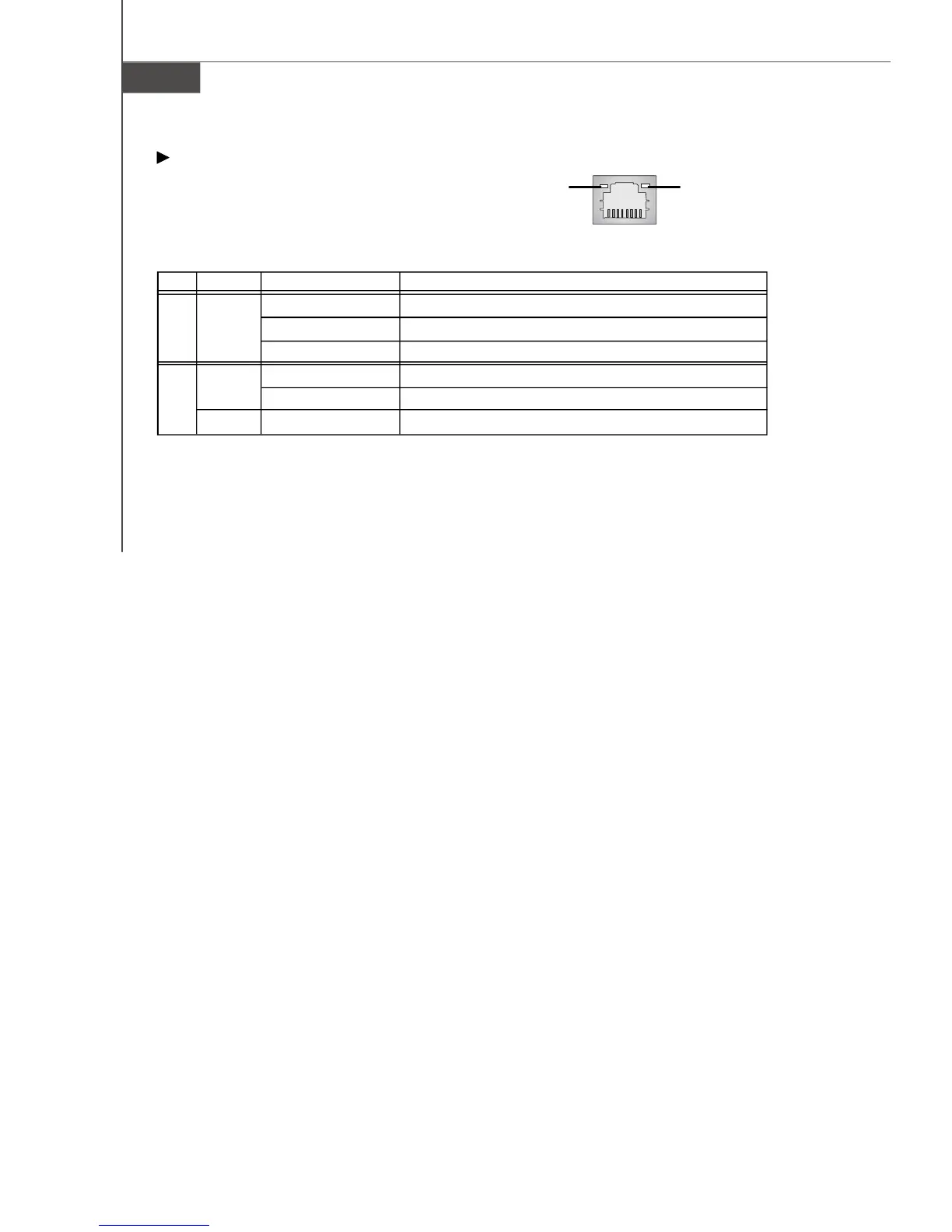

LAN
The standard RJ-45 LAN jack is for connection
to the Local Area Network (LAN). You can con-
nect a network cable to it.
LED Color LED State Condition
Off LAN link is not established.
Left Yellow On (steady state) LAN link is established.
On (brighter & pulsing)The computer is communicating with another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
Right On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
Green / OrangeYellow
