MSI RX480 Neo2 MS-7151 User Manual

A-13
Using 2-, 4-, 6- or 8- Channel Audio Function

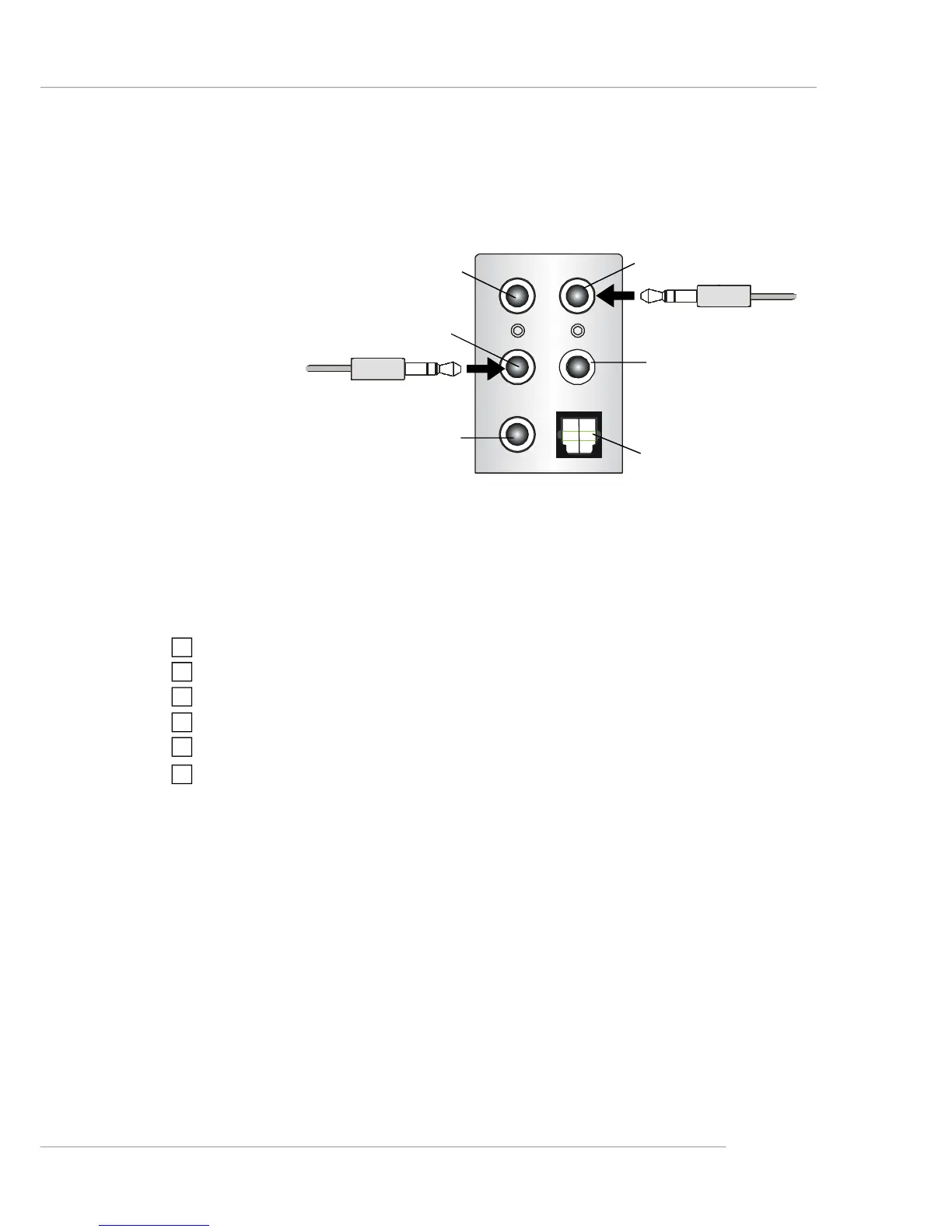

n 4-Channel Mode for 4-Speaker Output
Description:
Connect two speakers to back
panel’s Line Out connector and
two speakers to the real-chan-
nel Line Out connector.
3
1
2
6
4
5
1 Line In
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear channels)
5 Line Out (Center and Subwoofer channel, but no functioning in this mode)
6 Optical SPDIF jack
4-Channel Analog Audio Output

MSI RX480 Neo2 MS-7151 Specifications

General

Model	RX480 Neo2 MS-7151
Socket	Socket 939
Memory Type	DDR
Maximum Memory Supported	4GB
PCI-E x16 Slots	1
IDE	2 x ATA 133
Form Factor	ATX
Memory Slots	4
SATA	4
PCI Slots	3
