MSI RX480 Neo2 MS-7151 User Manual

A-14
MS-7151 ATX Mainboard
n 6-Channel Mode for 6-Speaker Output
Description:
Connect two speakers to back
panel’s Line Out connector, two
speakers to the rear-channel
and two speakers to the cen-
ter/subwoofer-channel Line Out
connectors.

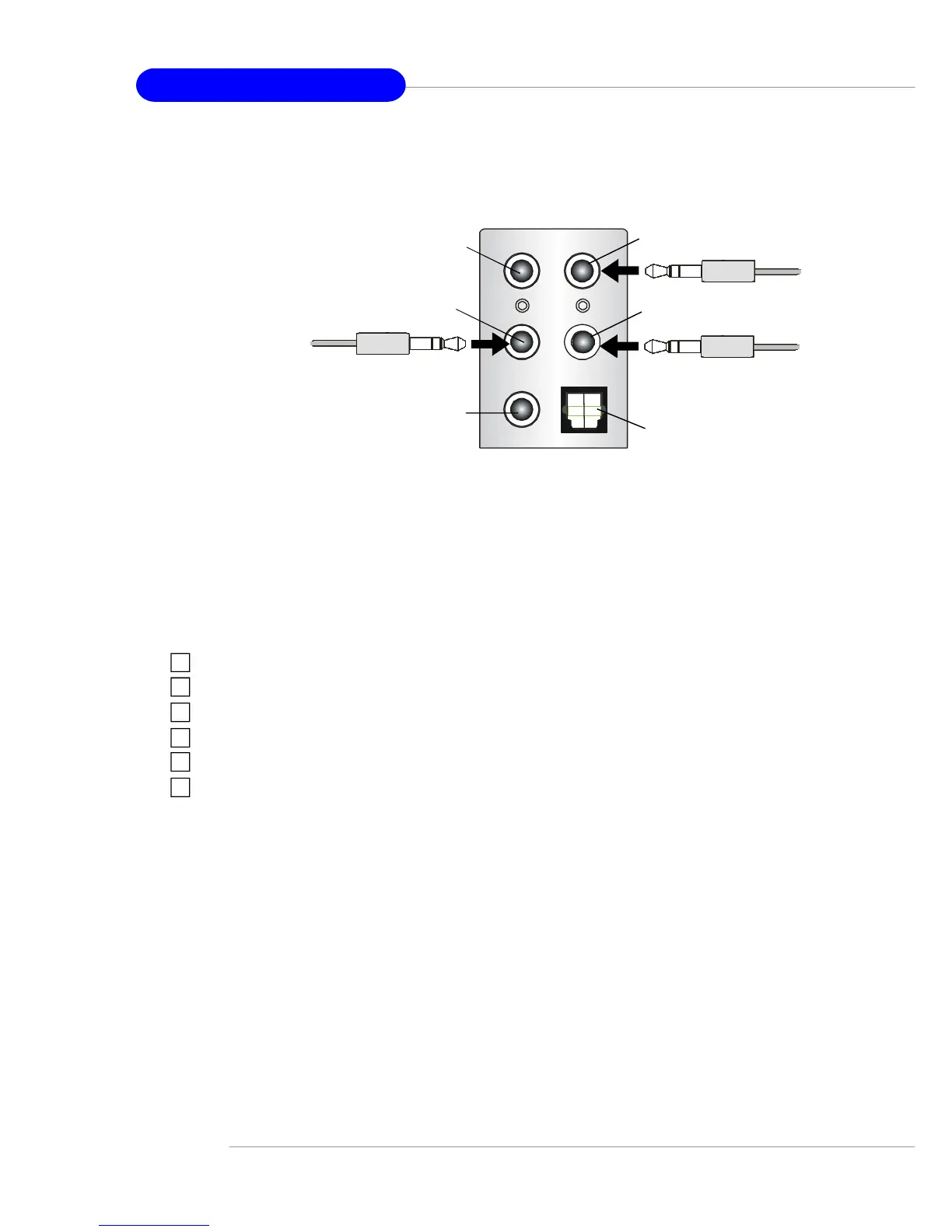

6-Channel Analog Audio Output
1 Line In
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear channels)
5 Line Out (Center and Subwoofer channel)
6 Optical SPDIF jack
1
2
6
4
5
3

MSI RX480 Neo2 MS-7151 Specifications

General

Model	RX480 Neo2 MS-7151
Socket	Socket 939
Memory Type	DDR
Maximum Memory Supported	4GB
PCI-E x16 Slots	1
IDE	2 x ATA 133
Form Factor	ATX
Memory Slots	4
SATA	4
PCI Slots	3
