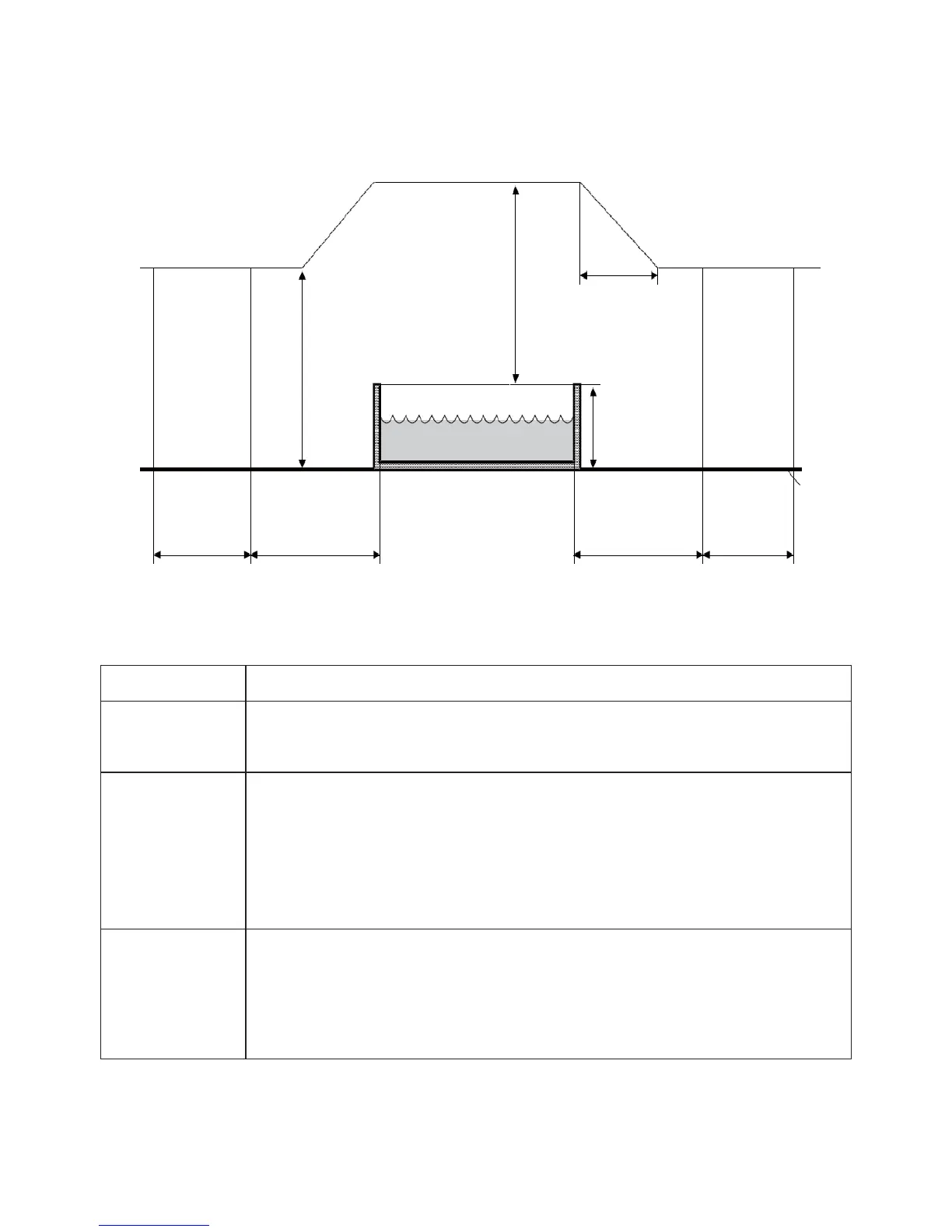

Warning: Water protection levels of appliance at different product zones are
different see the following scheme. ( Installation regulations comply to IEC
60364-7-702)
NOTE-The measured zone dimensions are limited by walls and fixed partitions.
Zones
Zone 0
Zone 1
Zone 2
Description of the zones
Zone 0 is the interion of the basin including any recesses in their
walls or floors.
Zone 1 is limited by
Zone 0
A vertical plane 2m from the rim of the basin.
The floor or the surface expected th be occupied by persons
The horizontal plane 2.5m above the floor or the surface
Zone 2 is limited by
A vertical plane external th zone 1 and parallel plane 1.5m
from the former.
By the floor or surface intended to be occupied by persons.
Zone 2 Zone 2
h
h
Zone 1
Zone 0
Zone 0
2.5 m
2.5 m
1.5 m 1.5 m2.0 m 2.0 m
