SPA SET-UP

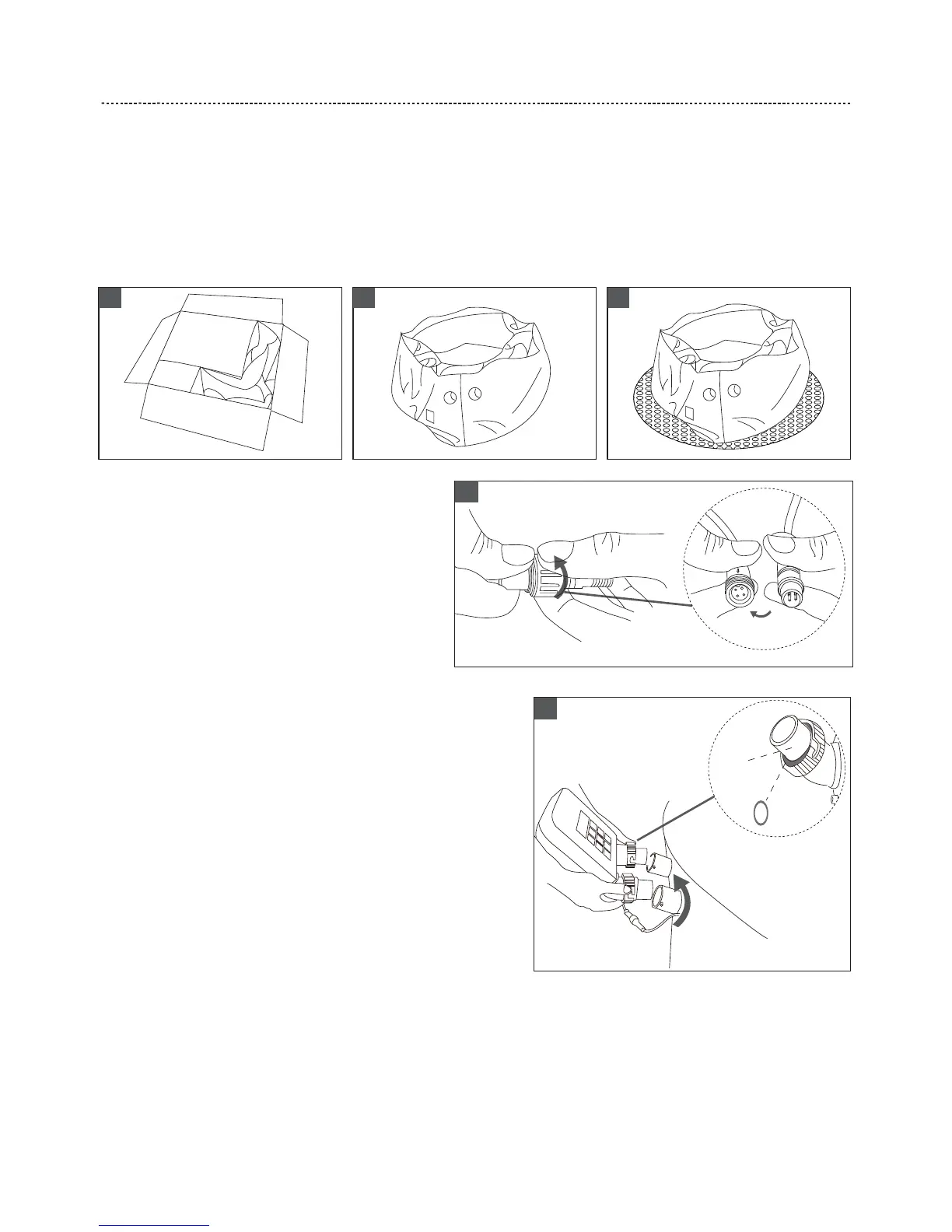

Move the entire package to the selected site. Open the carton carefully as it can be used to store the spa
during long term storage or when not in use.
Lay out all the parts on the ground and make sure all parts are accounted for. Make sure the spa tub is
right side up. (*For missing or damaged part, contact the MSpa Service Center)
Spread the Heat Preservation Ground Mat over a cleared area. Spread out the spa liner over the ground
mat. Heat Preservation Mat prevents heat loss from the bottom of the unit.
1.
2.
3.
1 2 3
Connect the digital cable. Find the digital
cable, loose the cap on the end, and plug
into the cable port on the control panel.
Once the cable is connected properly, the
backlight of the buttons area will light up on
the panel.
4.
4
O-rings
Air pipe
Connect the control panel to the spa tub. Fasten and
secure the rings to the pipe adapter on the spa tub.
(Fig.5) Make sure the rubber O-rings are properly placed
on the air pipes.
CAUTION: Lost of the O-rings may result spa and the
bubbling function working improperly, and also cause the
air pump rusted.
NOTE: For spa models have PVC leather covers, make
sure the spa cover is onto the spa tub properly before
connecting the control panel. The two holes on the
leather cover must be positioned correctly to the pipes of
control panel air pipes.
5.
5
6.1 Unscrew the air valve cap (a) on the control panel to reveal the air blower inflation outlet and connect
one end of the inflation hose (b) to the outlet. See Figure 6.1
6.2 Unscrew the air valve cap on the spa pool and reveal the stem for inflation.
6.3 Connect the other end of the inflation hose (b) to the manometer (c) first and then insert to the air
valve.
6.
Spa Inflation
To Next Page
