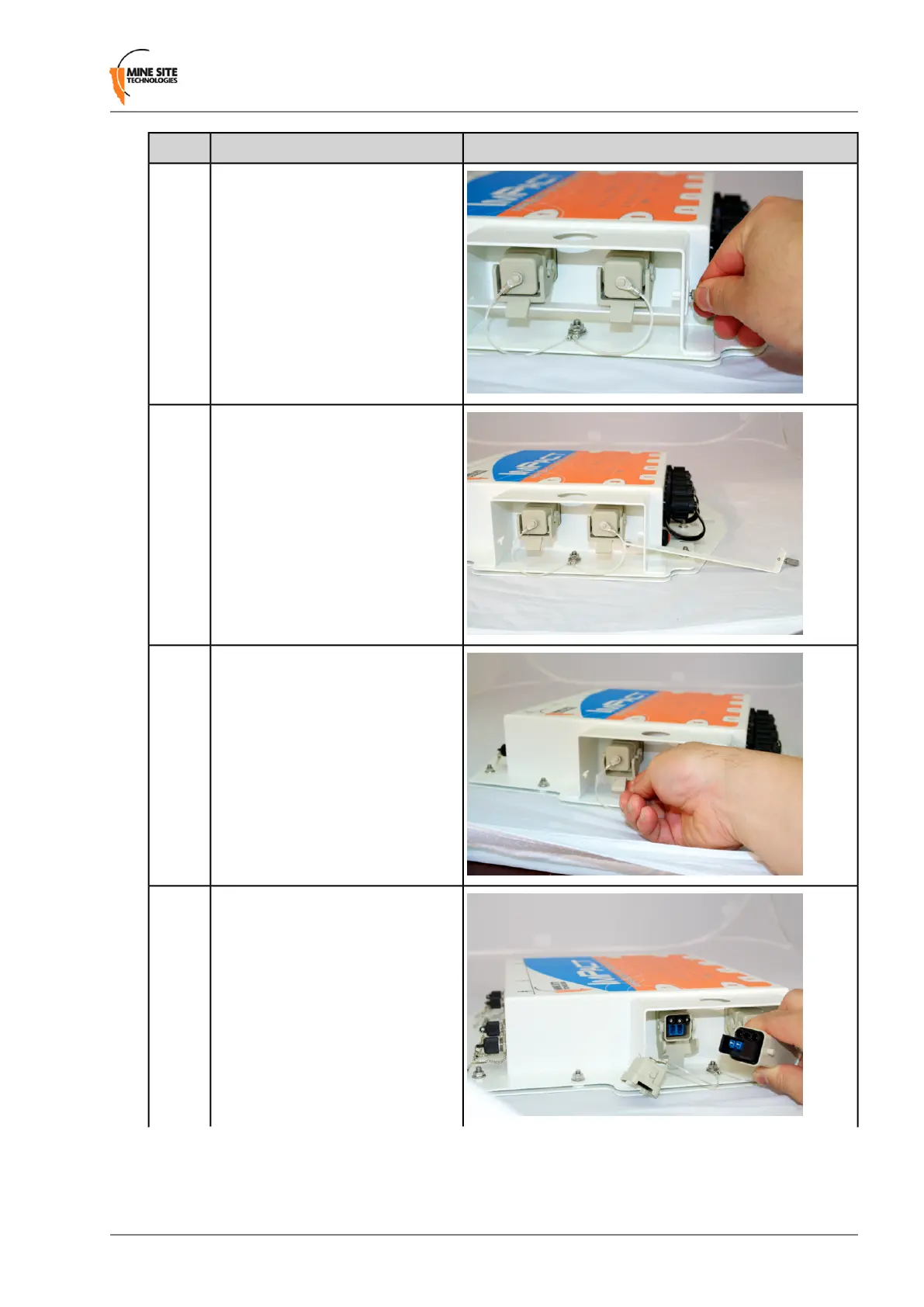

Illustration
Procedur
e
Step
Loosen
the
thumbscrew
on
the
retention
arm.
1
Slide
out
the
retention
arm
from
the
NS50.
2
Push
down
on
the
locking
catch
for
the
port
and
remove
the
cover
.
3
Align
the
pins
on
the
connector
to
the
composite
bre
port.
4
NS50
User
Guide
33
Revision
C
Installation
32
34
Table of Contents
Default Chapter
3
Table of Contents
3
Revision History
7
Contact Information
9
About this Manual
11
Chapter 1: Understanding the NS50 Wireless Network Switch
13
Hardware Overview
14
System Layout
16
Connectivity
16
Composite Fibre Ports
17
Ethernet Ports
18
Wireless Access
18
Chapter 2: Network System Design
19
Installation Types and Coverage
20
Power Requirements
20
Choosing Antennas
20
Placement of NS50 Units
21
Placement of Antennas
21
Determining Distances between Wireless Network Switches
23
Chapter 3: Installation
25
NS50 Mounting Options
26
Antenna Mounting Options
26
Installation Schemes
27
Installation in a Straight Drive
27
Installation in a Curved Decline / Incline
28
Installation in a Stope
29
Installation at an Intersection
30
Connecting Power to the NS50
31
Handling Composite Cable During Installation
32
Connecting Composite Cable to the NS50
32
Standard Composite and Fibre Cable Lengths
34
Connecting Ethernet Cable to the NS50
35
Connecting F-LINK Terminated Composite Cable to the NS50
36
Connecting Antennas to the NS50
38
Manual Reset and Reboot
40
Chapter 4: Understanding Vlans
43
Understanding Trunk and Access Ports
44
Trunk Ports
44
Access Ports
44
Port Allocation
45
Vlans and Wireless Networks
46
Native VLAN
46
Chapter 5: Configuration Using the Web Interface
49
Logging Onto the Web Browser Interface
50
Configuration Screen
50
Status Tab
51
Obtaining Device Information
51
Wireless Client Information
52
Viewing System Logs
53
Viewing Network Traffic Statistics
54
Viewing Ethernet Switch Information
56
Viewing Switch Traffic
56
Viewing Tracking Information
57
Viewing Recent Tag Reports
58
Tools Tab
59
Configuring Administrator and User Settings
59
Setting the Time
61
Rebooting or Restoring the Network Device
63
Upgrading Firmware
63
Settings Tab
66
Managing Automatic TFTP Configuration
66
Configuring SNMP Settings
66
Setting up the LAN
67
Configuring Wireless Radio
68
Configuring Wireless Networks
71
Configuring EAP (Extensible Authentication Protocol)
74
WDS (Wireless Distribution System) Settings
76
Configuring Asset Tracking and Location Based Services
76
Configuring Ethernet Switch Ports
78
Enabling the MAC Address Filter
80
Defining Vlans
81
Configuring the VLAN Port Map
82
Chapter 6: Centralised Configuration Management
85
Device Management Overview
86
Site Configuration
86
AP Config Templates
86
Access Point
88
TFTP Server Overview
90
TFTP Parameters
91
Appendix A: Troubleshooting Guide
93
Appendix B: Composite Cable Testing
95
Visual Inspection of the Fibre Optic Cable
95
Measuring and Testing for Power Loss
95
Appendix C: Ethernet Cable Specifications
97
Appendix D: Device Discovery
99
Appendix E: Time Zone Indices and Offsets
101
Appendix F: Connecting a PC to an Impact Network Device
105
Appendix G: Maintenance Check-List
109
Appendix H: Acronyms
111
Appendix I: Impact NS50 Specifications
113
Appendix J: Hardware Warranty
117
