MST Impact NS5001 User Guide

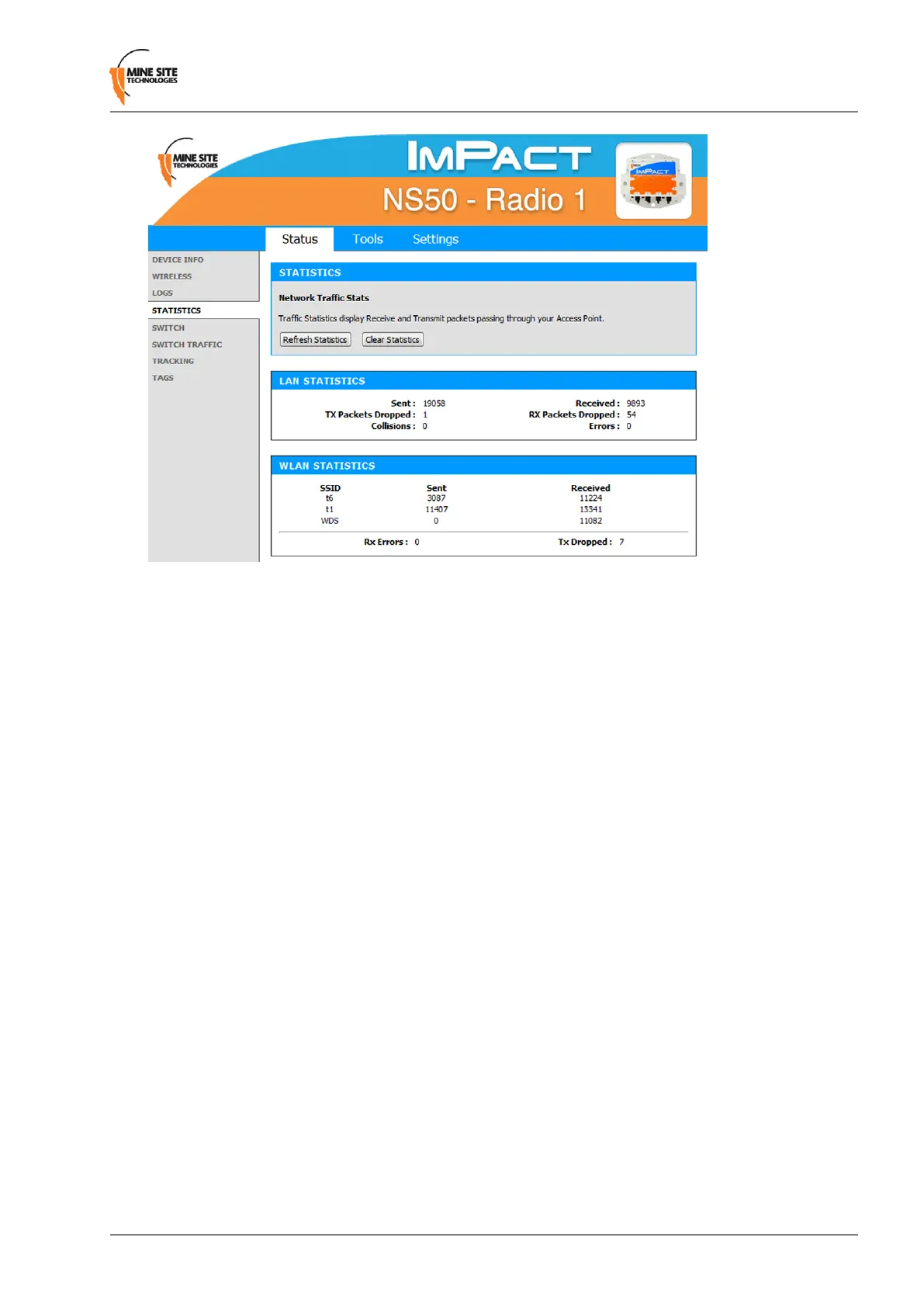

To view statistics:
1.
Click Refresh Statistics to update the statistics.
2.
Click Clear Statistics to clear displayed statistics. A reset conrmation dialog box is displayed.
3.
Click OK.
The following parameters are displayed:
• LAN STATISTICS
• Sent: The number of frames sent out from NS50 via all physical network interfaces (Ethernet and
Fibre).
• Received: The number of frames received by the NS50 via all physical network interfaces.
• TX Packets Dropped: The number of frames dropped while being sent to the switch processor,
due to errors, collisions, or network switch resource limitation.
• RX Packets Dropped: The number of frames dropped while being received from the switch
processor, due to errors, collisions, or network switch resource limitation.
• Collisions: The number of frames dropped due to Ethernet collisions.
• Errors: The number of transmission failures that caused the loss of a packet.
• WLAN STATISTICS
• SSID: The ID of the wireless network.
• Sent: The number of frames sent out from the SSID.
• Received: The number of frames received by the SSID.
• Rx Errors: The number of frames dropped while being received.
• Tx Dropped: The number of frames dropped while being sent.
NS50 User Guide55Revision C
Conguration Using the Web Interface
