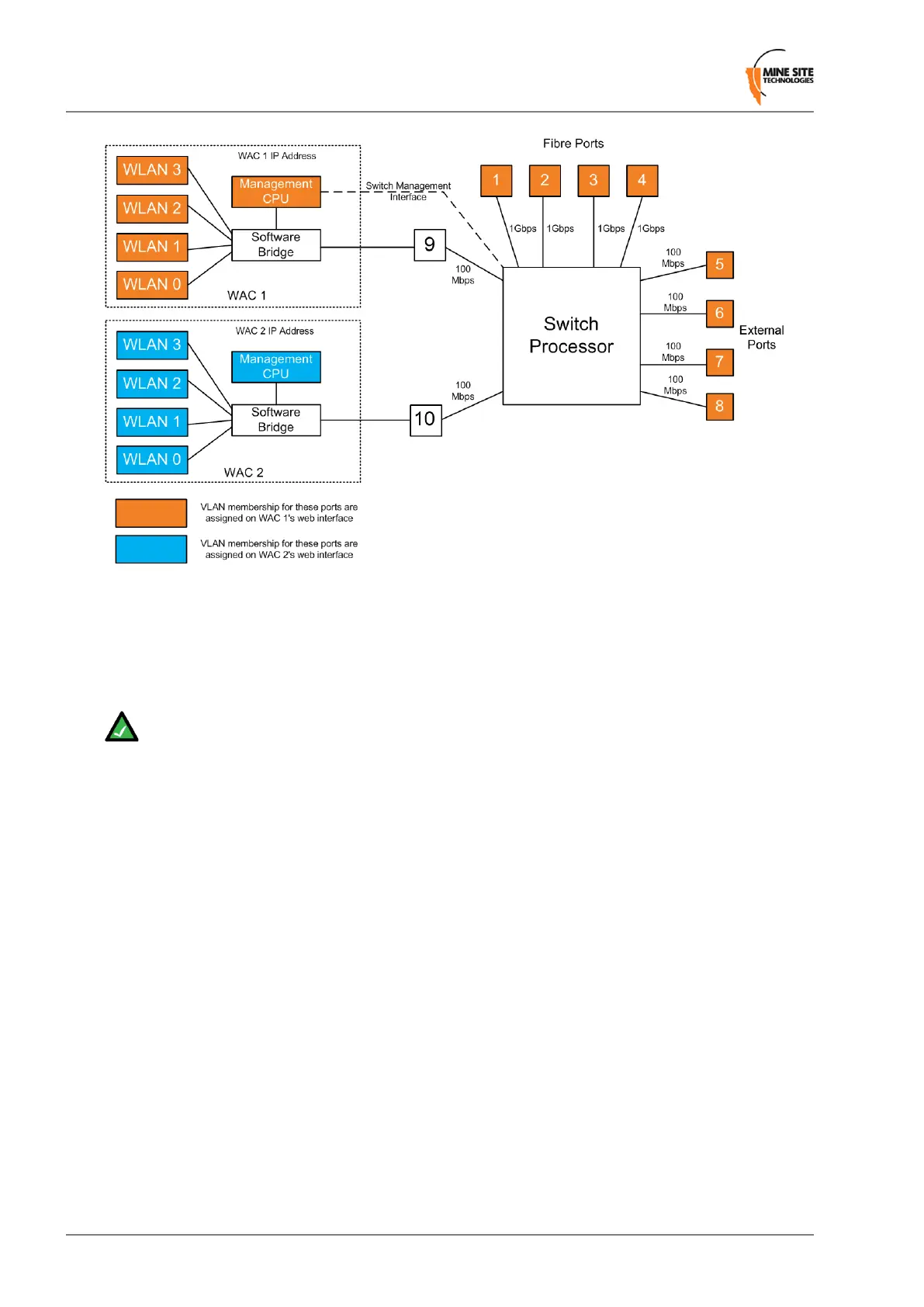

To congure a port:
1.
Set the Mode to be either Trunk or Access (for physical ports).
2.
Select the VLAN Membership(s). For an Access port only one VLAN can be selected. For a trunk
port multiple VLANS can be selected.
3.
Click Save Settings to save VLAN port map settings.
Note: To congure the VLAN port map properly, it is recommended to understand the principles
of VLANs. For more details on VLANs, see Understanding VLANs on page 43.
