NOTE: Your unit may be equipped with
one or two auger belts.
•
To remove the front auger drive belt,
push the idler pulley to the left, and lift
front auger drive belt from the front auger
pulley. See figure 23. Replace both auger
drive belts by following instructions in re
-
verse order.
NOTE: When reassembling the two
halves of the unit, the auger drive ca
-
ble must be routed through the cable
roller guides as shown in figure 24.
NOTE: The auger pulley mounting bolt
has chemical patch which sets after
bolt is assembled. If the bolt is re
-
moved for any reason it must be
replaced.
DRIVE BELT:
NOTE: Separating the housing from
the frame is not required when remov
-
ing and replacing the drive belt.
• Tip the snowthrower up and forward, so
that it rests on the housing.
• Remove six self-tapping screws from the
frame cover underneath the snowthrower.
•
Pull the idler pulley towards you and re
-
move the drive belt from the pulley. You
will find the idler pulley in front of the en
-
gine and under the belt cover that you
removed earlier. See figure 24.
•
Slip belt between friction wheel and fric
-
tion wheel disc. See figure 18. You may
have to twist the belt flat in order to slide
it through the clearance between the fric
-
tion wheel and the friction wheel disc.
Remove the belt completely.
15

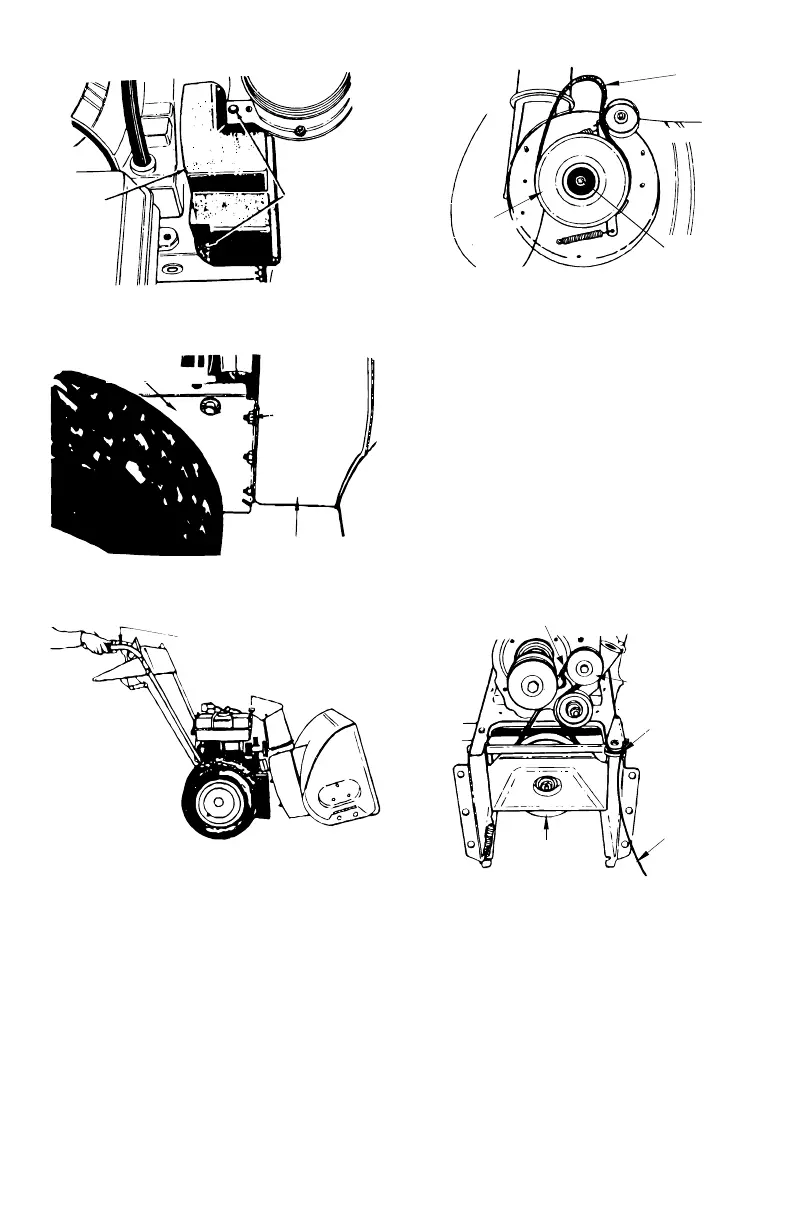

FIGURE 20 - Chute removed for clarity.
Self-Tapping
Screws
Belt
Cover
FIGURE 23
Auger
Pulley
Front
Auger
Drive
Belt
Auger
mounting
bolt
FIGURE 21
Auger
Housing
Lockwashers
Hex Nuts
Frame
Assembly
FIGURE 22
Lift up on
Handles
FIGURE 24
Cable
Roller
Guide
Drive Belt
Drive Pulley
Cable
Friction
Wheel Disc
To Next Page
