STARTER AND CHARGING SYSTEMS
48
Stator
To remove/replace the stator:
1. Remove and ground the spark plug wire.
2. Remove the flywheel by following the steps
described in Chapter 7: Ignition System.
3. Remove the baffle that covers the charger har-
ness using a 10mm wrench. See Figure 6.18.
4. Slide the grommet out of the engine block.
See Figure 6.18.
5. Remove the two screws that secure the stator
with a 10mm wrench and lift the stator off of the
engine.
See Figure 6.19.
6. Install the stator by following the above steps in
reverse order.
7. Test run the engine in a safe area and retest the
voltage output before returning to service.
Rotor
Rotor failures are extremely rare. To check the rotor:
• Confirm that the magnets are firmly attached to
the flywheel.
• Hold a screwdriver or a similar tool made of fer-
rous metal within a 1/4” of each magnet.
• If the tool is drawn to the magnet, the rotor is
good.

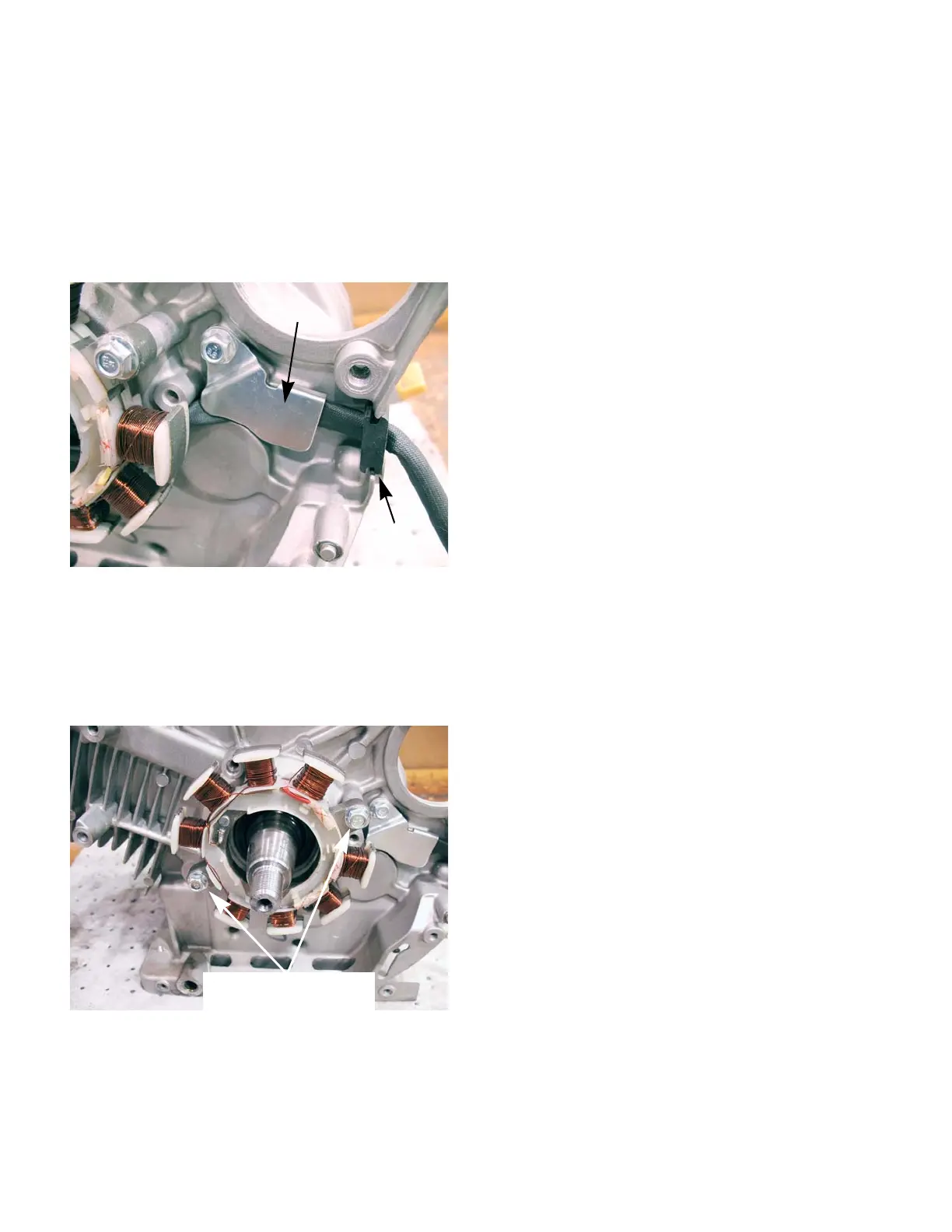

Figure 6.18
Baffle
Grommet
Figure 6.19
Remove these
screws
