IGNITION SYSTEM
51
Remote (ignition) stop switch
To test the remote stop switch:
1. Remove the engine shroud by following the pro-
cedures described in Chapter 3: Air Intake Sys-
tem.
2. Disconnect the two wires from the remote
switch.
See Figure 7.5.
3. Connect a digital multimeter to the two tabs on
the back of the remote switch.
4. Set the multimeter to the ohms (Ω) scale.
With the key fully inserted, the multimeter should
not show continuity. See Figure 7.6.

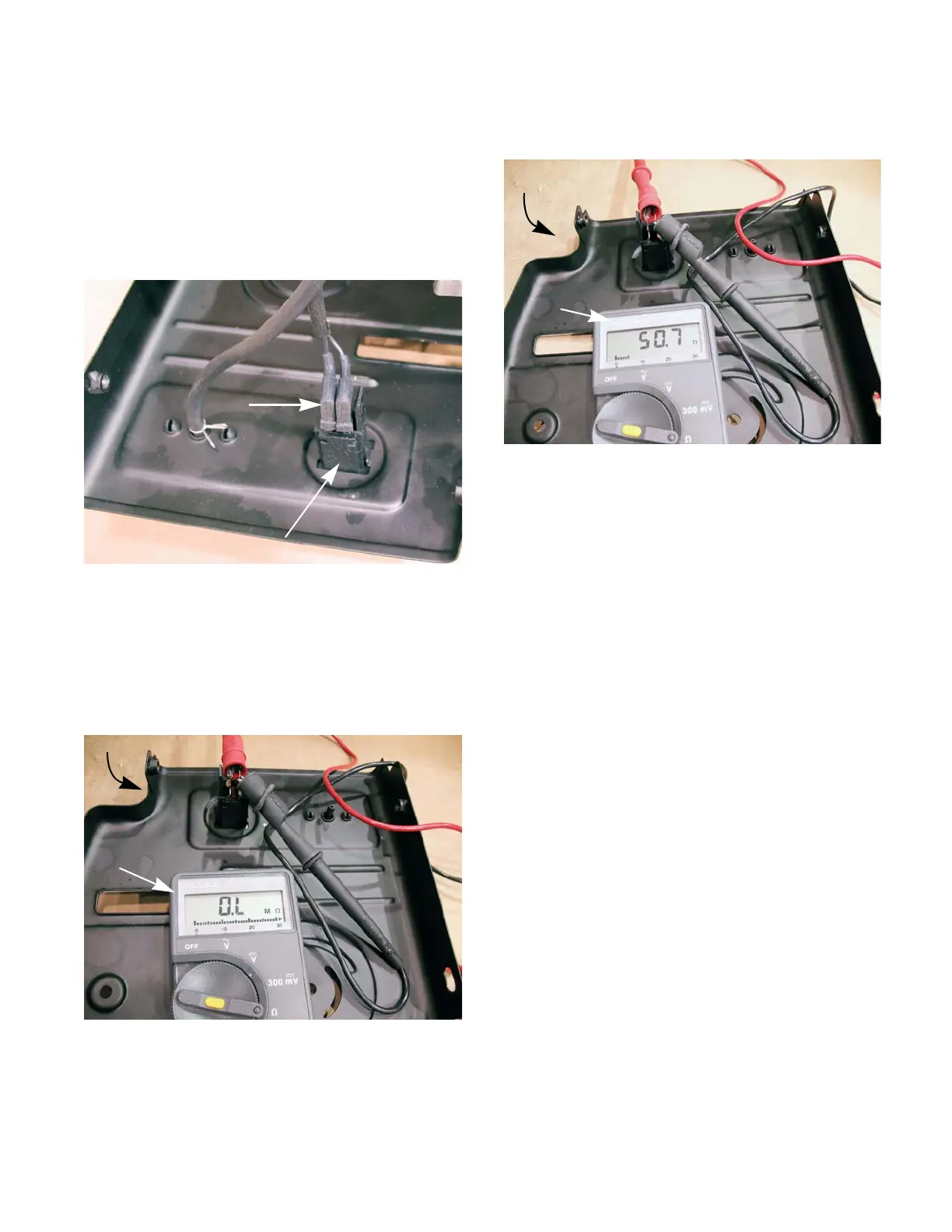

Figure 7.5
Remote switch
Disconnect wires
Figure 7.6
No continuity
Key inserted
With the key removed, the meter should show
continuity. See Figure 7.7.
5. If the test results do not match the results
described in step 4, replace the remote switch.
Figure 7.7
Key removed
Continuity
