Variable Speed Drive

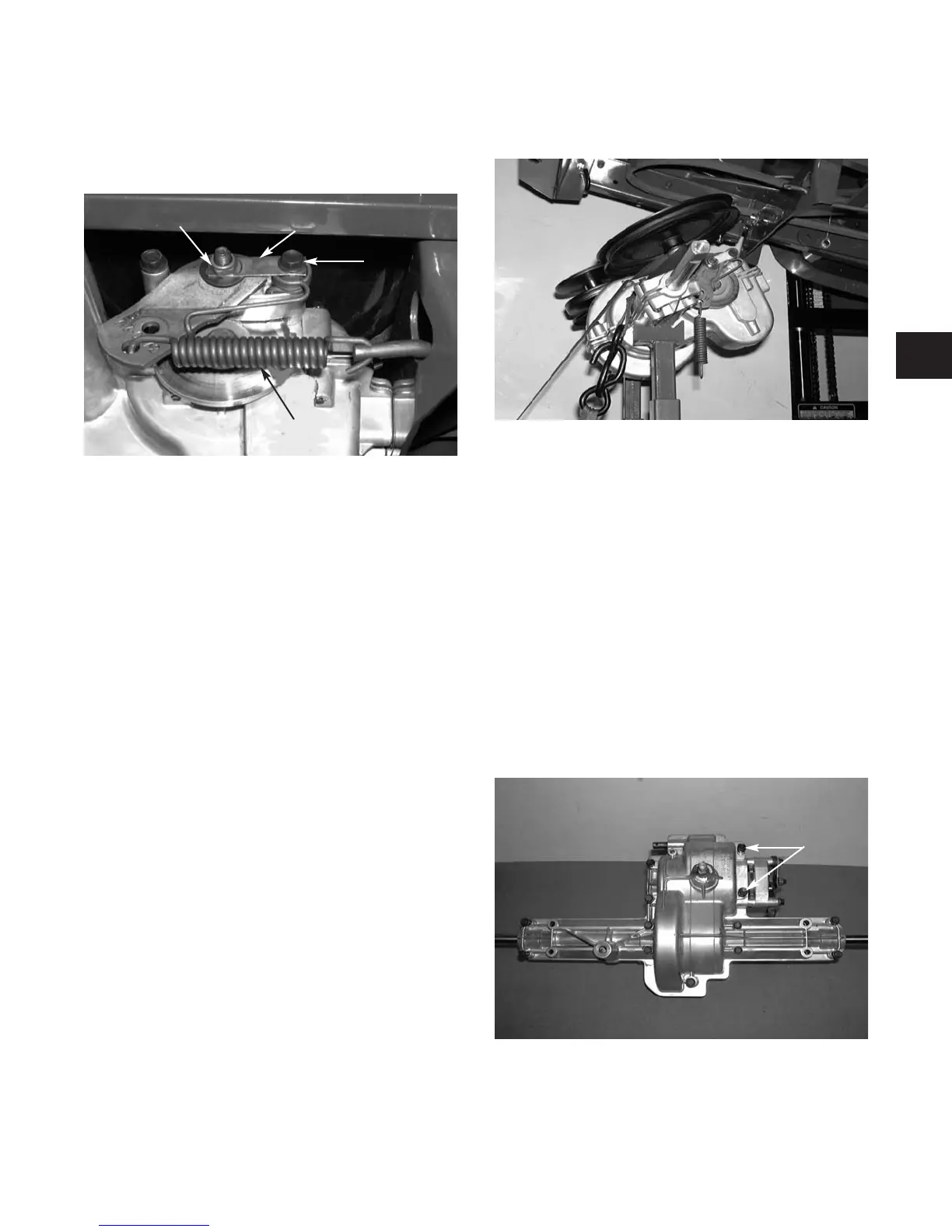

FIGURE 5.
15). Pivot the anti-rotation bracket down and relieve
the spring tension on the brake actuation arm.
16). Remove the flat washer from the actuation arm
stud of the brake assembly.
17). Remove the brake spring from the brake actua-
tion arm. See figure 5.
FIGURE 6.
NOTE: The variable-speed pulley will be hanging
by the drive belt at this time. Set it aside after
removal of the transmission.
INSTALL THE TRANSMISSION IN THE REVERSE
ORDER ABOVE.
Hex
Nut
Anti-Rotation
Bracket
Hex
Screw
Brake
Spring
Long
Screws
11
14). Loosen (DO NOT REMOVE) the hex washer
head self-tapping screw that secures the anti-
rotation bracket to the brake assembly using 3/8
wrench. See figure 5.
18). Slowly lower the transmission from the tractor.
See figure 6.
