Variable Speed Drive

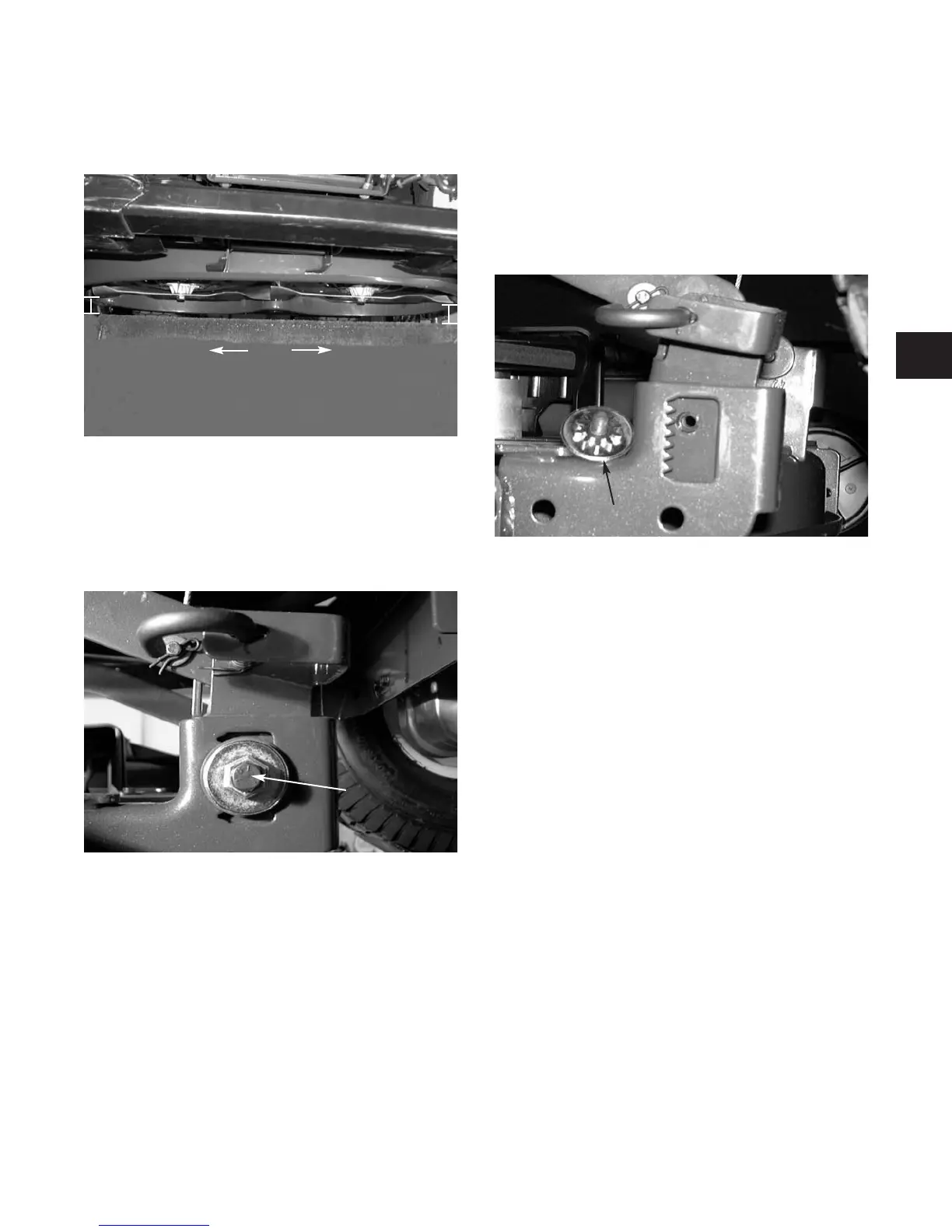

FIGURE 6.
2). Measure the outer blade tips to ground. Both
measurements taken should be equal. See figure
6.
FIGURE 7.
4). Rotate the 3/4" deck adjustment gear right or left
until the deck is level side to side and both blade
tips to ground are equal in measurement.
5). Retighten the hex cap screw on the left deck
hanger using a 1/2" and 3/4" wrench when the
proper adjustment has been achieved.
FIGURE 8.
NOTE: If an adjustment is needed, perform the
following steps:
3). Loosen (DO NOT REMOVE) the hex cap screw
on the left deck hanger bracket using a 1/2" and
a 3/4" wrench. See figure 7.
Side
Equal
Side
Hex Cap
Screw
NEW ADJUSTMENT DESIGN
Adjustment
Gear
4 - 5
