Variable Speed Drive
Brake Adjustments
IMPORTANT: Make certain the tractor comes to
a complete stop when the brake pedal is
depressed. Also, make certain the rear wheels
do not roll when the parking brake has been
applied. If motion continues, perform the follow-
ing steps:
1). Locate the hex nut that secures the brake
assembly.
2). Loosen (DO NOT REMOVE) the hex nut using a
1/2" wrench.

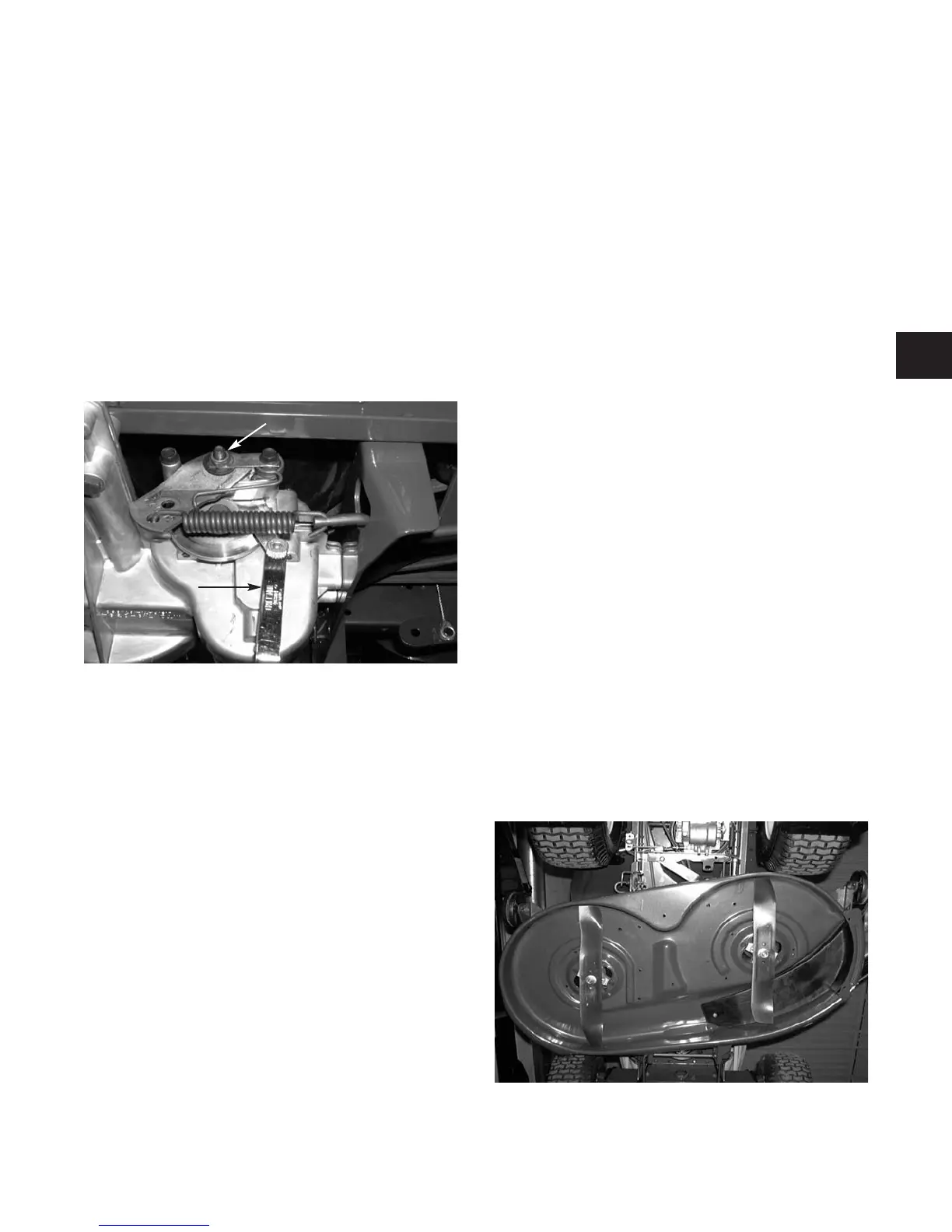

3). Slide an .011" feeler gauge between the brake
disc and the brake puck. See figure 1.
FIGURE 1.
4). Tighten the hex nut that secures the brake
assembly.
5). Remove the .011" feeler gauge from the brake
assembly.
6). Test for proper adjustments.
Hex Nut
Feeler Gauge
Leveling the Cutting Deck
NOTE: Prior to leveling the mowing deck, per-
form the following steps:
1). Check the tire pressure. The front tires will be
approximately 14 PSI, and the rear tires will be
approximately 10 PSI.
2). Place the tractor on a level surface.
3). Depress and lock the parking brake.
4). Place the cutting deck in cutting position 3 or 4.
FRONT TO REAR ADJUSTMENT:
IMPORTANT: The front of the deck will be
between 1/4" to 3/8" lower in the front than the
rear of the deck.
1). Using a work glove or rag, rotate the blades until
they are parallel with the tractor frame. See
figures 1 and 2.
FIGURE 1.
