Variable Speed Drive
FIGURE 2.
5). Pivot the deck support pins to the rear.
6). Raise the lift lever to the highest setting. This will
raise the lift arms up and out of the way of the
deck assembly.
7). Slide the cutting deck forward and release the
front deck hangers off of the front stabilizer rod.
DO NOT DROP the deck to the ground. See
figure 3.
FIGURE 3.
8). Slide the deck towards the side discharge chute
and remove it from the tractor.
CAUTION: Remove the deck stabilizer assembly
from the tractor prior to moving the unit.
3). Remove the deck belt from the lower pulley on
the engine.
NOTE: The 46" decks have an upper and a
lower belt. The upper belt is removed for cutting
deck removal.

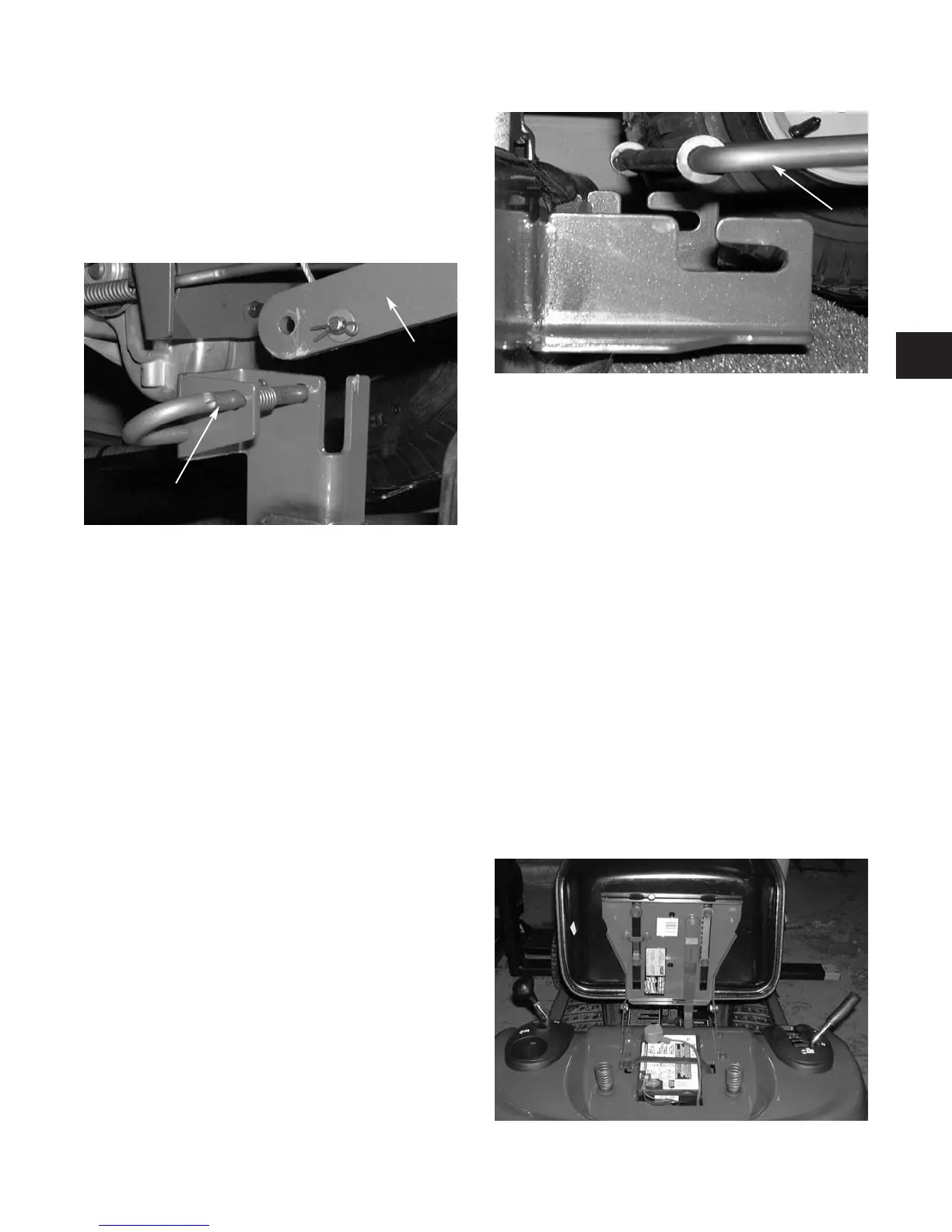

4). Pull the rear deck support pins outward from the
deck lift arms. See figure 2.
Deck Support
Pin
Lift
Arm
Front
Stabilizer
Rod
Drive Belt Removal and Reinstallation
TRANSMISSION BELT REMOVAL AND
INSTALLATION:
UPPER BELT:
1). Raise the seat of the tractor and disconnect the
battery cables from the battery. Remove the
negative cable first. See figure 1.
FIGURE 1.
7
To Next Page
