MTD 75 series - Charcoal Canister

FUEL SYSTEM AND GOVERNOR
53
Charcoal canister
To remove/replace the charcoal canister:
1. Remove the air filter.
2. Remove the two screws that hold the air filter base to
the elbow using a #2 Phillips screw driver. See Figure
4.22.
3. Lift the base off of the elbow enough to gain access
to the vacuum lines underneath it.
4. Disconnect the vacuum lines.
.
5. Gently spread the two hooks while pulling the canis-
ter out of the base. See Figure 4.24.
6. Install the Charcoal canister by following the previous
steps in reverse order.
7. Test run the engine in a safe area before returning it
to service.

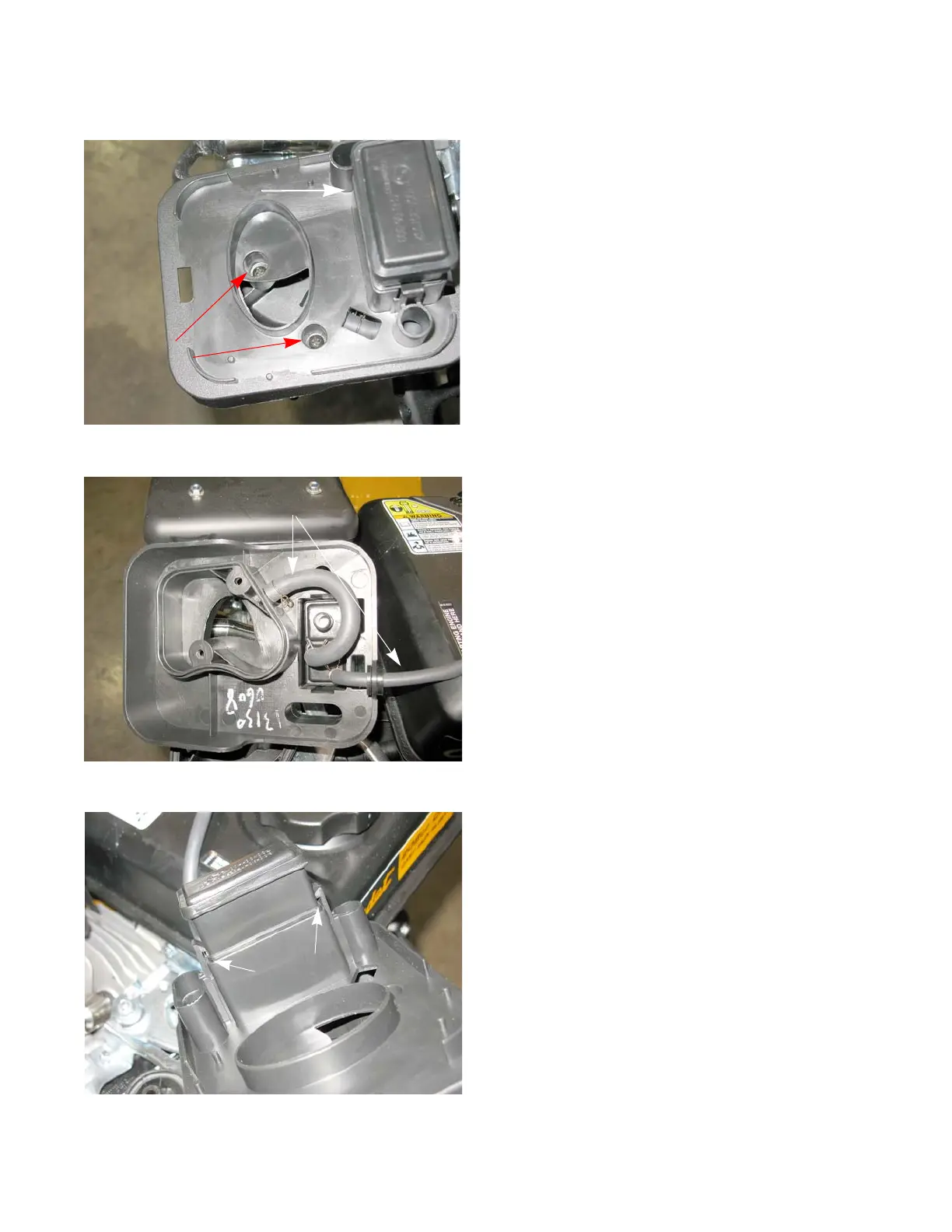

Figure 4.22
Charcoal canister
Screws
Figure 4.23
Vacuum lines
Figure 4.24
Hooks
