Lubrication
65
Dip stick tube removal
To remove/replace the dip stick tube:
1. Remove the dip stick.
2. Remove the two screws securing the dip stick cover
in place using a #2 Phillips screw driver. See Figure
5.3.
3. Remove the screw at the bottom of the dip stick tube.
See Figure 5.4.
4. Pull the dip stick tube out of the engine block and fuel
tank. See Figure 5.5.
5. Inspect the O-rings on the dip stick and the dip stick
tube. Replace if damaged.
6. Install by following the previous steps in reverse
order.

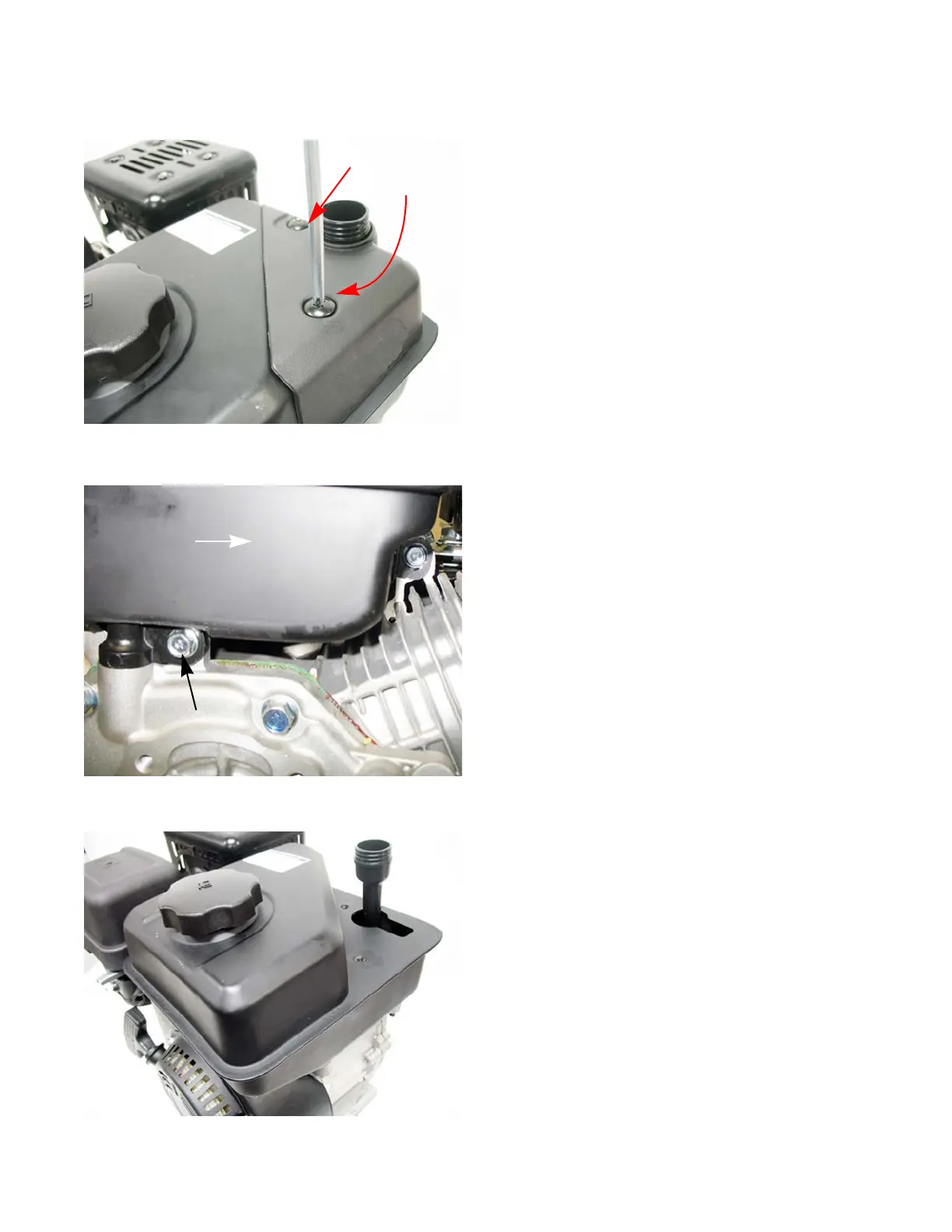

Figure 5.3
Remove these
screws
Figure 5.4
Remove this screw
Fuel tank
