61/65/70/75 Series Horizontal Shaft Engines
62

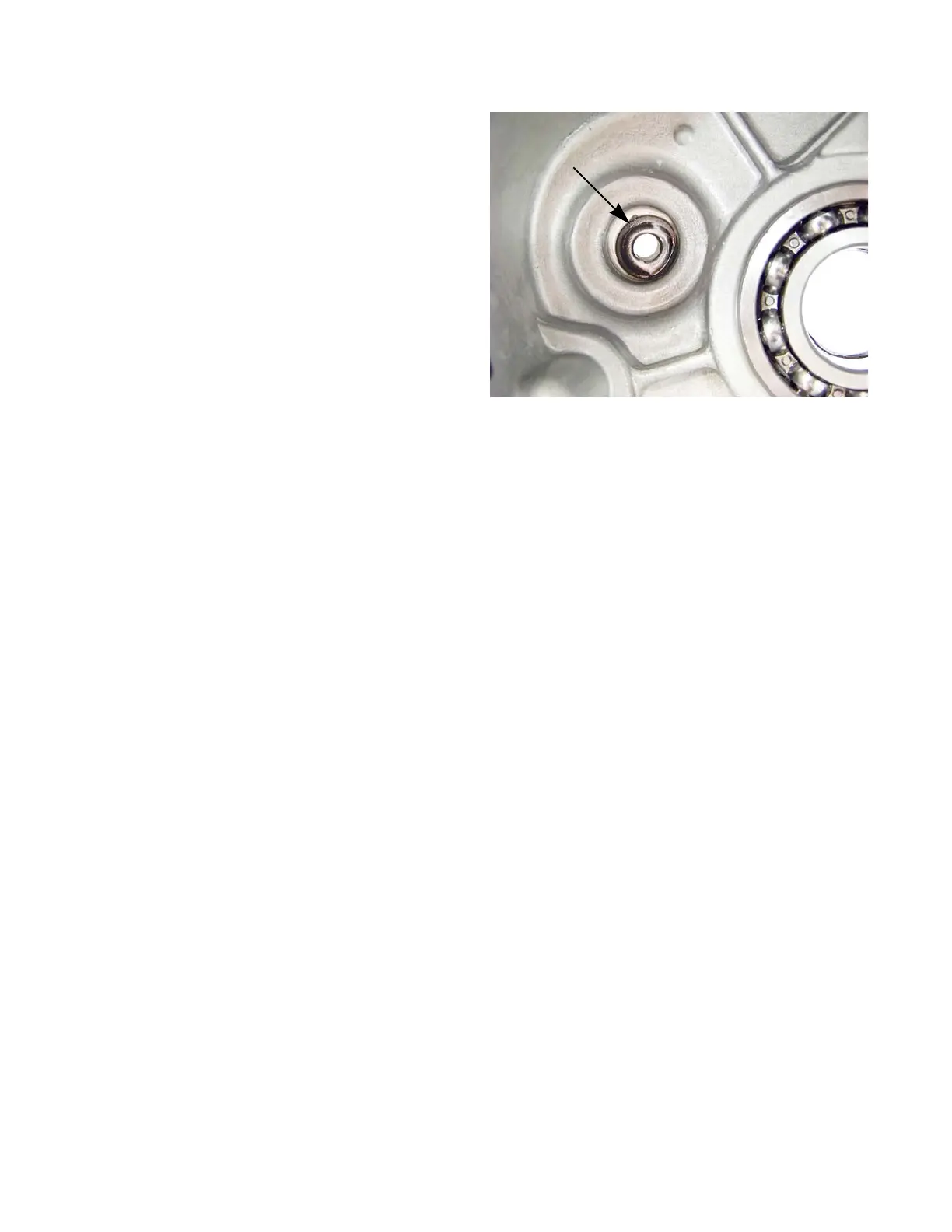

NOTE: A second thrust washer goes between the
governor gear and the cylinder block. Make
sure it is in place when installing the gover-
nor gear. See Figure 4.44.
7. Install the governor gear and cup by following the
above steps in reverse order.
NOTE: Check the governor arm for freedom of
movement before test running the engine.
8. Test run the engine and adjust the top no load
engine RPMs by following the steps described in
the disassembly and rebuilding the carburetor sec-
tion of this chapter.
