Chapter 3: Air Intake and filter
24
2. Remove the screw that holds the air filter hous-
ing to the control bracket. See Figure 3.3.
3. Remove the two nuts that hold the air filter body
to the carburetor mounting studs. See Figure
3.3.
4. Disconnect the crankcase vent tube.
5. Lift away the filter housing.
NOTE: Behind the filter housing is a steel plate
with formed rubber gaskets vulcanized to each
surface. See Figure 3.4.
NOTE: Mark or note the orientation of the plate.
Notches in the plate allow air to reach emulsion
ports: one for the main jet and one for the pilot
jet. Channels in the rubber provide air passage
to the choke-side bowl vent.
Foam air filter
1. Press in the tab on the air filter cover.
See Figure 3.5.
2. Swing open the filter cover. See Figure 3.6.
3. Remove the air filter.
4. Install by following the above steps in reverse
order.

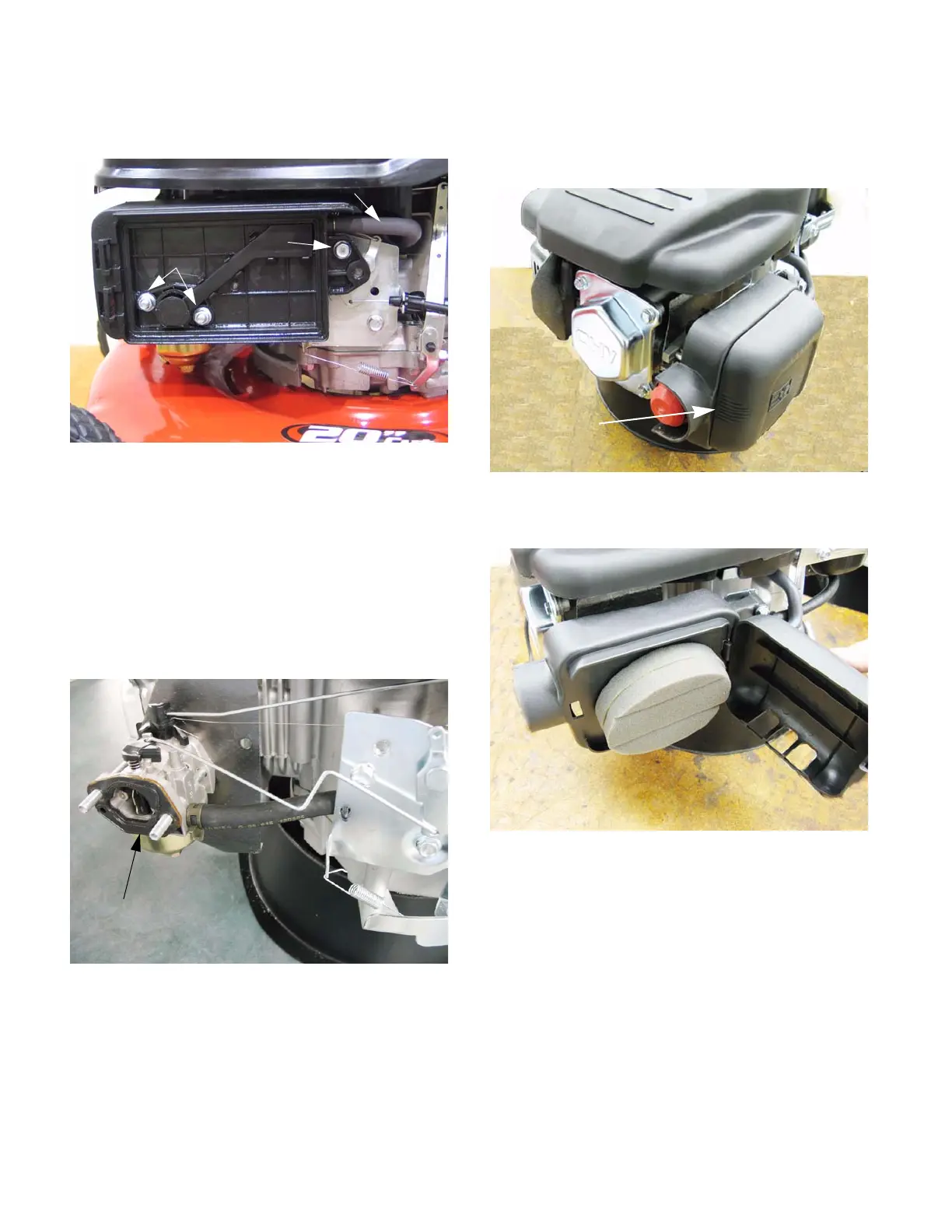

Figure 3.3
Crankcase vent tube
Filter mounting screw
and nuts
Figure 3.4
Gasket / plate
Figure 3.5
Press tab
Figure 3.6
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983
