Page 28 MTI Part Number 7001-0040
Revision 3.1 August 7, 2014

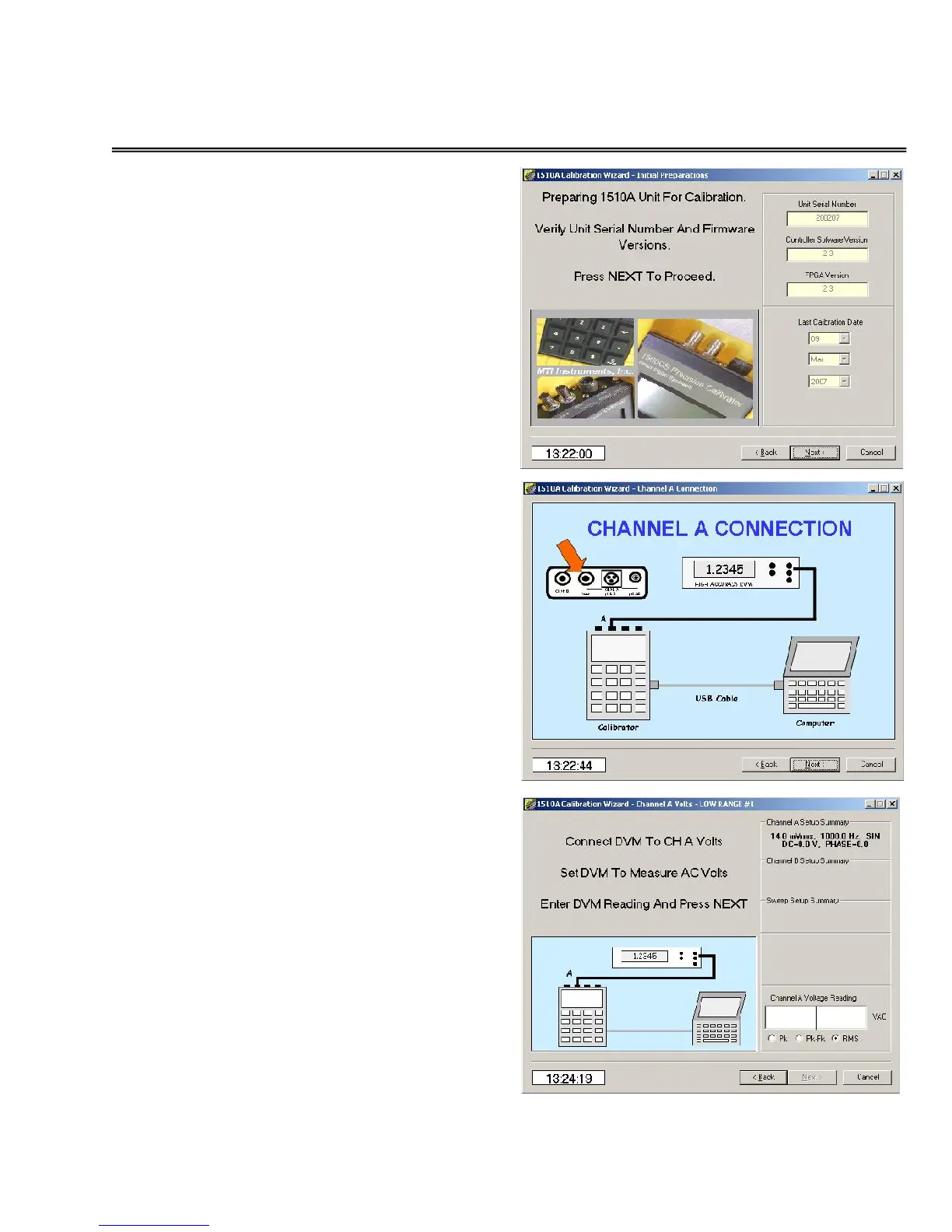

TOOLS Menu – Calibration Wizard Continued
The next step in the Calibration Wizard
uploads the units’ serial number and
software version information. Verify these
numbers with those found on the label
affixed to the back of the unit.
Connect to Channel A –
Connect a BNC cable between the
1500CS/1510A Channel A output connector
and the input to the voltmeter.
Set the voltmeter for AC RMS readings.
Channel A Low range AC calibration
Click in the Voltage Reading window and
enter the reading of the voltmeter. Verify
that the correct units (Pk, Pk-Pk, or RMS)
are selected for the type of voltmeter you
are using.
This screen is repeated for the three low
range voltages (14 mv, 35 mv, and 56 mv)
used.
