5
INM5000-6 Jul 2010
Where the earth rail is required to be positioned at a lower height and
to allow access to the IMB57 mounting screws, the straight earth-rail
bracket ERB57S can be inserted in the lower slot, but only after
insulating mounting blocks IMB57 are clamped to the DIN rail. This may
not be possible if, for example, trunking is fitted. In this case, fit offset
earth-rail bracket ERB57O (see figure 4.7) in the upper slot: the
mounting blocks can then be fitted in a restricted space with this bracket
already fitted.
ERB57O Earth-rail bracket, offset (figure 4.7)
Nickel-plated; supplied with two push fasteners, one earth-rail clamp
(14mm, 35mm2) and one earth cable clamp (10mm, 16mm2).
ERL7 Earth rail, 1m length (figure 4.8)
Nickel-plated; may be cut to length.
TAG57 Tagging strip, 1m length (figure 4.9)
Cut to size. Supplied with tagging strip label.
TGL57 Tagging strip labels, set of 10 x 0.5m
Spares replacement, for use with TAG57 tagging strip.
MS010 DIN rail module spacer, 10mm, pack of 5 (figure 4.10)
Grey spacer, one required between each MTL5995 and any adjacent
module on a DIN rail, to provide 10mm air-circulation space between
modules.

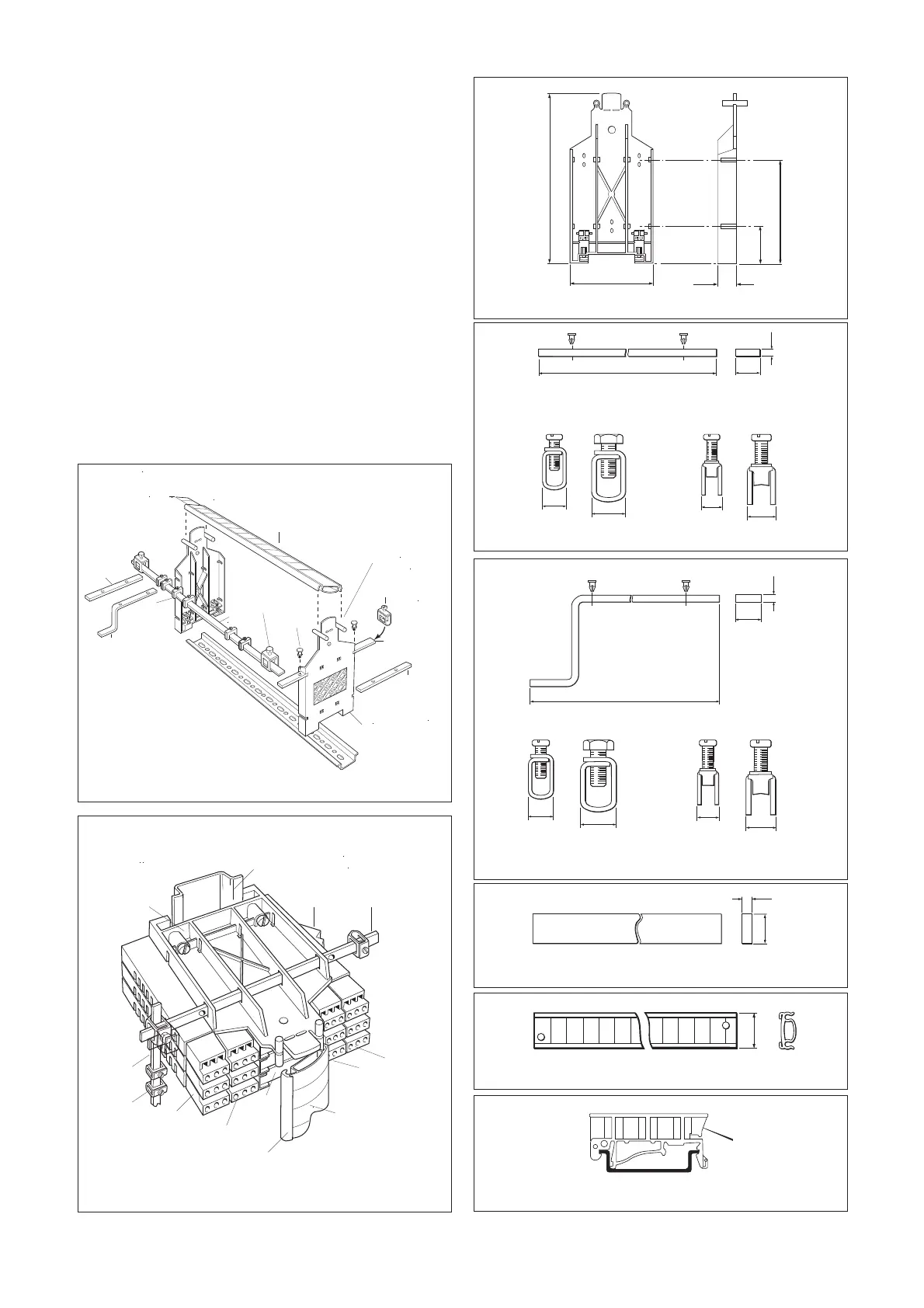

Figure 4.3: Assembly drawing showing part numbers
Figure 4.4: Mounting details
Figure 4.5: IMB57 Insulating mounting block
Figure 4.6: ERB57S Earth-rail bracket, straight (end-on view), and clamps
Figure 4.7: ERB57O Earth-rail bracket, offset (end-on view), and clamps
Figure 4.8: ERL7 Earth-rail, 1m length
