Temposonics
®
R-Series V Analog
Operation Manual
I 11 I

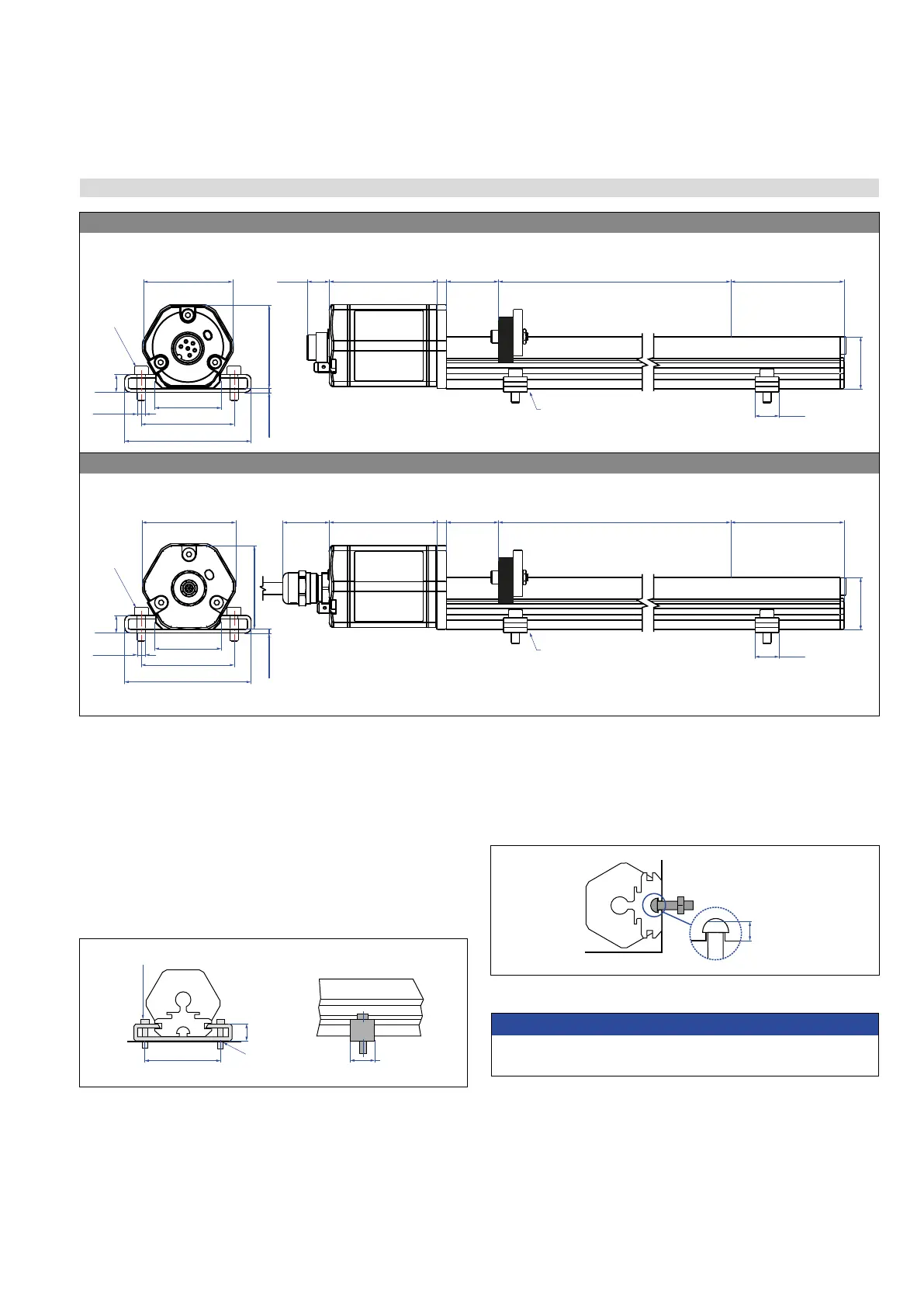

4.2 Styles and installation of Temposonics
®
RP5
Fig. 3: Temposonics
®
RP5 with U-magnet
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
Installation of RP5
The position sensor can be installed in any position. Normally,
the sensor is firmly installed and the position magnet is fastened
to the mobile machine part. Thus it can travel along the sensor profile.
The sensor is fitted on a flat machine surface using the mounting
clamps (Fig. 4). A length-dependent number of these clamps are
delivered with the sensor and must be distributed over the profile
at regular distances. For fastening use M5×20 screws to DIN 6912
that should be tightened with a fastening torque of 5 Nm.
Fig. 4: Mounting clamps (part no. 400 802) with cylinder screw M5×20
Fig. 5: T-slot nut M5 (part no. 401 602)
NOTICE
Take care to mount the sensor in an axially parallel position to
avoid damage to magnet and sensor.
≤ 5
(≤
0.2)
M5
Alternative:
If only limited space is available, the profile sensor can be mounted
also via the T-rail in the profile bottom using an T-slot nut M5
(part no. 401 602) or a sliding block (Fig. 5).
Fastening torque: 5 Nm
50
(1.97)
9.5
(0.37)
Bore Ø 5.3
(Ø 0.21)
14.6
(0.57)
RP5-M-A/-V, example: Connection type D60 (connector output)
Magnet
5
* Stroke length > 5000 mm (196.9 in.)
14.6
(0.57)
Adjustable mounting clamp
e.g. for
M5
or
#10 screws
11.7
(0.46)
Sensor electronics
housing
58
(2.28)
Null zone
28
(1.1)
Stroke length
25…6350
(1…250)
Dead zone
66/71*
(2.6/2.8*)
48 (1.89)
9.5 (0.37)
35.6 (1.4)
50 (1.97)
68 (2.68)
2 (0.08)
45 (1.77)
28
(1.1)
Ø 5.3
(
Ø 0.21)
RP5-M-A/-V, example: Connection type HXX/RXX/TXX (cable output)
Magnet
5
* Stroke length > 5000 mm (196.9 in.)
14.6
(0.57)
Adjustable mounting clamp
e.g. for
M5
or
#10 screws
25
(0.98)
Sensor electronics
housing
58
(2.28)
Null zone
28
(1.1)
Stroke length
25…6350
(1…250)
Dead zone
66/71*
(2.6/2.8*)
48 (1.89)
9.5 (0.37)
35.6 (1.4)
50 (1.97)
68 (2.68)
2 (0.08)
45 (1.77)
28
(1.1)
Ø 5.3
(
Ø 0.21)
