MTS Systems Temposonics RH5-M-A User Manual

Temposonics
®
R-Series V Analog
Operation Manual
I 23 I

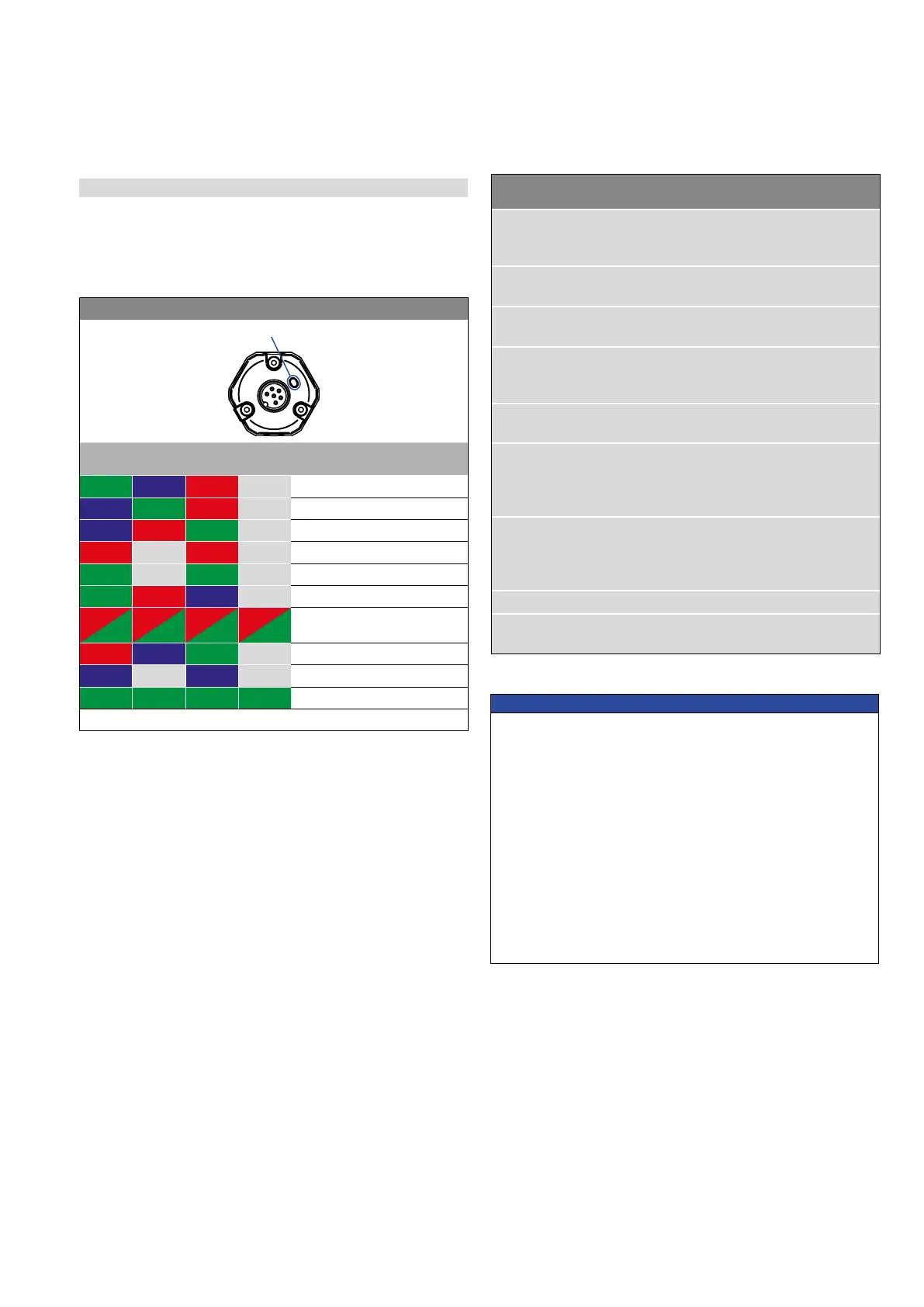

5.3 LED Status
The LED on the sensor displays the current sensor status. In normal
function the LED is continuously green. In other cases the color of the
LED changes in the time slot of 0.5 seconds as shown in Fig. 27.
R-Series
V
Analog LED status
Status LED
Time
slot 1
Time
slot 2
Time
slot 3
Time
slot 4
Information
GN BU RD Off Con guration error
BU GN RD Off Storage error
BU RD GN Off Internal error
RD Off RD Off Power supply error
GN Off GN Off Cycle time error
GN RD BU Off Extra magnet
RD +
GN
RD +
GN
RD +
GN
RD +
GN
Magnet status error
RD BU GN Off Signal error
BU Off BU Off Command mode
GN GN GN GN Normal function
1 × time slot = 0.5 seconds
Fig. 27: LED status
Fig. 28: Error conditions and troubleshooting
Error
Condition
Description Troubleshooting
Conguration
Error
Invalid conguration of
the sensor
Check the conguration of
the sensor.
Contact MTS Sensors.
Storage Error Error in internal data
storage
Contact MTS Sensors
Internal Error Internal error of the
sensor
Contact MTS Sensors
Power Supply
Error
Power supply of the
sensor is out of the
allowable range
Set the power supply for
the sensor to the allowable
range
Cycle Time
Error
Internal timing error Contact MTS Sensors
Extra Magnet Sensor registers more
position magnets than
set
Ensure that the number of
position magnets on the
sensor matches the set
number
Magnet Status
Error
Sensor registers less
position magnets than
set
Ensure that the number of
position magnets on the
sensor matches the set
number
Signal Error Internal signal error Contact MTS Sensors
Position Error Error in position
measurement
Contact MTS Sensors
Fig. 28 describes error conditions that are output via the LEDs and
troubleshooting.
NOTICE
Observe during commissioning
1. Before initial switch-on, check carefully if the sensor has
been connected correctly.
2. Position the magnet in the measuring range of the sensor
during first commissioning and after replacement of the
magnet.
3. Ensure that the sensor control system cannot react in an
uncontrolled way when switching on.
4. Ensure that the sensor is ready and in operation mode after
switching on. The LED lights permanently green.
5. Check the preset span start and end values of the measuring
range (see chapter 4.4) and correct them via the TempoLink
smart assistant, if necessary.
