Temposonics
®
R-Series V Analog
Operation Manual
I 21 I

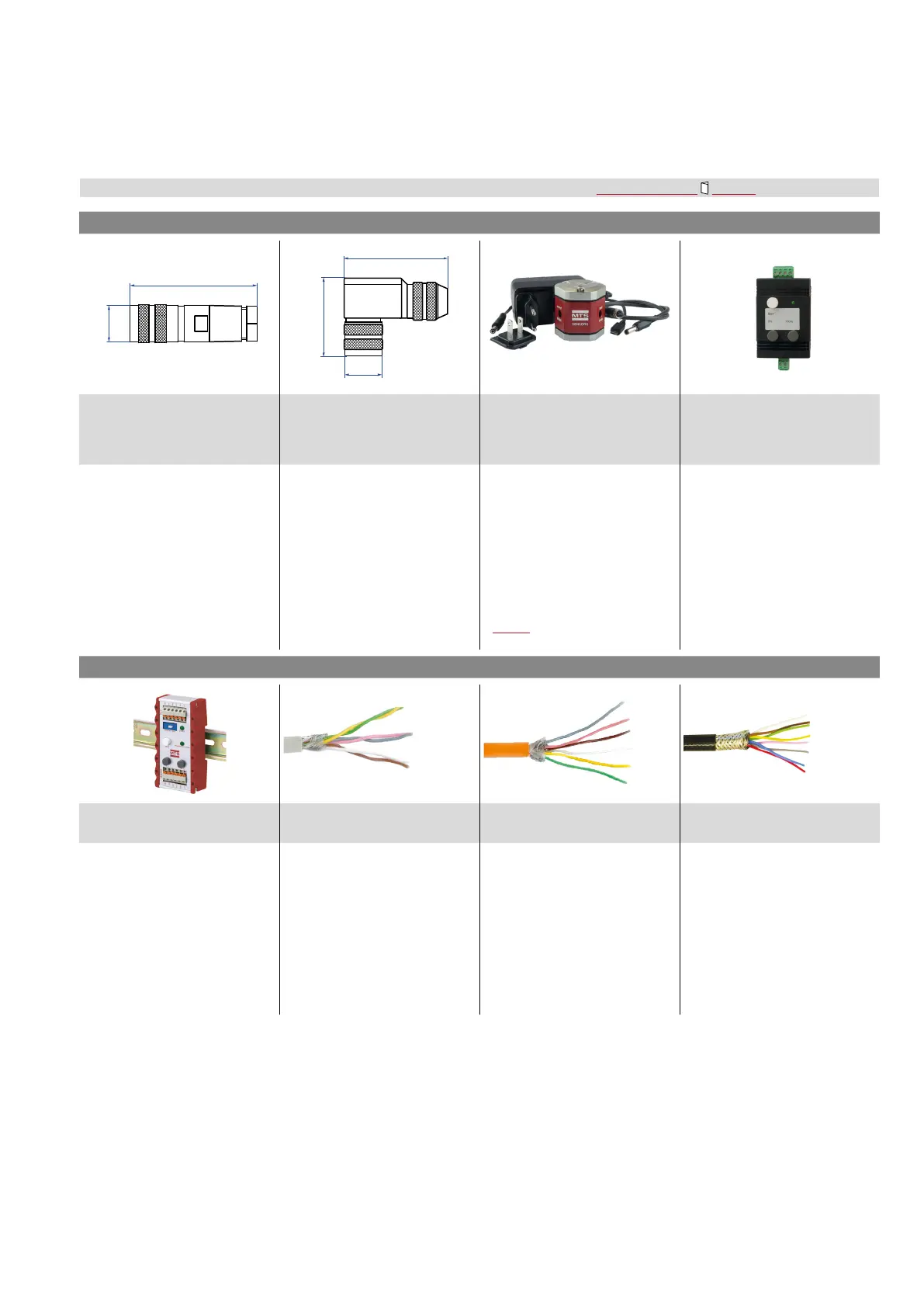

4.9 Frequently ordered accessories for Analog output – Additional options available in our Accessories Guide
551 444
Cable connectors* Programming tools
Ø 17.3 (Ø 0.68)
60.5
(2.38)
19.5
(0.77)
38
(1.5)
54
(2.13)
M16 female connector (6 pin), straight
Part no. 370 423
M16 female connector (6 pin), angled
Part no. 370 460
TempoLink kit for Temposonics
®
R-Series V
Part no. TL-1-0-AD60 (for D60)
Part no. TL-1-0-AS00 (for cable outlet)
Hand programmer for analog output
Part no. 253 124
Material: Zinc nickel plated
Termination: Solder
Cable Ø: 6…8 mm (0.24…0.31 in.)
Operating temperature:
−40…+100 °C (−40…+212 °F)
Ingress protection: IP65/IP67
(correctly  tted)
Fastening torque: 0.6 Nm
Material: Zinc nickel plated
Termination: Solder
Cable Ø: 6…8 mm (0.24…0.31 in.)
Wire: 0.75 mm² (20 AWG)
Operating temperature:
−40…+95 °C (−40…+203 °F)
Ingress protection: IP67 (correctly  tted)
Fastening torque: 0.6 Nm
• Connect wirelessly via Wi-Fi enabled
device or via USB with the diagnostic
tool
• Simple connectivity to the sensor
via 24 VDC power line (permissible
cable length: 30 m)
• User friendly interface for mobile
devices and desktop computers
• See product brief “TempoLink
smart assistant” (document part no.:
551976) for further information
Easy teach-in-setups of stroke length
and direction on desired zero / span
positions. For sensors with 1 magnet.
Programming tool Cables
Cabinet programmer for analog output
Part no. 253 408
PVC cable
Part no. 530 032
PUR cable
Part no. 530 052
Tefl on
®
cable
Part no. 530 112
Features snap-in mounting on
standard DIN rail (35 mm). This
programmer can be permanently
mounted in a control cabinet and
includes a program / run switch.
For sensors with 1 magnet.
Material: PVC jacket; gray
Features: Twisted pair, shielded, fl exible
Cable Ø: 6 mm (0.23 in.)
Cross section: 3 × 2 × 0.14 mm
2
Bending radius: 10 × D
( xed installation)
Operating temperature:
−40…+105 °C (−40…+221 °F)
Material: PUR jacket; orange
Features: Twisted pair, shielded,
highly fl exible, halogen free, energy
chain capable, mostly oil & fl ame
resistant
Cable Ø: 6.4 mm (0.25 in.)
Cross section: 3 × 2 × 0.25 mm
2
Bending radius: 5 × D
( xed installation)
Operating temperature:
−30…+80 °C (−22…+176 °F)
Material: Tefl on
®
jacket; black
Features: Twisted pair, shielded, fl exible,
high thermal resistance, mostly oil &
acid resistant
Cable Ø: 7.6 mm (0.3 in.)
Cross section: 4 × 2 × 0.25 mm²
Bending radius: 8 – 10 × D
( xed installation)
Operating temperature:
−100…+180 °C (−148…+356 °F)
*/
Follow the manufacturer‘s mounting instructions
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
