Temposonics
®
R-Series V Analog
Operation Manual
I 9 I
3.3 Nameplate
3.4 Approvals
certified
EAC certified
UL certified
3.5 Scope of delivery
RP5 (profile sensor):
Sensor
Position magnet (not valid for RP5 with design »O«)
2 mounting clamps up to 1250 mm (50 in.) stroke length +
1 mounting clamp for each 500 mm (20 in.) additional stroke length
RH5 (rod sensor):
RH5-B: Base unit (without flange/rod assembly),
3 socket screws M4
RH5-J/M/S/T: Sensor, O-ring
RH5MA0250M01D601A100
4…20 mA
S/N: 12345678
01MAR2020
Order code
Analog output
Date of ProductionSerial number

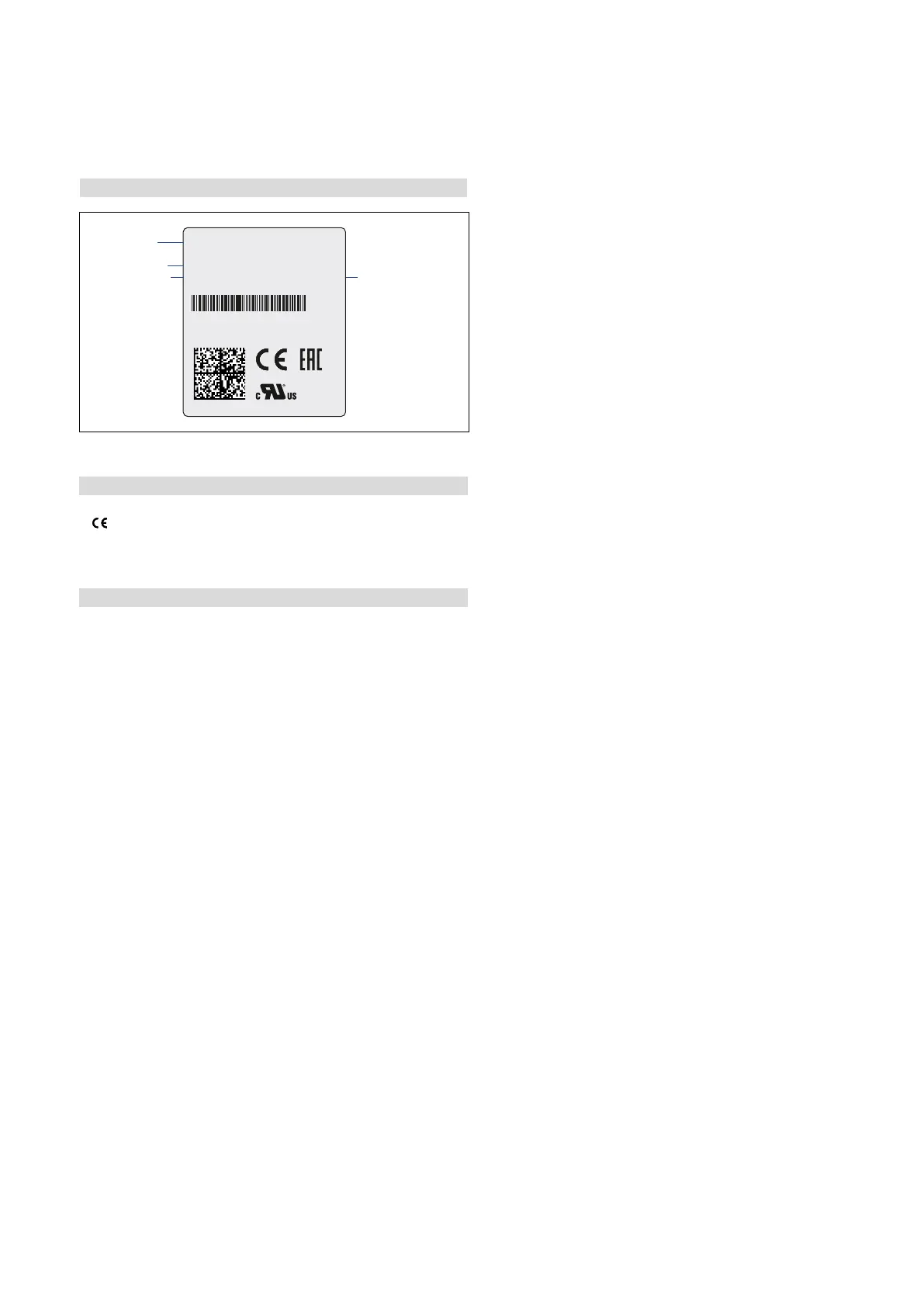

Fig. 1: Example of nameplate of a R-Series V RH5 sensor with Analog output
