4.3 Styles and installation of Temposonics
®
RH5

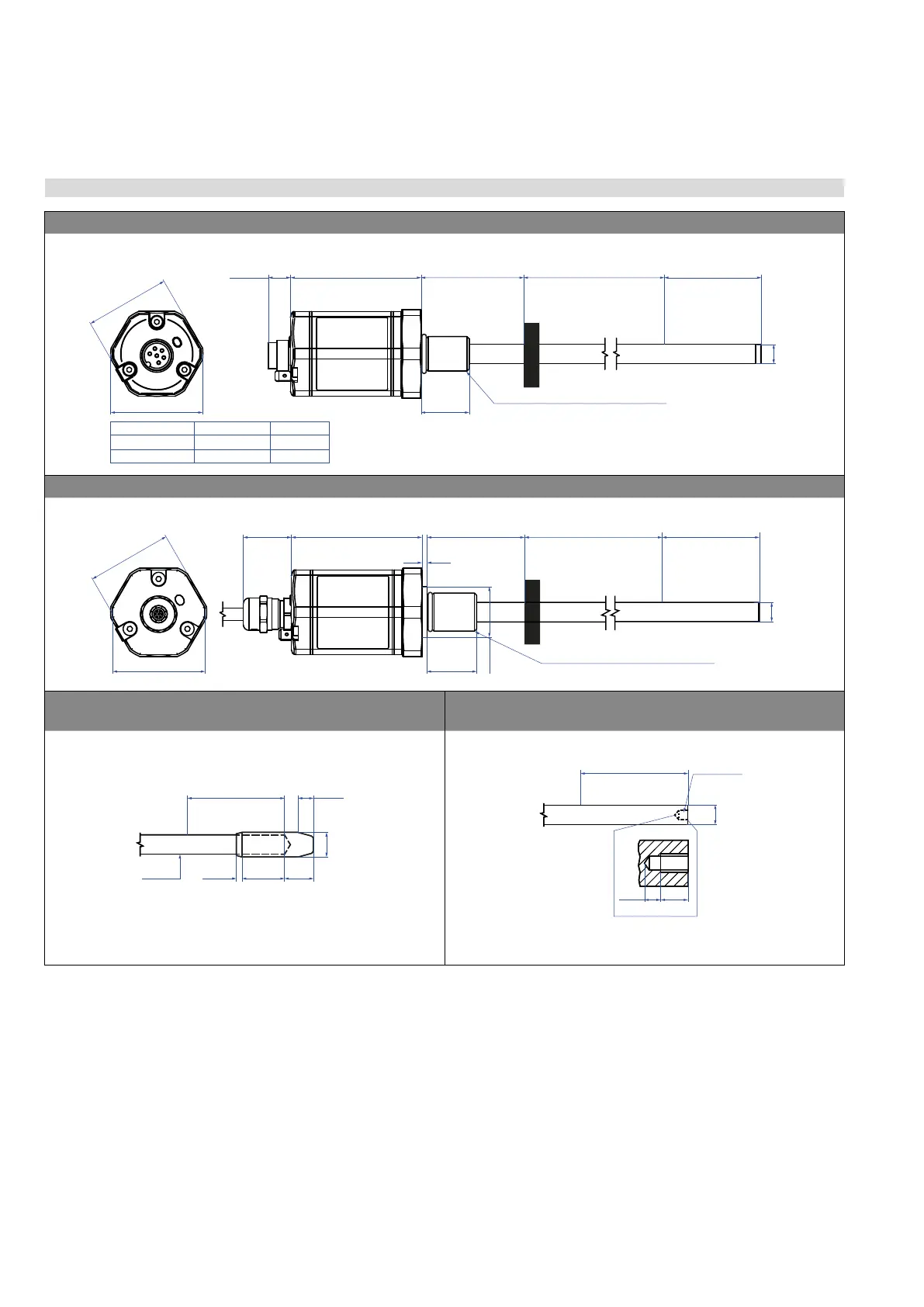

Fig. 6: Temposonics
®
RH5 with ring magnet, part 1
RH5-M/S-A/-V – RH5 with threaded fl ange M18×1.5-6g or ¾"-16 UNF-3A, example: Connection type D60 (connector output)
a
b
Sensor electronics housing
68
(2.68)
Null zone
51
(2.01)
25
(0.98)
Threaded flange »M«: M18×1.5-6g
Threaded flange »S«: ¾"-16 UNF-3A
Magnet
Dead zone
63.5/66*
(2.5/2.6*)
Stroke length
25…7620
(1…300)
Ø 10 ±0.13
(Ø 0.39 ±0.01)
* Stroke length > 5000 mm (196.9 in.)
11.7
(0.46)
Threaded flange
»M«
»S«
a b
A/F 46 53 (2.09)
A/F 44.5 (1.75) 51.3 (2.02)
RH5-T-A/-V – RH5 with threaded fl ange ¾"-16 UNF-3A with raised-face, example: Connection type HXX/RXX/TXX (cable output)
A/F 44.5
(A/F 1.75)
51.3
(2.02)
Ø 25.4
(Ø 1)
Threaded flange »T«: ¾"-16 UNF-3A
Stroke length
25…7620
(1…300)
Sensor electronics housing
65.5
(2.58)
Null zone
51
(2.01)
Magnet
* Stroke length > 5000 mm (196.9 in.)
Dead zone
63.5/66*
(2.5/2.6*)
Ø 10 ±0.13
(Ø 0.39 ±0.01)
2.5
(0.1)
25
(0.98)
25
(0.98)
Mechanical option »B«: Bushing on rod end for threaded fl ange
M18×1.5-6g or ¾"-16 UNF-3A
Mechanical option »M«: Thread M4 at rod end for threaded fl ange
M18×1.5-6g or ¾"-16 UNF-3A
Dead zone
63.5/66*
(2.5/2.6*)
22
(0.87)
15
(0.59)
3
(0.12)
8
(0.31)
Ø 12.8 ±0.1
(Ø 0.5 ±0.004)
Ø 10
(Ø 0.39)
* Stroke length > 5000 mm (196.9 in.)
Dead zone
70/72.5*
(2.76/2.85*)
3.5
(0.14)
6
(0.24)
Thread M4
Ø 10 ±0.13
(Ø 0.39 ±0.01)
* Stroke length > 5000 mm (196.9 in.)
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
