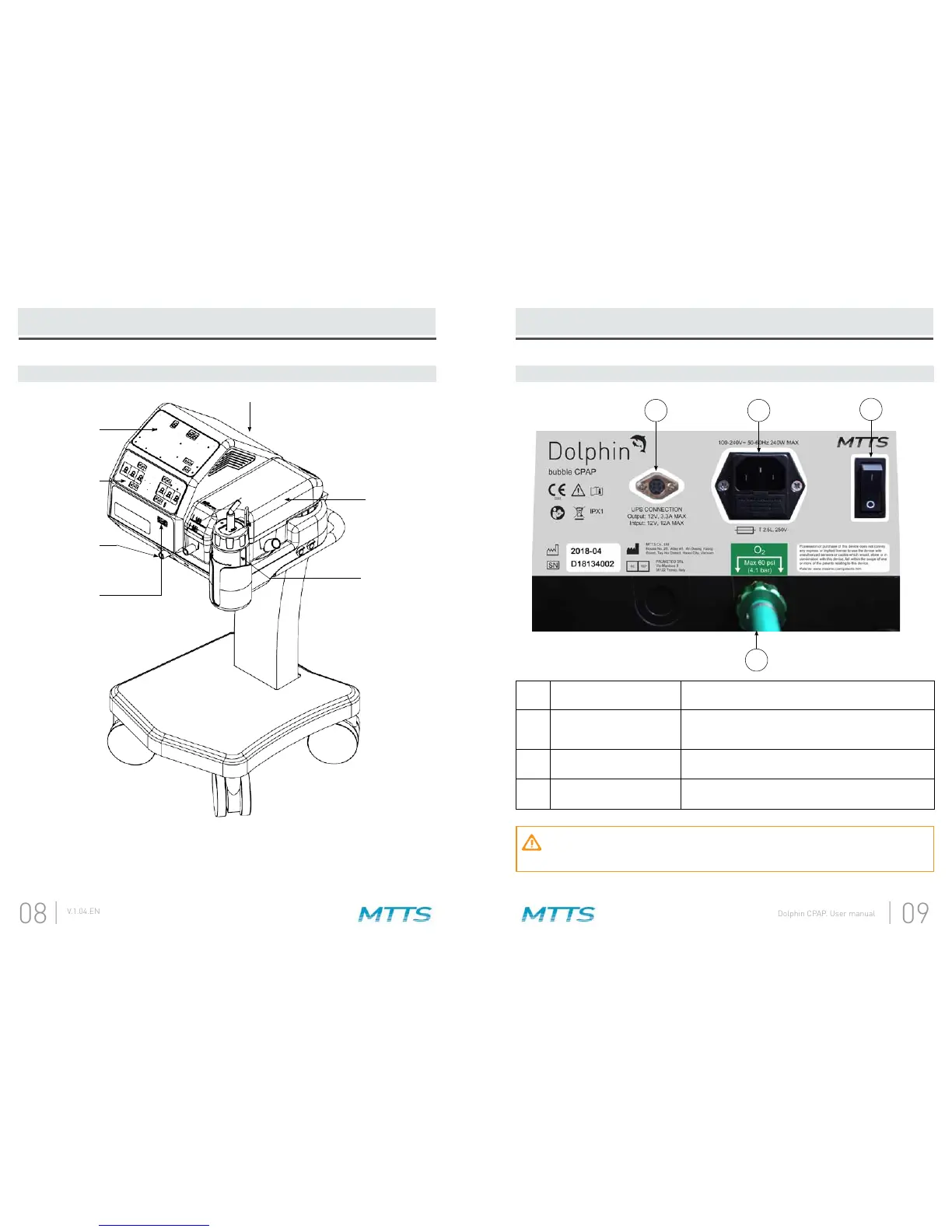

Overview
CPAP Display
Pulse Oximeter
Display
Mixed Gas Output
Masimo Patient
Cable Connector
PEEP Chamber
Back Panel
2
3
4
1 12V UPS Connector
Use this connector to connect MTTS backup 12V power
supply
2 AC Power Inlet
Use this power inlet to connect the device to mains power.
The power requirements for the device are listed on the
back panel and in the
section.
3 Mains Power Switch
This switch is used to turn the mains power to the device on
and off. The switch is pictured in the off position.
4 Oxygen Inlet
Use this CGA 1240 oxygen inlet to connect a
compressed oxygen source to the device.
1
sources.
