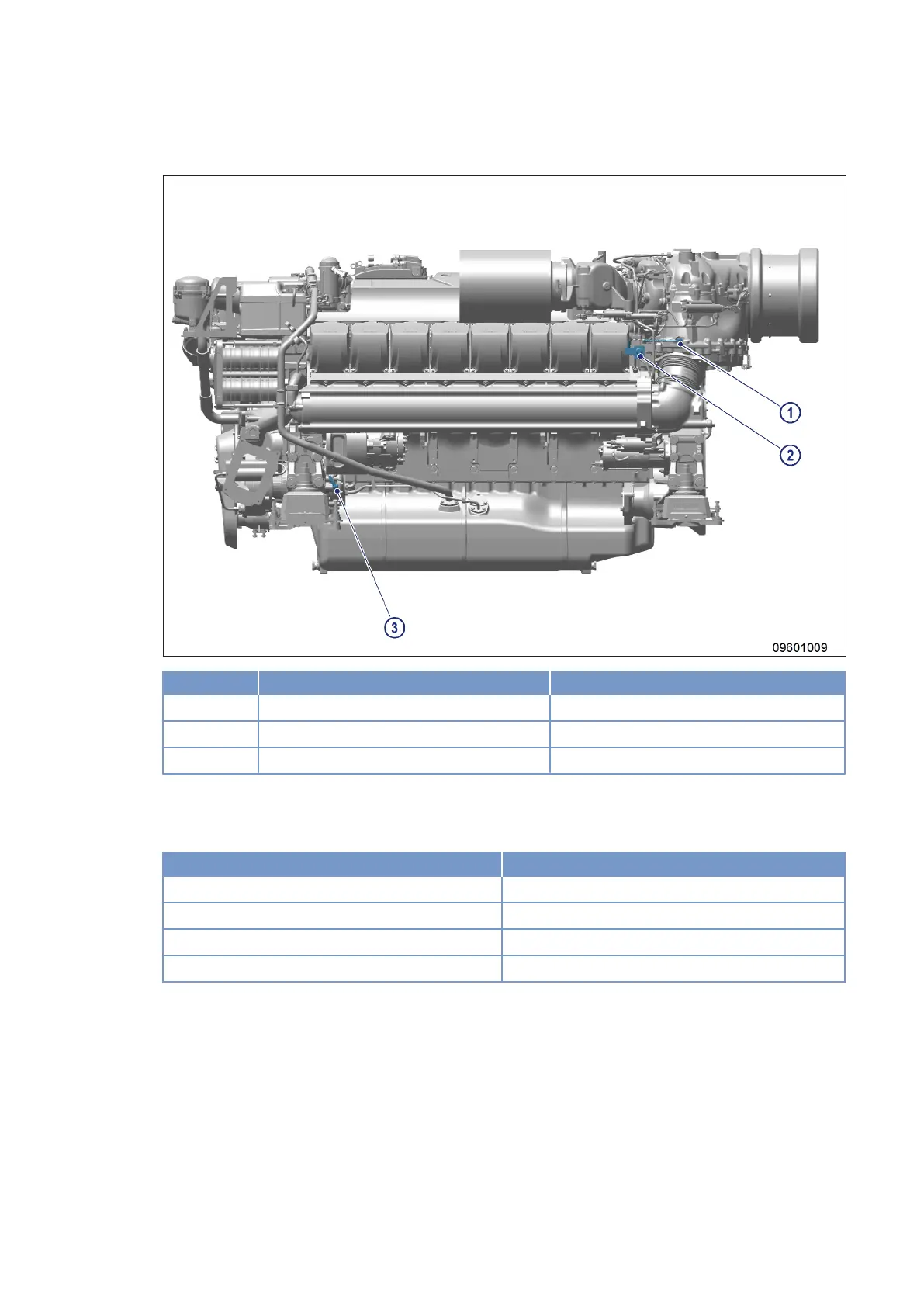

Engine, left side
Item Designation Monitoring of
1 B4.21 Exhaust gas temperature, A-side
2 Y27.1 4-2-directional control valve, A-side
3 B54 (optional) Lube oil pressure, replenishment pump
System sensors
These sensors are fitted outside the engine.
Designation Monitoring of
B19 Starting-air pressure
B70 Fuel prefilter water level
B41 Exhaust back pressure
S37 Start interlock, switching status
32 | General Information | M015650/06E 2018-05
