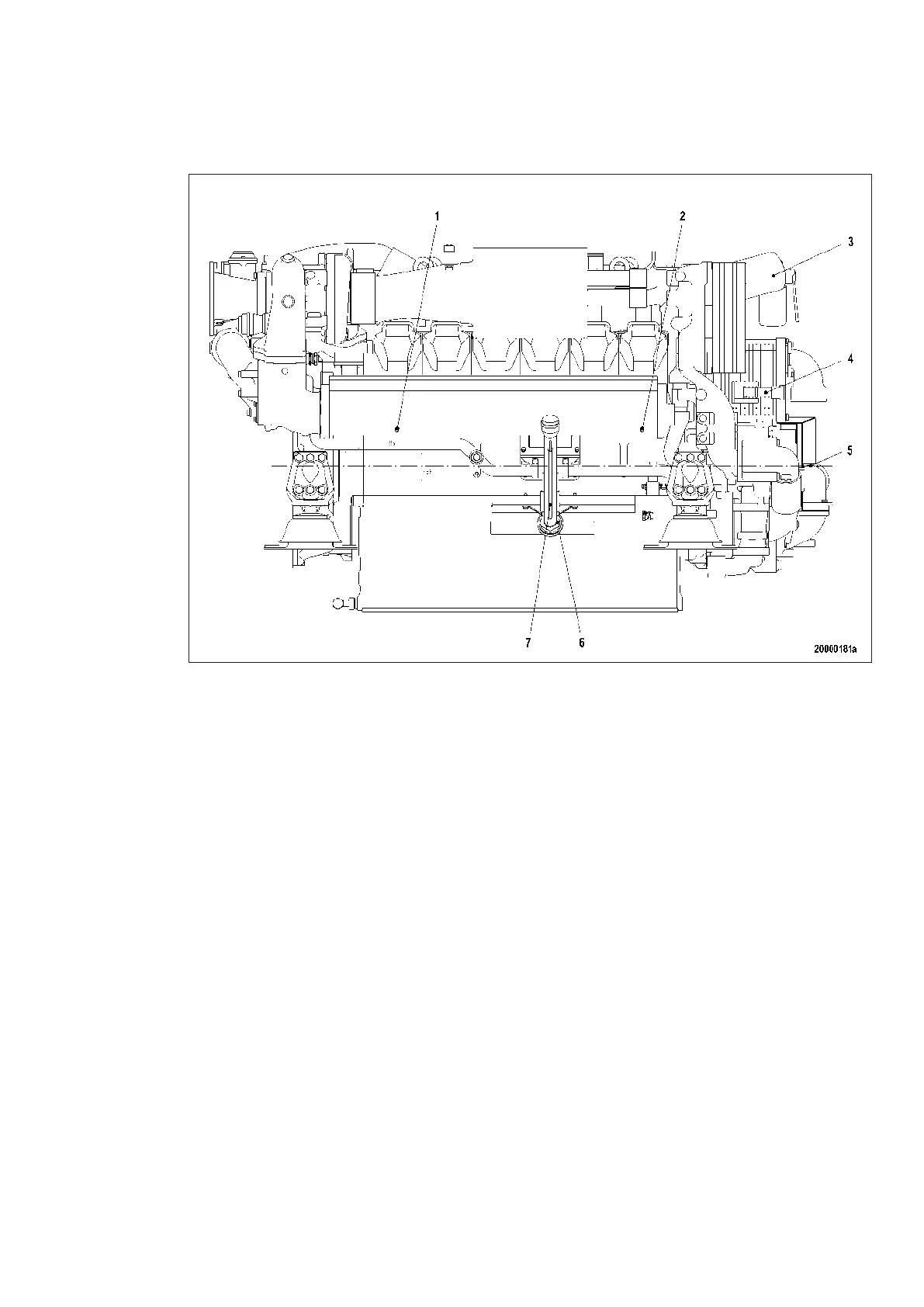

Right side
1 Engine coolant drain plug
2 Engine coolant drain plug
3 Engine oil filter
4 Fuel priming pump
5 Raw water pump filling
plug
6 Oil filler neck (connection
left or right engine side
optional)
7 Oil dipstick (connection
left or right engine side
optional)
4 Leak-off fuel tank
MW15407/14E 2012-02 | Task Description | 129
TIM-ID: 0000006697 - 002
