Adjusting belt tension
1. Hold adjustment lever (2) at square (5).
2. Rotate adjusting lever until drive belt (4) is released.
3. Loosen screws (1) and (3).
4. Use assembly device to adjust distance (A) by turning adjustment lever (2).
5. Tighten screws (1) and (3).
6. Measure distance (A) with assembly device.

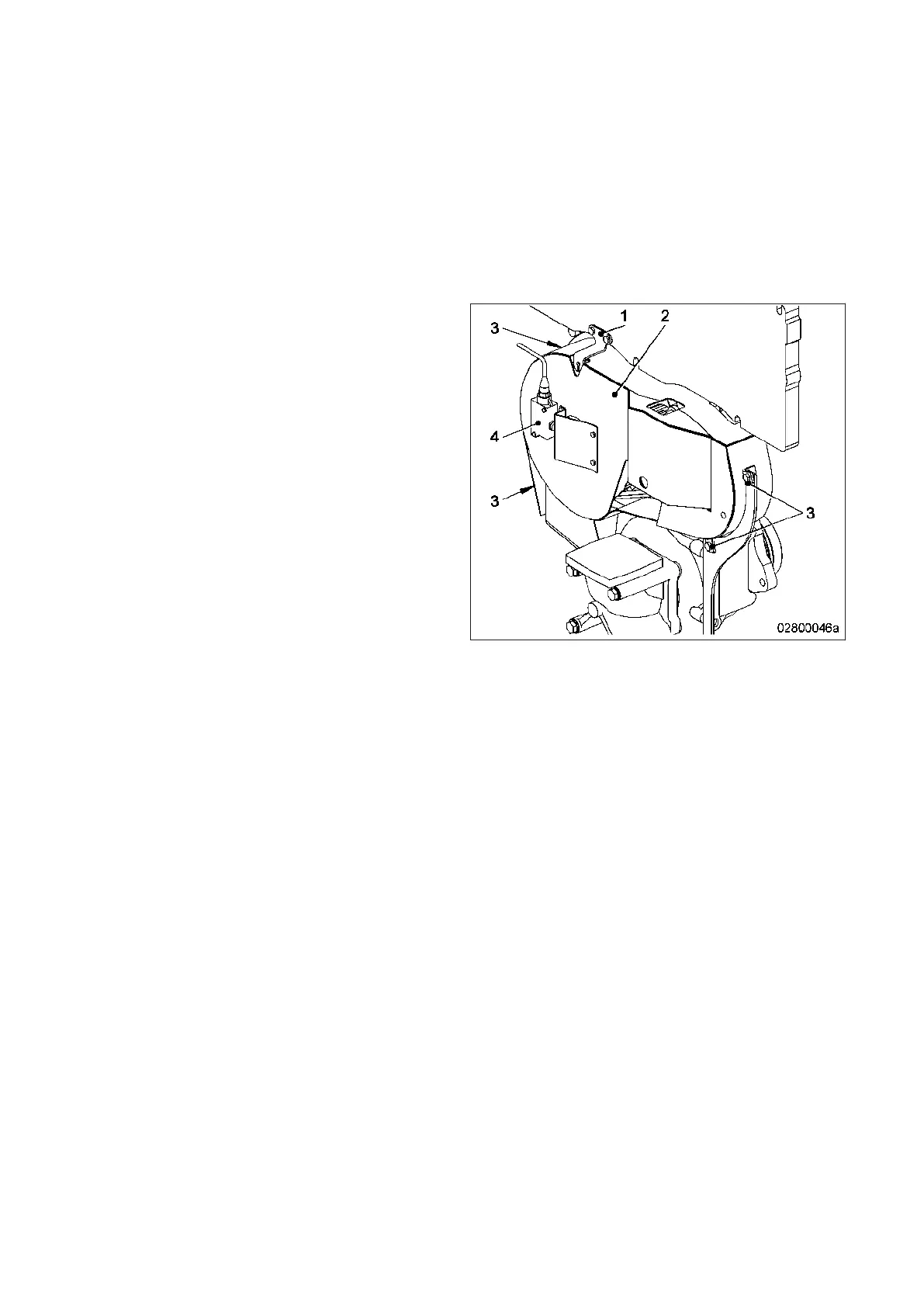

Final steps
1. Install protective cover (2).
2. Install securing screws (3) of protective cov‐
er (2).
3. Install indicator (1).
4. Install limit switch (4).
140 | Task Description | MW15407/14E 2012-02
TIM-ID: 0000007388 - 004
