7.4.2 Cylinder head cover – Removal and installation
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 6-50 Nm
F30027336 1
Ratchet adapter
F30027340 1
Gasket
(→ Spare Parts Catalog)
Preparatory steps
1. Remove air filter (→ Page 113).
2. Remove mounting bracket with control valves for exhaust turbocharger and air flap switching.

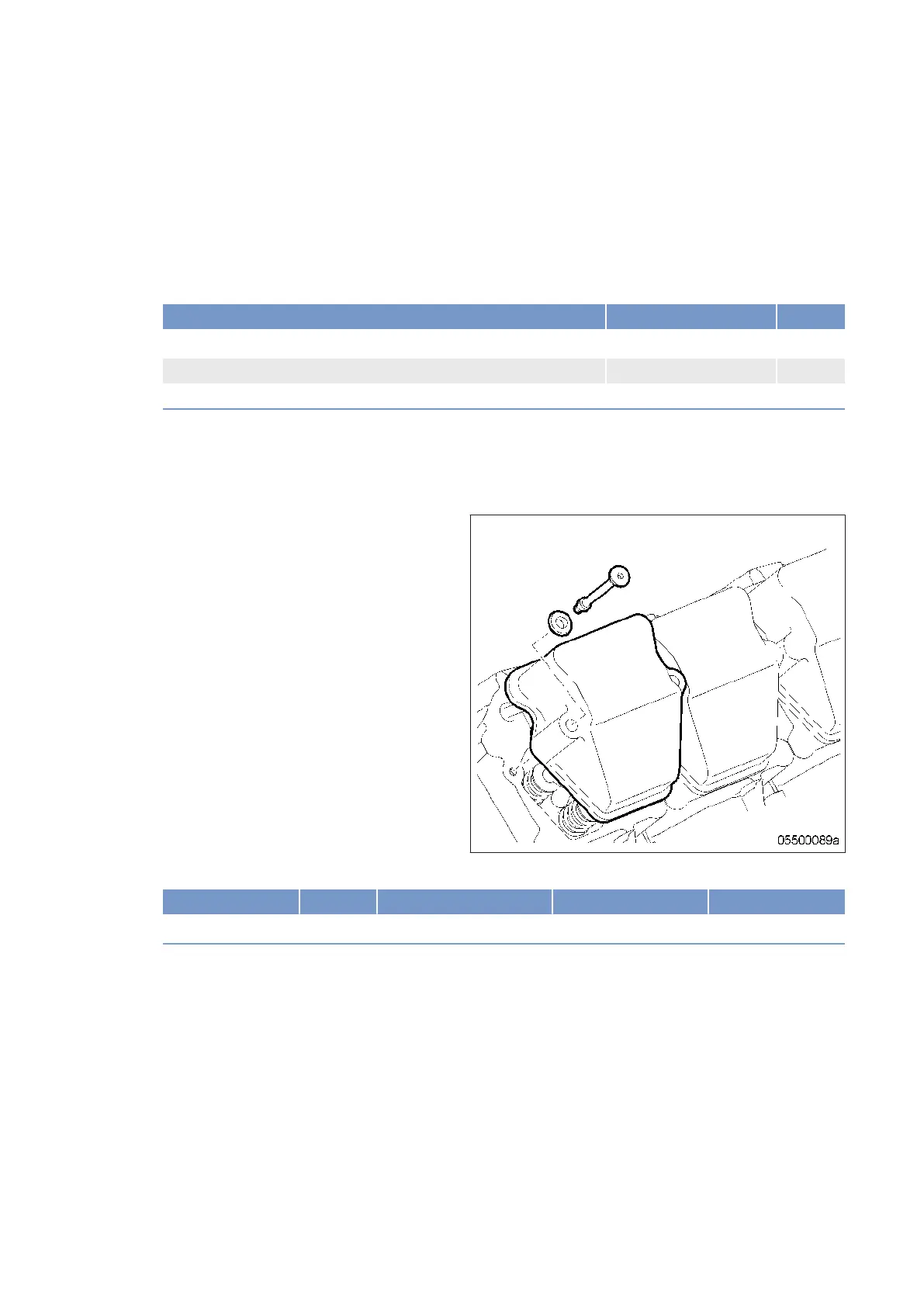

Cylinder head cover – Removal
and installation
1. Remove screws.
2. Remove cylinder head cover with gasket
from cylinder head.
3. Clean installation surface.
4. Check condition of profile gasket in cylinder
head cover.
5. Replace damaged gaskets.
6. Place cylinder head covers onto crankcase and tighten screws to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw Tightening torque 20 Nm
Final steps
1. Install mounting bracket with control valves for exhaust turbocharger and air flap control.
2. Install air filter (→ Page 113).
88 | Task Description | MW15407/14E 2012-02
