Removing injector

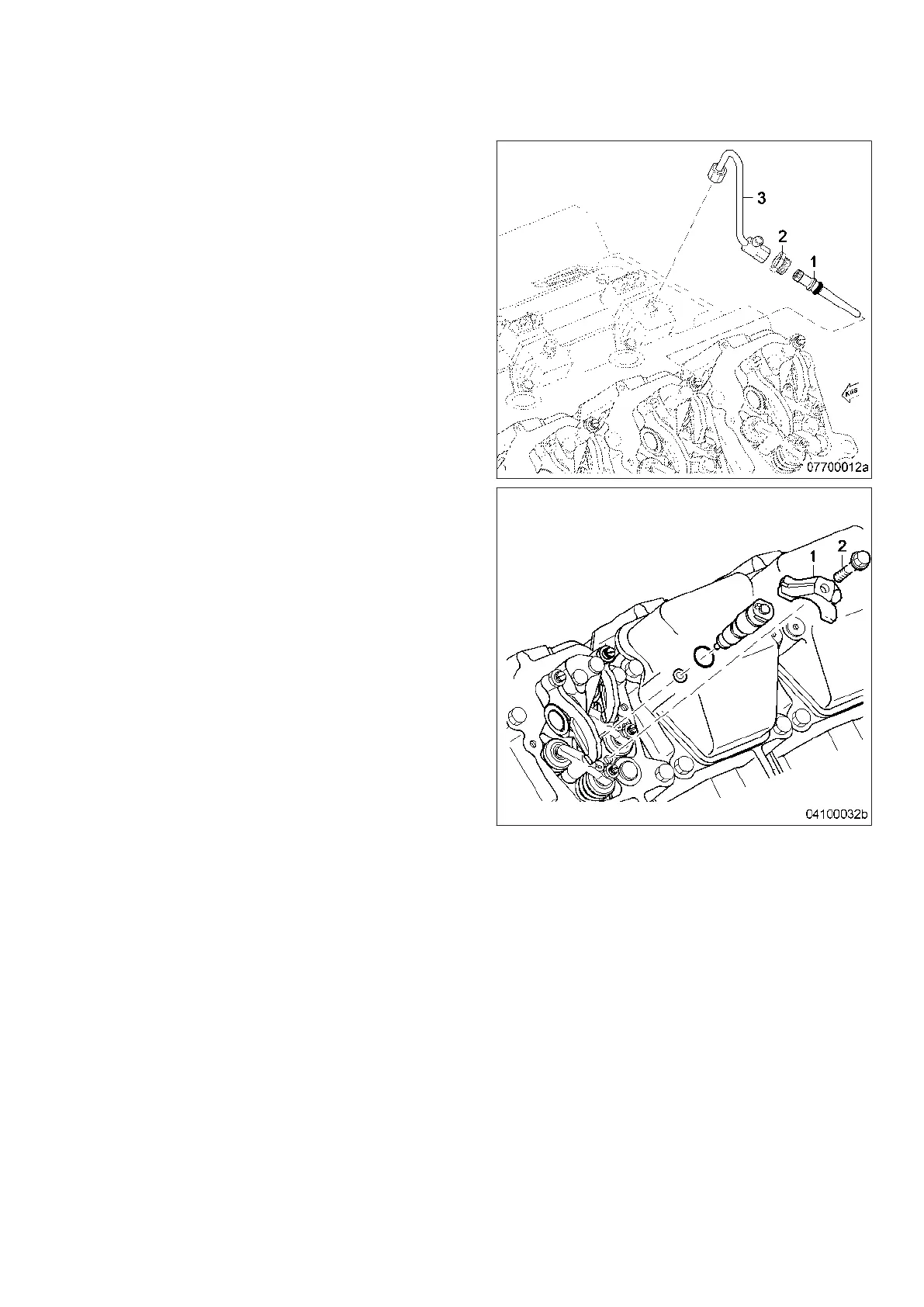

1. Remove leak-off-fuel lines.
2. Remove fuel line (3).
3. Remove thrust screw (2).
4. Withdraw pressure pipe neck (1).
5. Extract fuel from the exposed bores using
the suction device.
6. Remove screw (2).
7. Take off clamp (1).
8. Screw puller into injector.
9. Remove injector with puller.
10. Remove injector sealing ring using a self-
made hook.
11. After removal, seal all openings with suita‐
ble covers.
